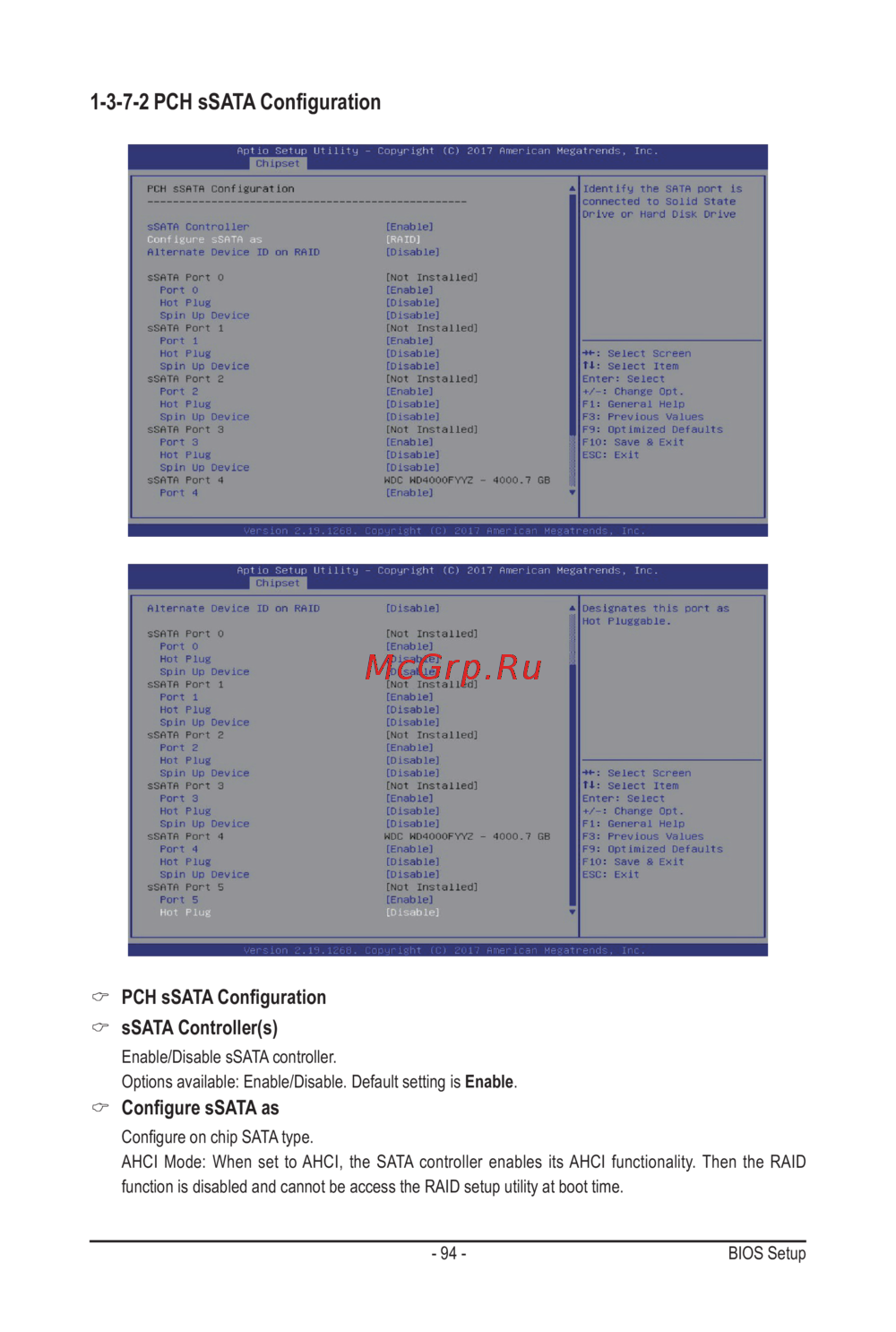

- 94 - BIOS Setup

1-3-7-2PCHsSATAConguration

 PCHsSATAConguration

sSATA Controller(s)

Enable/Disable sSATA controller.

Options available: Enable/Disable. Default setting is Enable.

 ConguresSATAas

Congure on chip SATA type.

AHCI Mode: When set to AHCI, the SATA controller enables its AHCI functionality. Then the RAID

function is disabled and cannot be access the RAID setup utility at boot time.
