Gigabyte H261-3C0 (rev. 100) [96/123] Miscellaneousconfiguration active video

- 96 - BIOS Setup

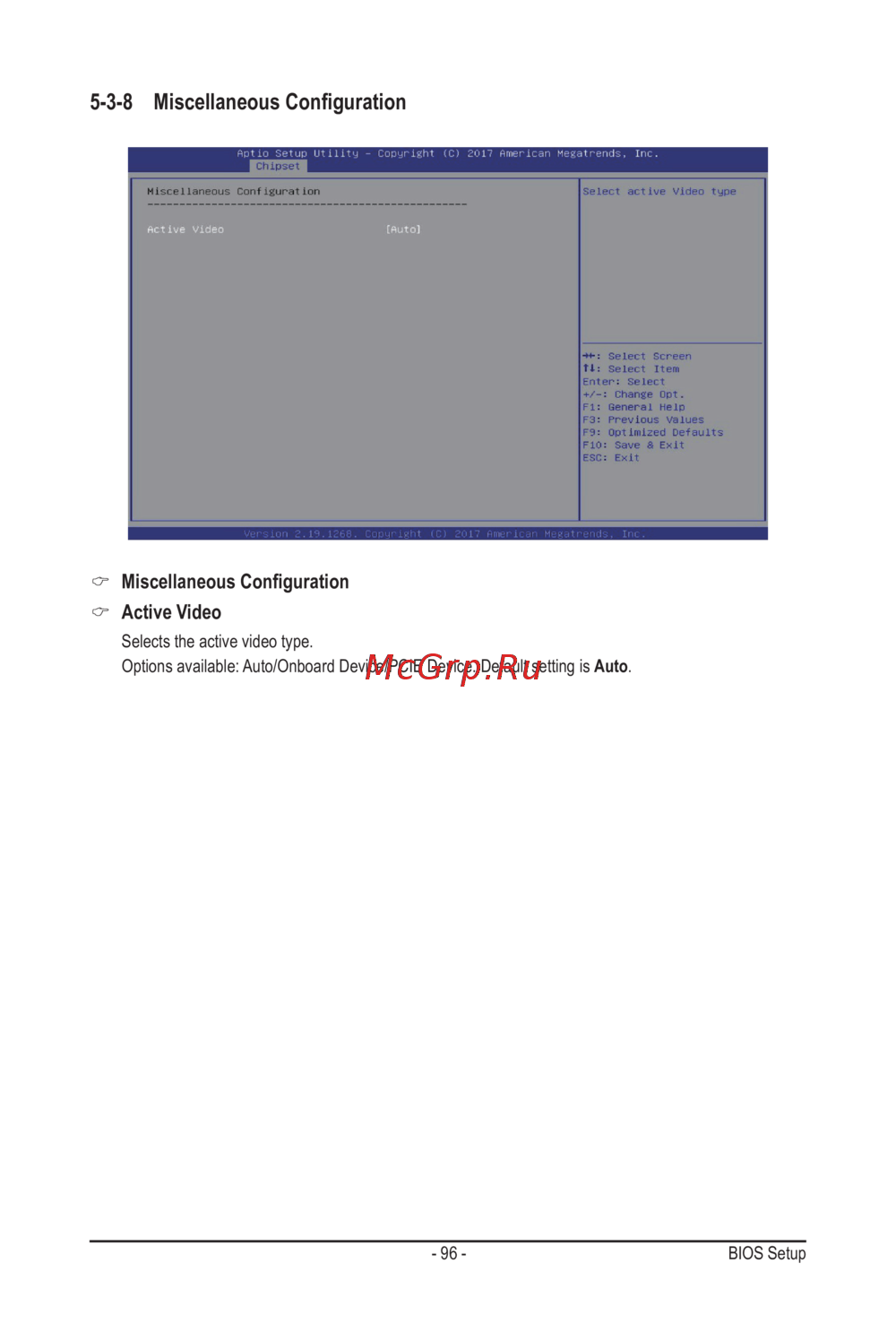

5-3-8 MiscellaneousConguration

 MiscellaneousConguration

Active Video

Selects the active video type.

Options available: Auto/Onboard Device/PCIE Device. Default setting is Auto.
