BIOS Setup - 99 -

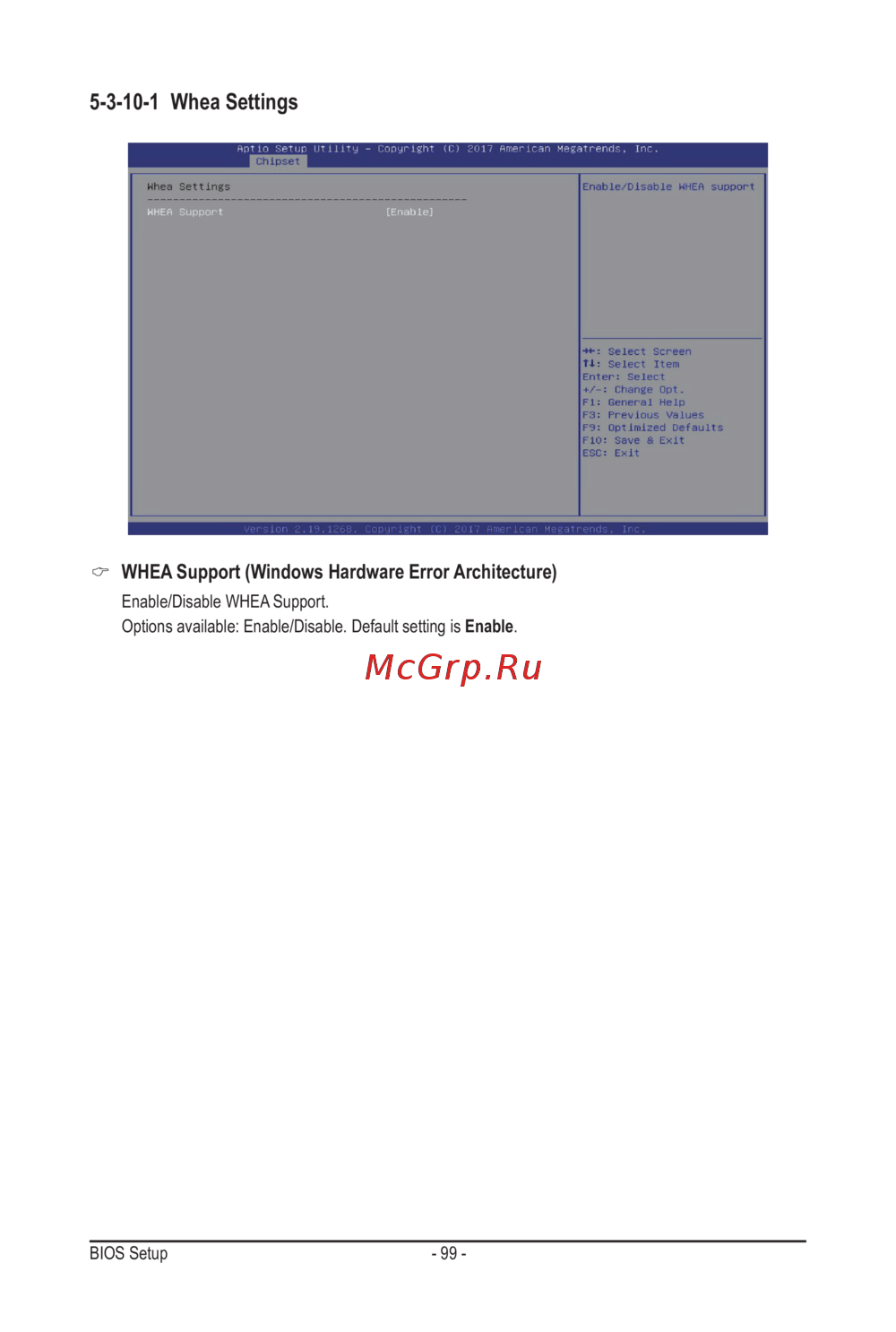

5-3-10-1 Whea Settings

WHEA Support (Windows Hardware Error Architecture)

Enable/Disable WHEA Support.

Options available: Enable/Disable. Default setting is Enable.
