GSM Server - 20 -

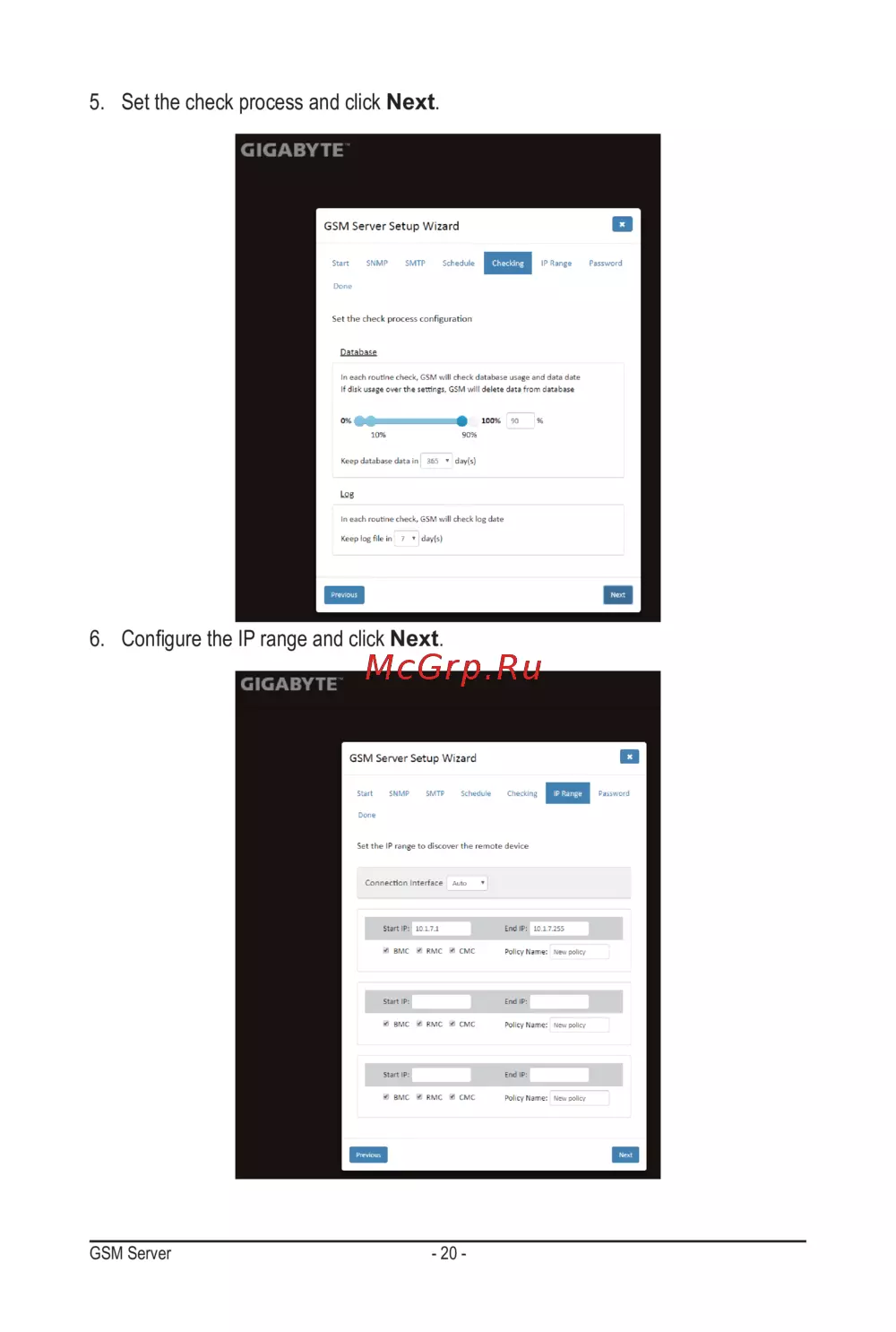

5. Set the check process and click Next.

6. ConguretheIPrangeandclickNext.
