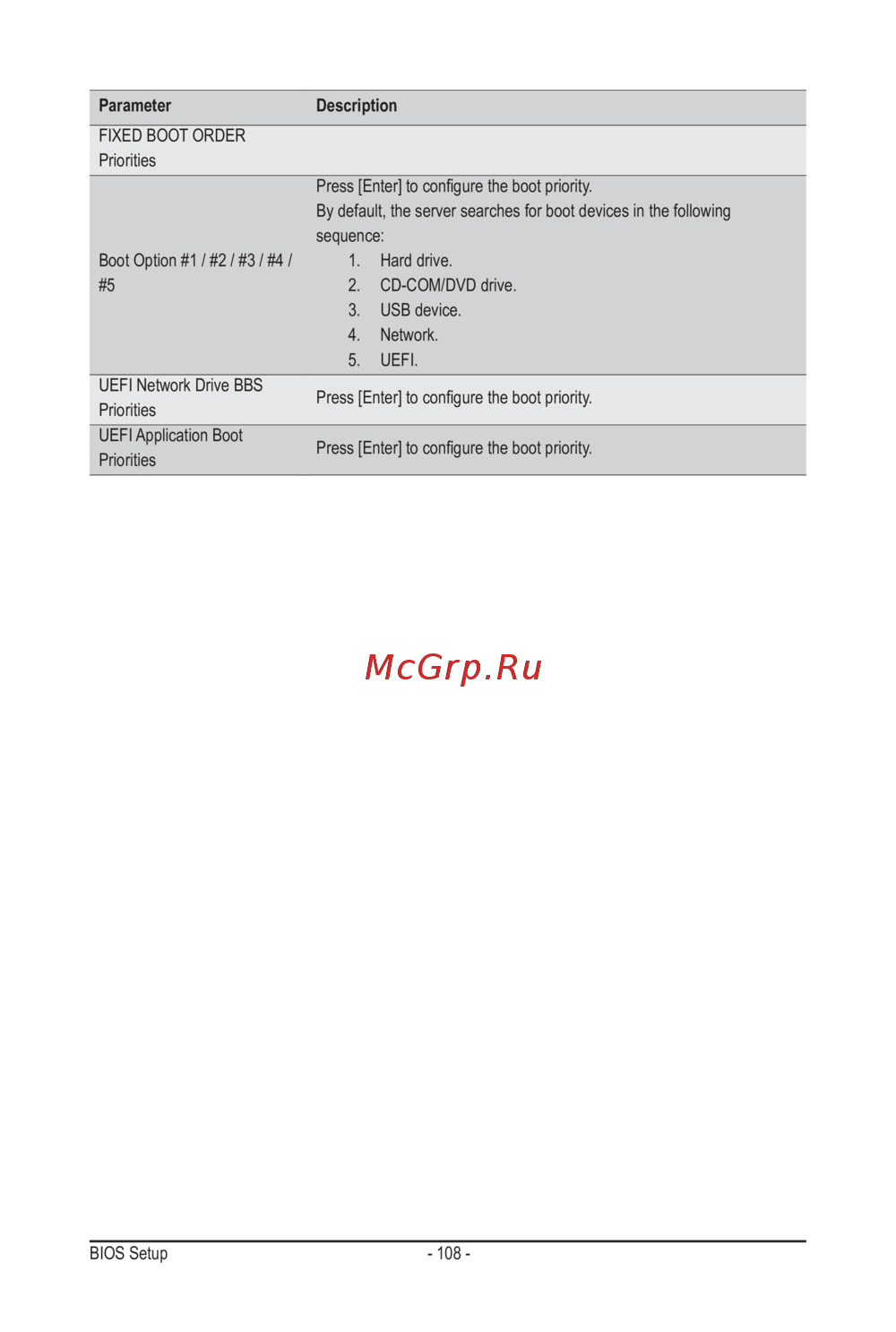

BIOS Setup - 108 -

Parameter Description

FIXED BOOT ORDER

Priorities

Boot Option #1 / #2 / #3 / #4 /

Press [Enter] to congure the boot priority.

By default, the server searches for boot devices in the following

sequence:

1. Hard drive.

2. CD-COM/DVD drive.

3. USB device.

4. Network.

5. UEFI.

UEFI Network Drive BBS

Priorities

Press [Enter] to congure the boot priority.

UEFI Application Boot

Priorities

Press [Enter] to congure the boot priority.
