- 113 - BIOS Setup

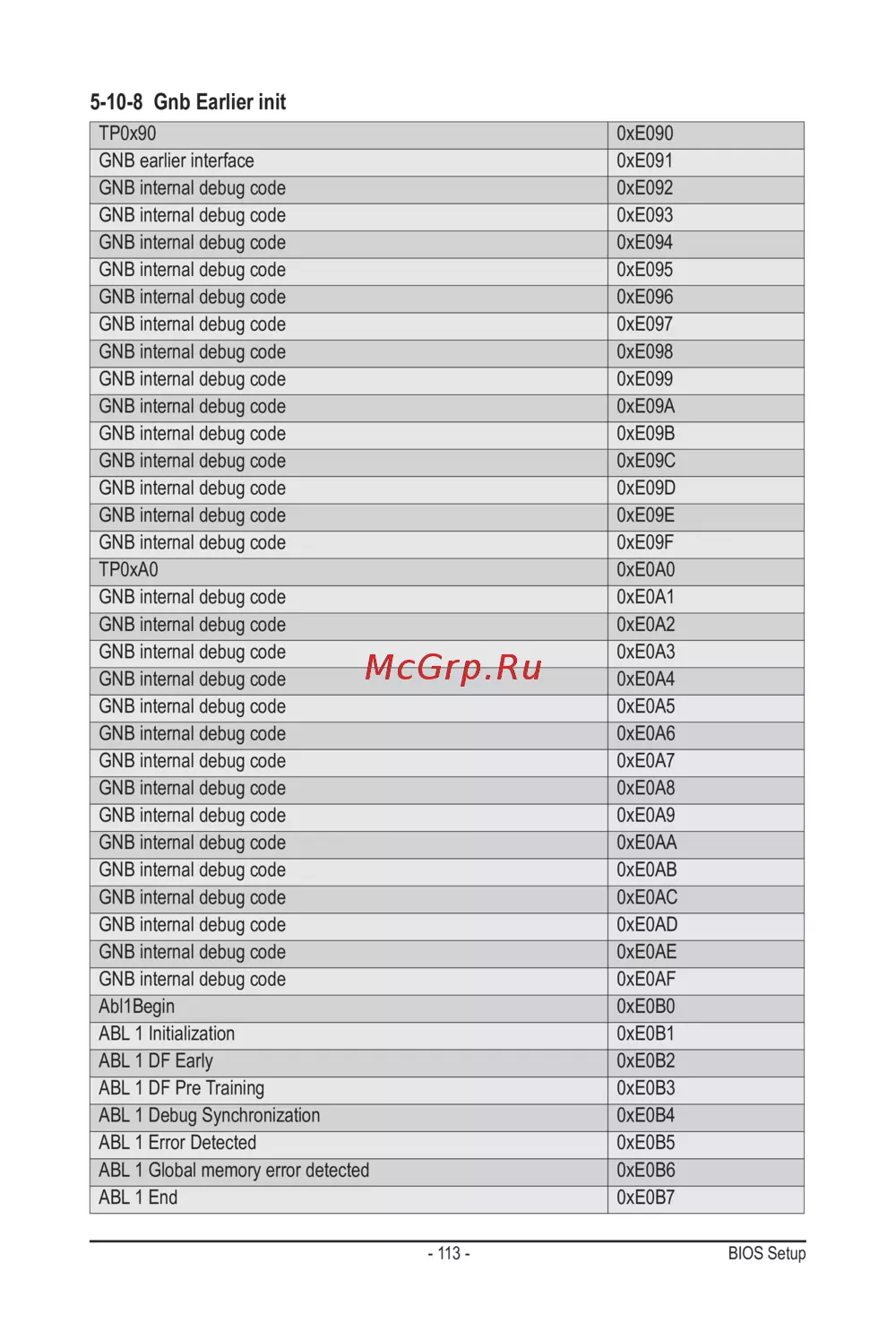

5-10-8 Gnb Earlier init
TP0x90 0xE090
GNB earlier interface 0xE091
GNB internal debug code 0xE092
GNB internal debug code 0xE093
GNB internal debug code 0xE094
GNB internal debug code 0xE095
GNB internal debug code 0xE096
GNB internal debug code 0xE097
GNB internal debug code 0xE098
GNB internal debug code 0xE099
GNB internal debug code 0xE09A
GNB internal debug code 0xE09B
GNB internal debug code 0xE09C
GNB internal debug code 0xE09D
GNB internal debug code 0xE09E
GNB internal debug code 0xE09F
TP0xA0 0xE0A0
GNB internal debug code 0xE0A1
GNB internal debug code 0xE0A2
GNB internal debug code 0xE0A3
GNB internal debug code 0xE0A4
GNB internal debug code 0xE0A5
GNB internal debug code 0xE0A6
GNB internal debug code 0xE0A7
GNB internal debug code 0xE0A8
GNB internal debug code 0xE0A9
GNB internal debug code 0xE0AA
GNB internal debug code 0xE0AB
GNB internal debug code 0xE0AC
GNB internal debug code 0xE0AD
GNB internal debug code 0xE0AE
GNB internal debug code 0xE0AF
Abl1Begin 0xE0B0
ABL 1 Initialization 0xE0B1
ABL 1 DF Early 0xE0B2
ABL 1 DF Pre Training 0xE0B3
ABL 1 Debug Synchronization 0xE0B4
ABL 1 Error Detected 0xE0B5
ABL 1 Global memory error detected 0xE0B6
ABL 1 End 0xE0B7
