BIOS Setup - 120 -

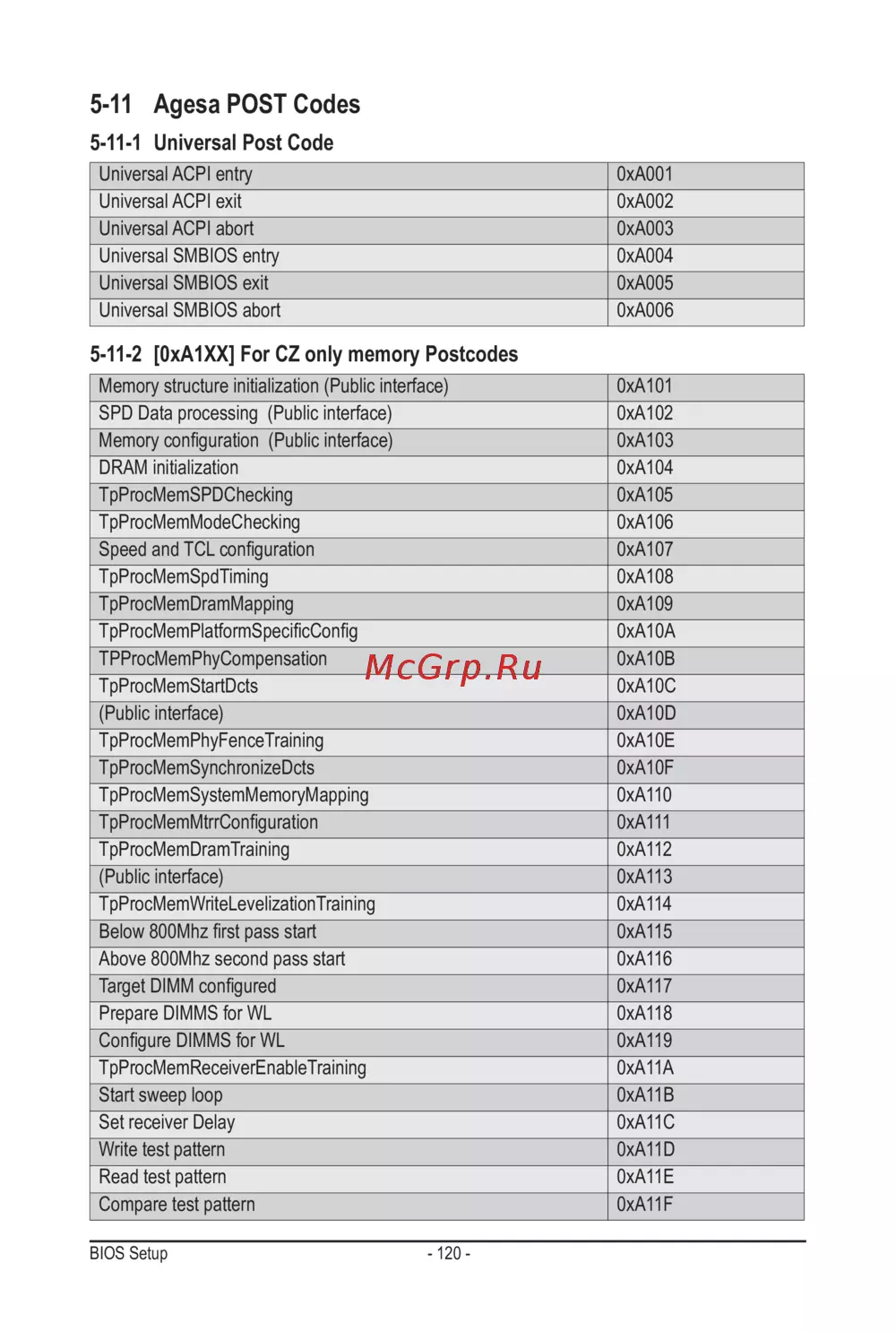

5-11 Agesa POST Codes
5-11-1 Universal Post Code
Universal ACPI entry 0xA001
Universal ACPI exit 0xA002
Universal ACPI abort 0xA003
Universal SMBIOS entry 0xA004
Universal SMBIOS exit 0xA005
Universal SMBIOS abort 0xA006
5-11-2 [0xA1XX] For CZ only memory Postcodes
Memory structure initialization (Public interface) 0xA101
SPD Data processing (Public interface) 0xA102
Memory conguration (Public interface) 0xA103
DRAM initialization 0xA104
TpProcMemSPDChecking 0xA105
TpProcMemModeChecking 0xA106
Speed and TCL conguration 0xA107
TpProcMemSpdTiming 0xA108
TpProcMemDramMapping 0xA109
TpProcMemPlatformSpecicCong 0xA10A
TPProcMemPhyCompensation 0xA10B
TpProcMemStartDcts 0xA10C
(Public interface) 0xA10D
TpProcMemPhyFenceTraining 0xA10E
TpProcMemSynchronizeDcts 0xA10F
TpProcMemSystemMemoryMapping 0xA110
TpProcMemMtrrConguration 0xA111
TpProcMemDramTraining 0xA112
(Public interface) 0xA113
TpProcMemWriteLevelizationTraining 0xA114
Below 800Mhz rst pass start 0xA115
Above 800Mhz second pass start 0xA116
Target DIMM congured 0xA117
Prepare DIMMS for WL 0xA118
Congure DIMMS for WL 0xA119
TpProcMemReceiverEnableTraining 0xA11A
Start sweep loop 0xA11B
Set receiver Delay 0xA11C
Write test pattern 0xA11D
Read test pattern 0xA11E
Compare test pattern 0xA11F
