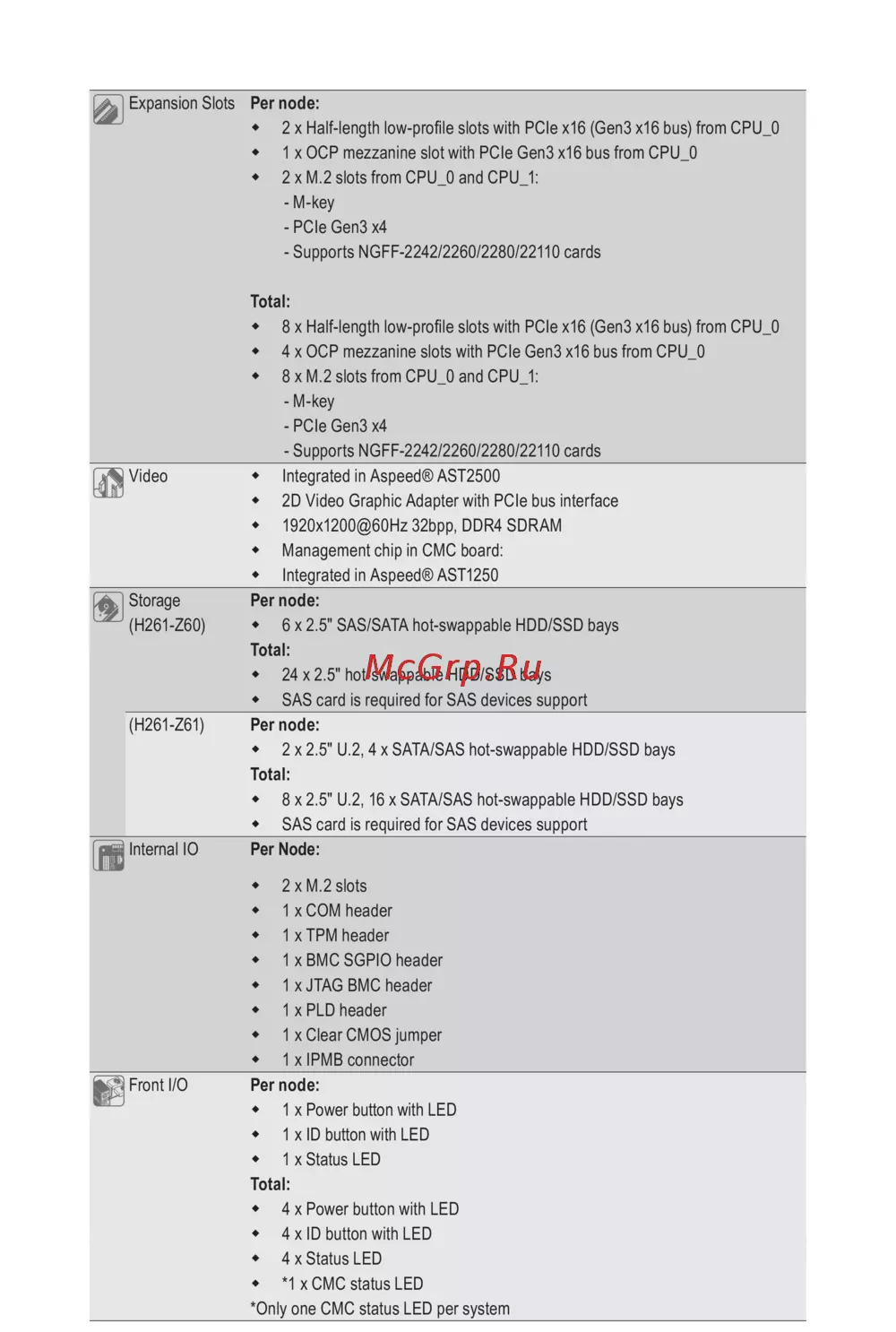

- 13 - Hardware Installation
Expansion Slots Per node:
2 x Half-length low-prole slots with PCIe x16 (Gen3 x16 bus) from CPU_0
1 x OCP mezzanine slot with PCIe Gen3 x16 bus from CPU_0
2 x M.2 slots from CPU_0 and CPU_1:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
Total:
8 x Half-length low-prole slots with PCIe x16 (Gen3 x16 bus) from CPU_0
4 x OCP mezzanine slots with PCIe Gen3 x16 bus from CPU_0
8 x M.2 slots from CPU_0 and CPU_1:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip in CMC board:
Integrated in Aspeed® AST1250
Storage
(H261-Z60)
Per node:
6 x 2.5" SAS/SATA hot-swappable HDD/SSD bays
Total:
24 x 2.5" hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
(H261-Z61) Per node:
2 x 2.5" U.2, 4 x SATA/SAS hot-swappable HDD/SSD bays
Total:
8 x 2.5" U.2, 16 x SATA/SAS hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
Internal IO Per Node:
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front I/O Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
4 x Power button with LED
4 x ID button with LED
4 x Status LED
*1 x CMC status LED
*Only one CMC status LED per system
