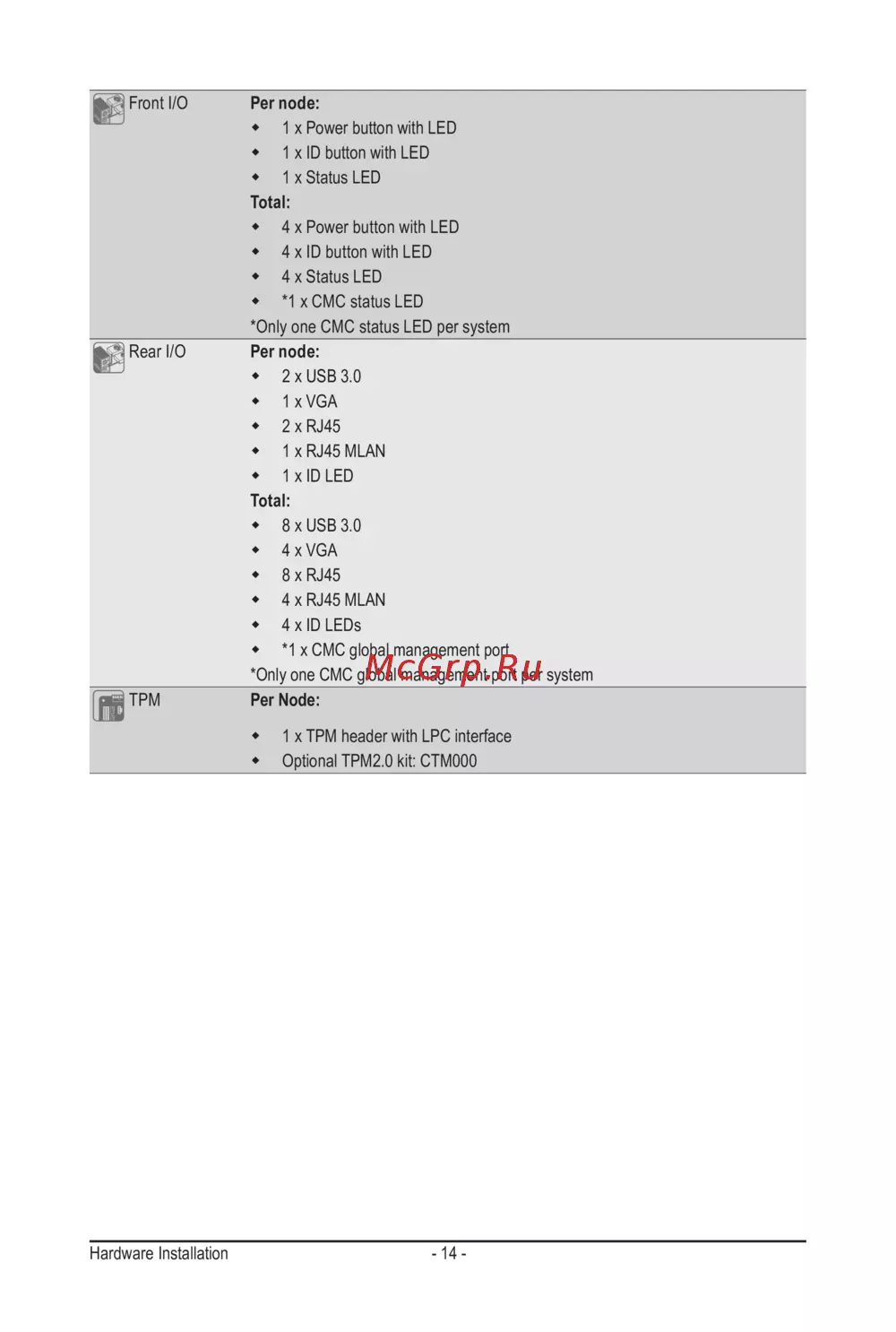

Hardware Installation - 14 -

Front I/O Per node:

 1 x Power button with LED

 1 x ID button with LED

 1 x Status LED

Total:

 4 x Power button with LED

 4 x ID button with LED

 4 x Status LED

 *1 x CMC status LED

*Only one CMC status LED per system

Rear I/O Per node:

 2 x USB 3.0

 1 x VGA

 2 x RJ45

 1 x RJ45 MLAN

 1 x ID LED

Total:

 8 x USB 3.0

 4 x VGA

 8 x RJ45

 4 x RJ45 MLAN

 4 x ID LEDs

 *1 x CMC global management port

*Only one CMC global management port per system

TPM Per Node:

 1 x TPM header with LPC interface

 Optional TPM2.0 kit: CTM000
