- 41 - System Hardware Installation

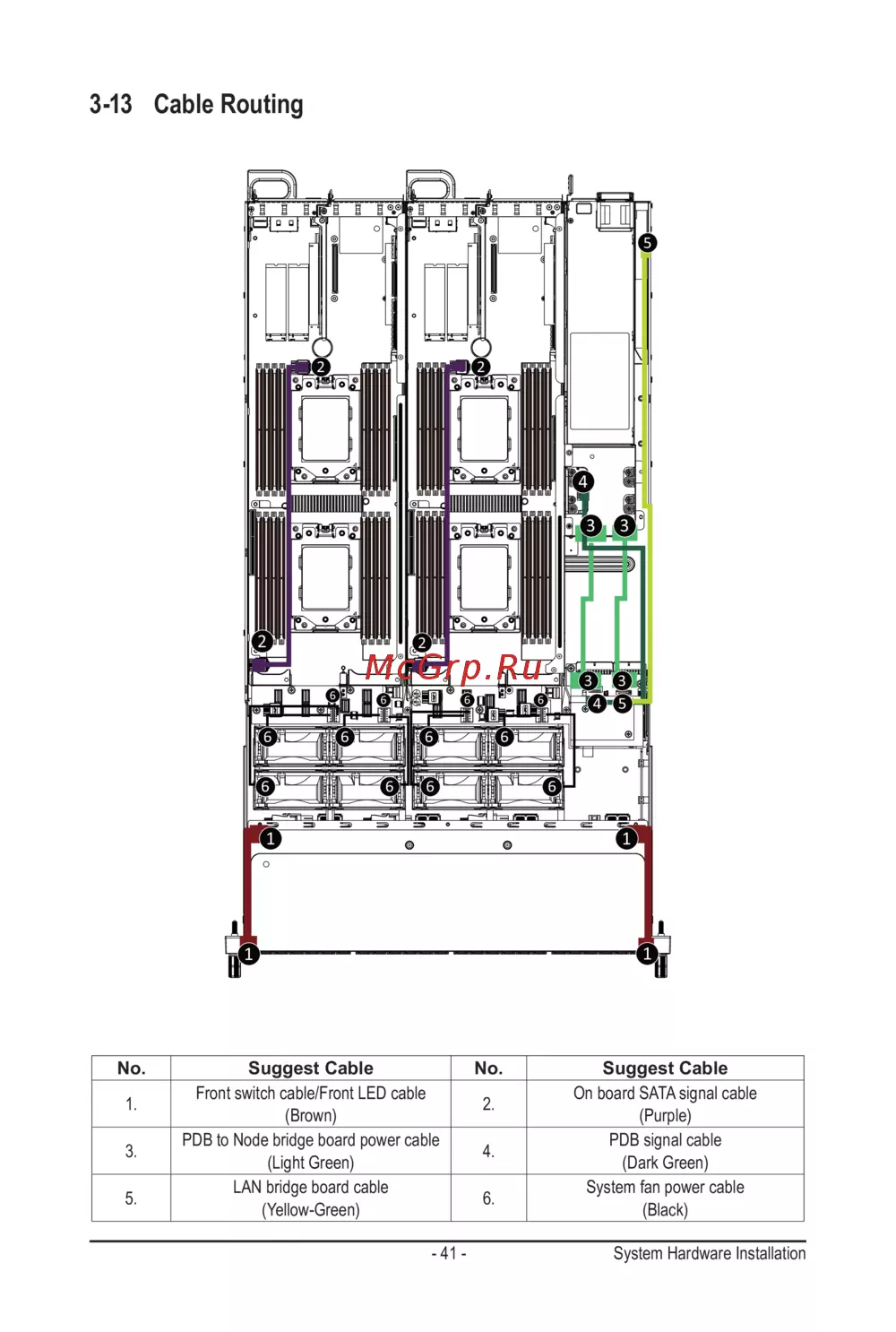

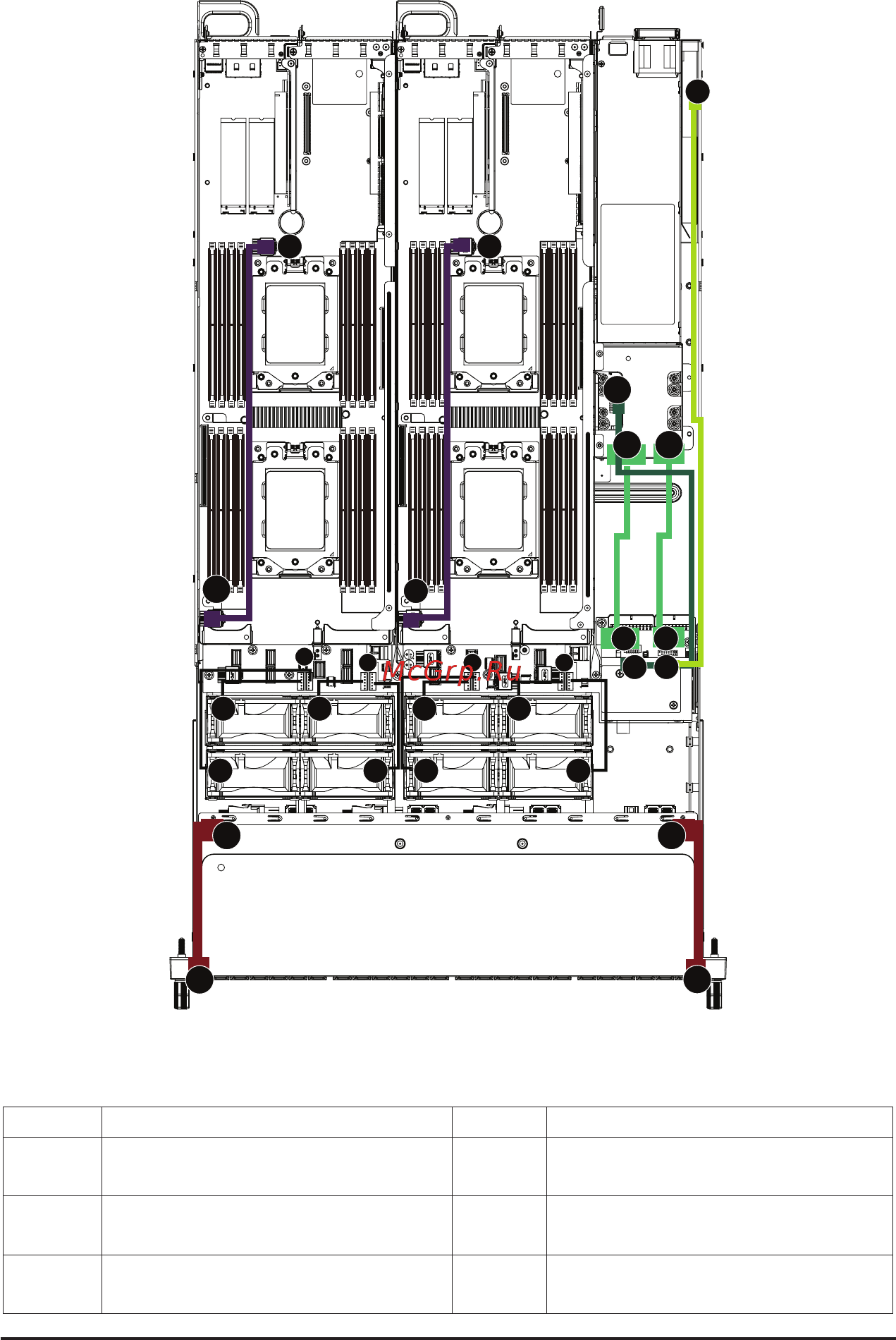

3-13 Cable Routing

3 3

6 6

6 6 6

3 3

No. Suggest Cable No. Suggest Cable

Front switch cable/Front LED cable

(Brown)

On board SATA signal cable

(Purple)

PDB to Node bridge board power cable

(Light Green)

PDB signal cable

(Dark Green)

LAN bridge board cable

(Yellow-Green)

System fan power cable

(Black)
