Gigabyte H261-Z60 (rev. A00) [49/130] 2 advanced menu

- 49 - BIOS Setup

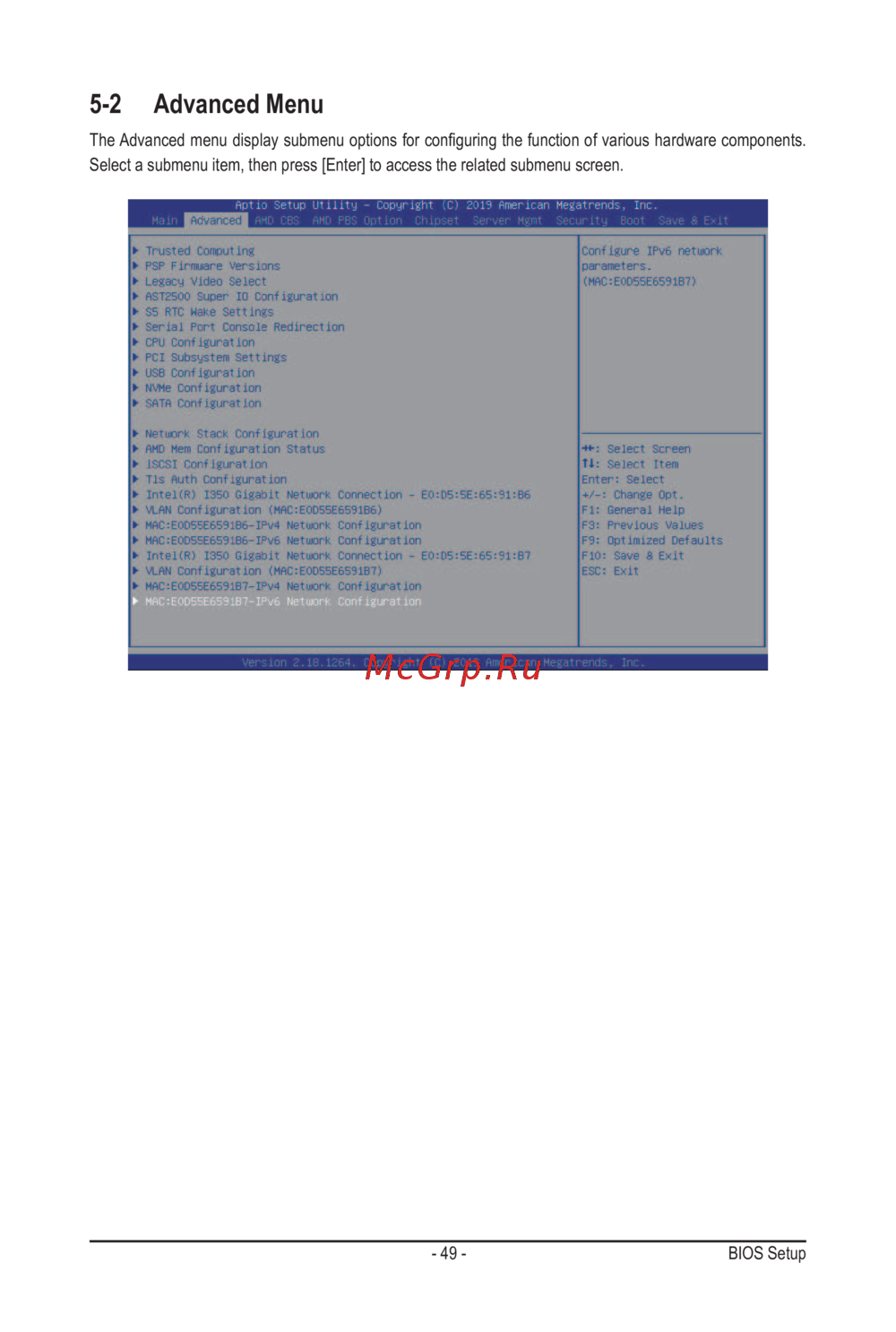

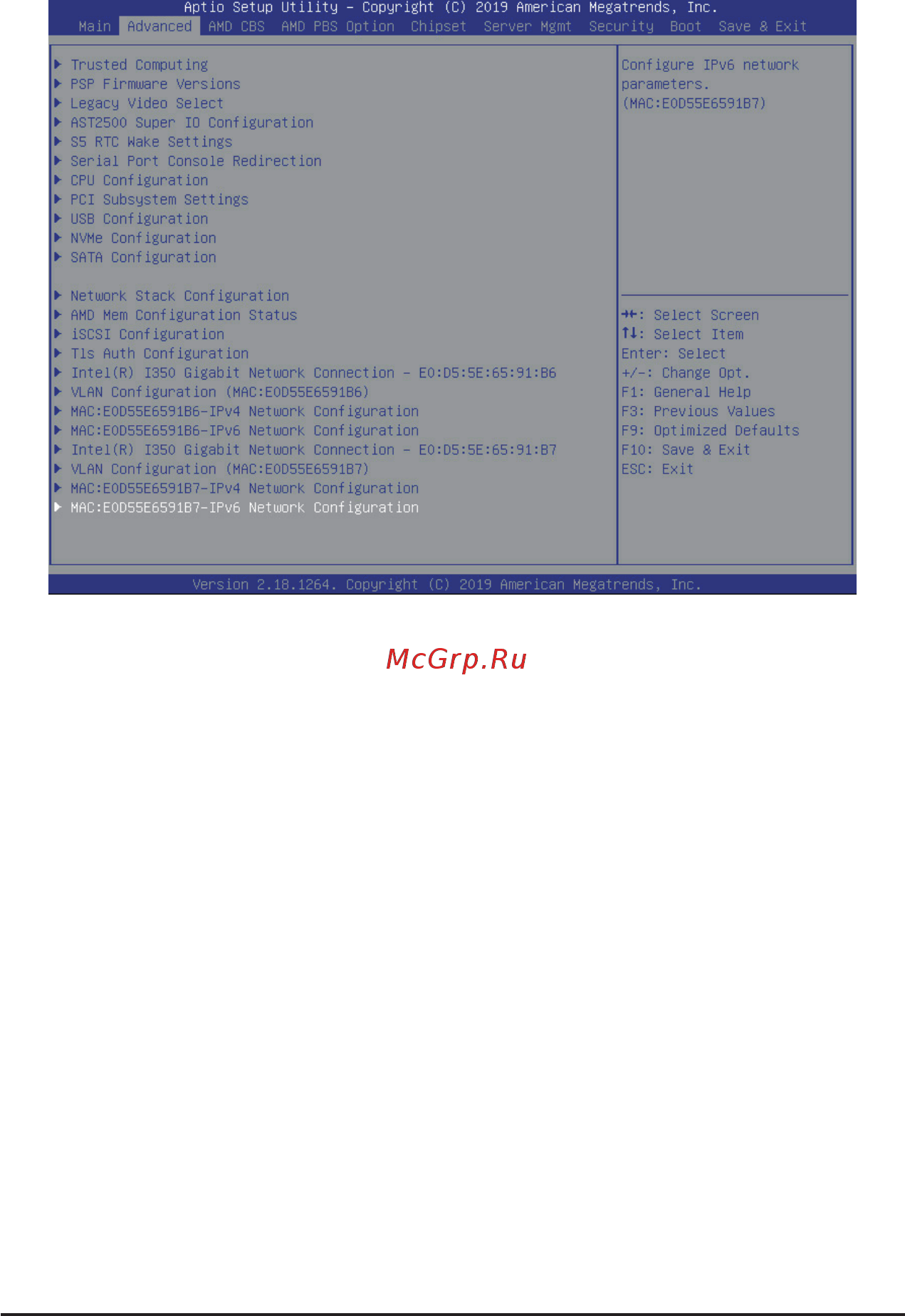

5-2 Advanced Menu

The Advanced menu display submenu options for conguring the function of various hardware components.

Select a submenu item, then press [Enter] to access the related submenu screen.
