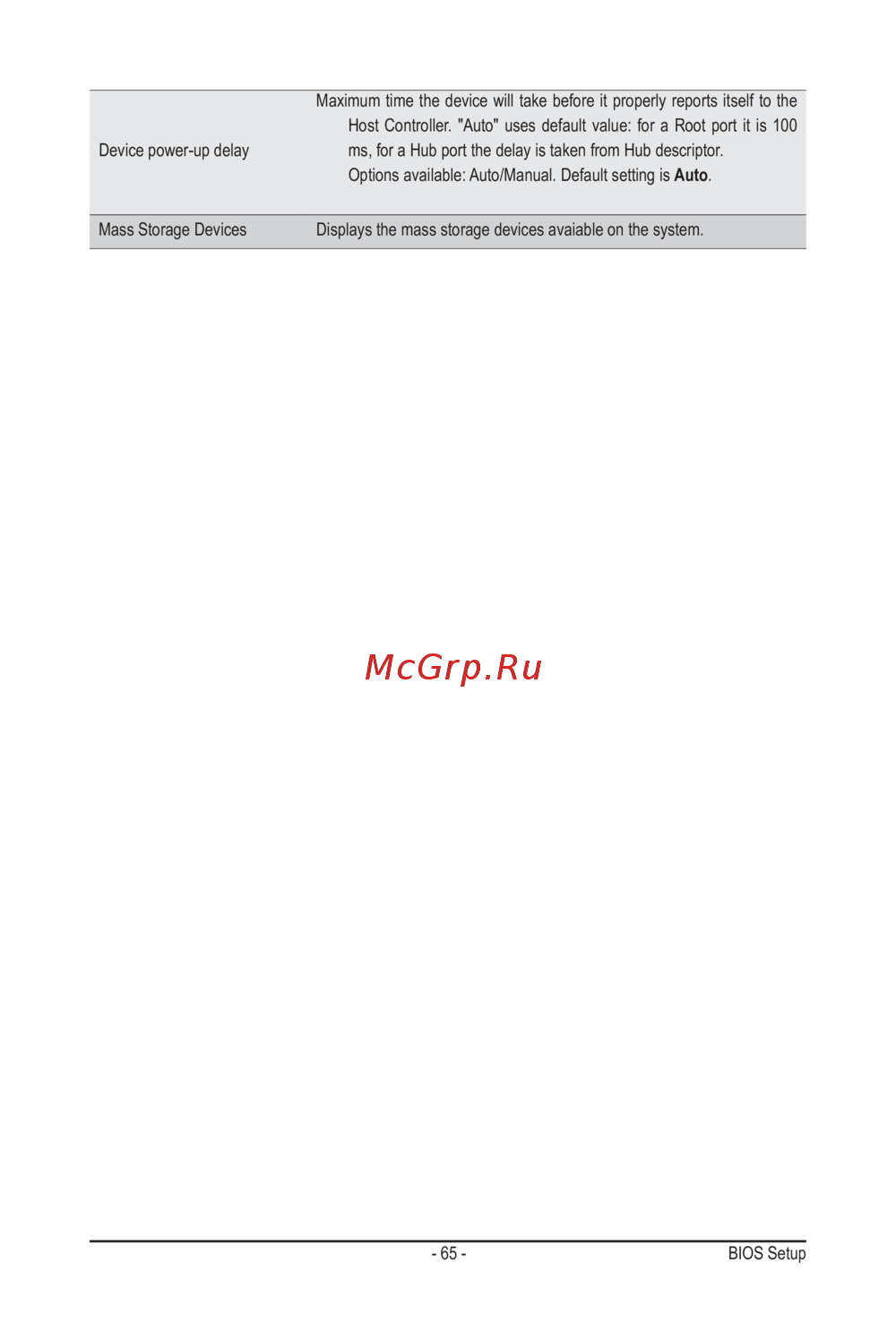

- 65 - BIOS Setup

Device power-up delay

Maximum time the device will take before it properly reports itself to the

Host Controller. "Auto" uses default value: for a Root port it is 100

ms, for a Hub port the delay is taken from Hub descriptor.

Options available: Auto/Manual. Default setting is Auto.

Mass Storage Devices Displays the mass storage devices avaiable on the system.
