Gigabyte H261-Z61 (rev. A00) [25/130] 2 removing the node

- 25 - System Hardware Installation

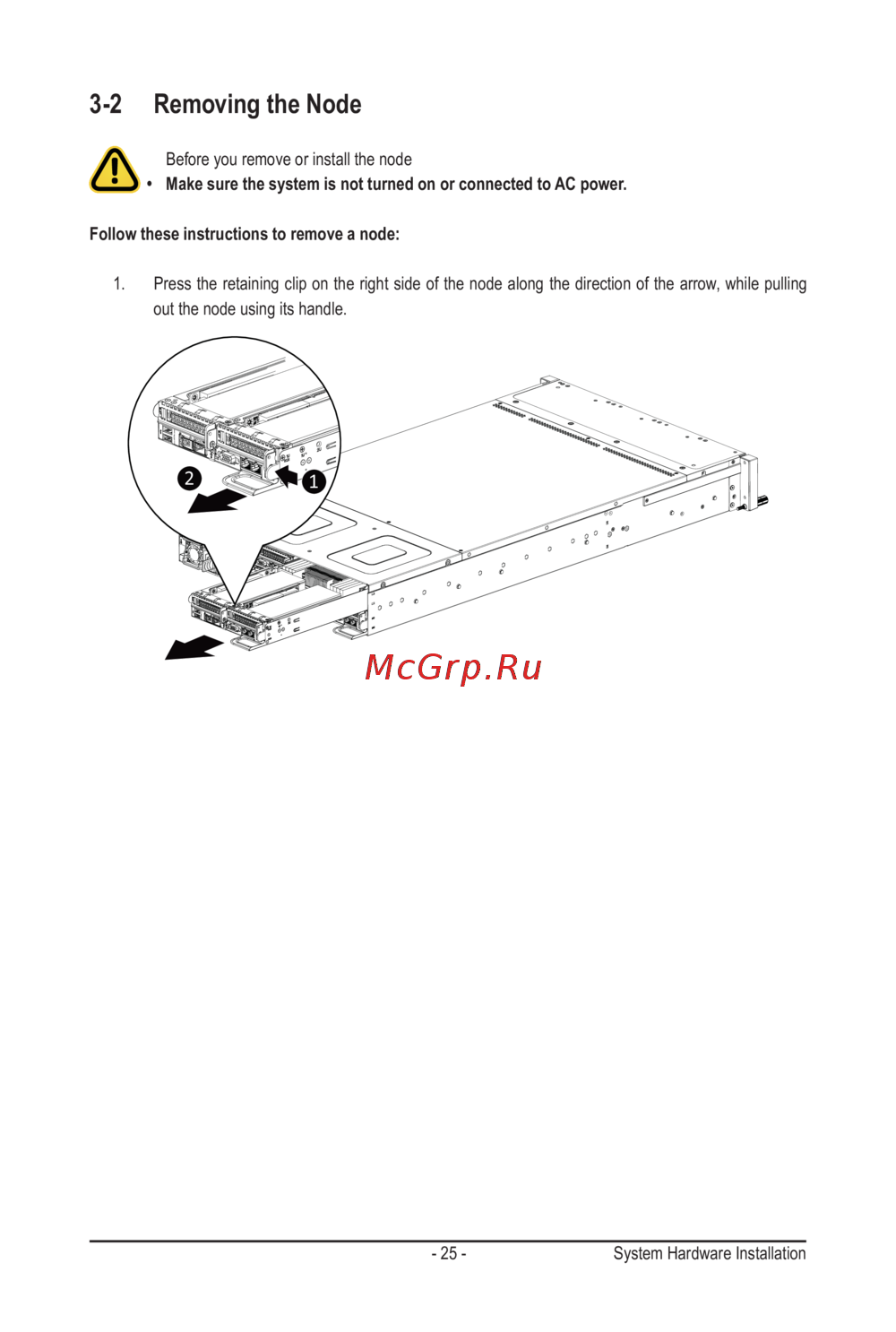

3-2 Removing the Node

Before you remove or install the node

• Make sure the system is not turned on or connected to AC power.

Follow these instructions to remove a node:

1. Press the retaining clip on the right side of the node along the direction of the arrow, while pulling

out the node using its handle.
