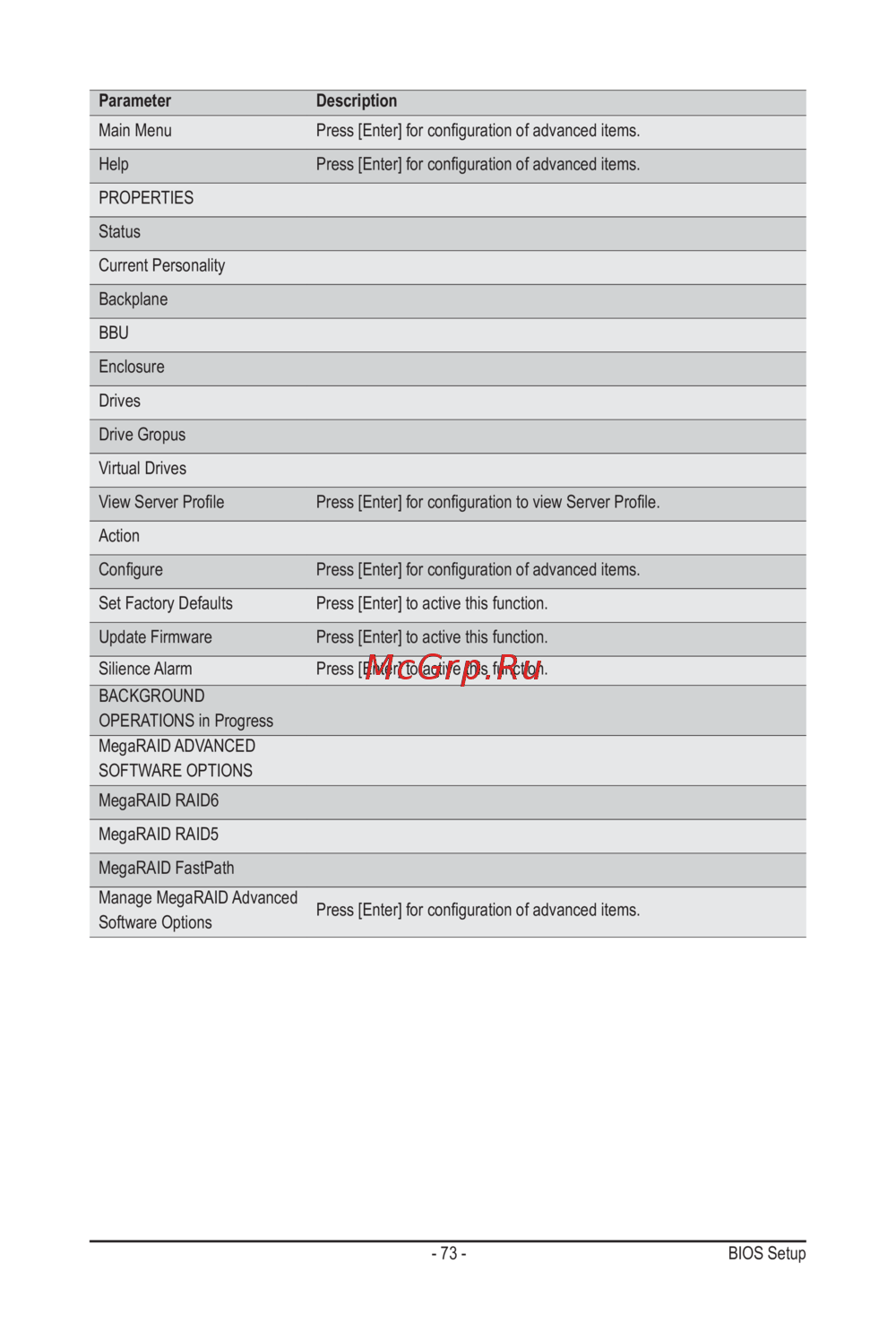

- 73 - BIOS Setup

Parameter Description

Main Menu Press [Enter] for conguration of advanced items.

Help Press [Enter] for conguration of advanced items.

PROPERTIES

Status

Current Personality

Backplane

BBU

Enclosure

Drives

Drive Gropus

Virtual Drives

View Server Prole Press [Enter] for conguration to view Server Prole.

Action

Congure Press [Enter] for conguration of advanced items.

Set Factory Defaults Press [Enter] to active this function.

Update Firmware Press [Enter] to active this function.

Silience Alarm Press [Enter] to active this function.

BACKGROUND

OPERATIONS in Progress

MegaRAID ADVANCED

SOFTWARE OPTIONS

MegaRAID RAID6

MegaRAID RAID5

MegaRAID FastPath

Manage MegaRAID Advanced

Software Options

Press [Enter] for conguration of advanced items.
