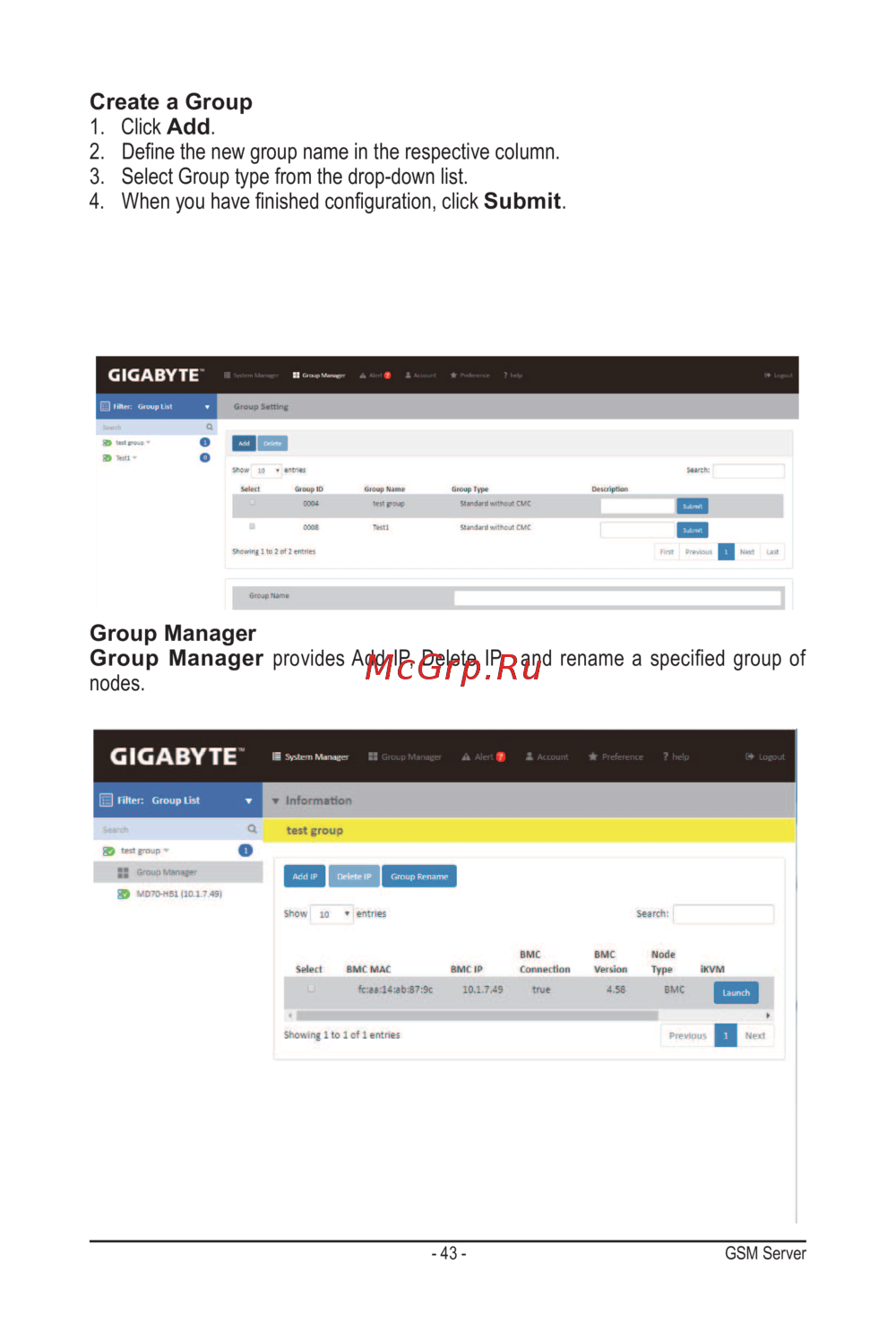

- 43 - GSM Server

Create a Group

1. Click Add.

2. Denethenewgroupnameintherespectivecolumn.

3. Select Group type from the drop-down list.

4. Whenyouhavenishedconguration,clickSubmit.

Group Manager

Group Manager provides Add IP, Delete IP, and rename a specified group of

nodes.
