- 61 - GSM Server

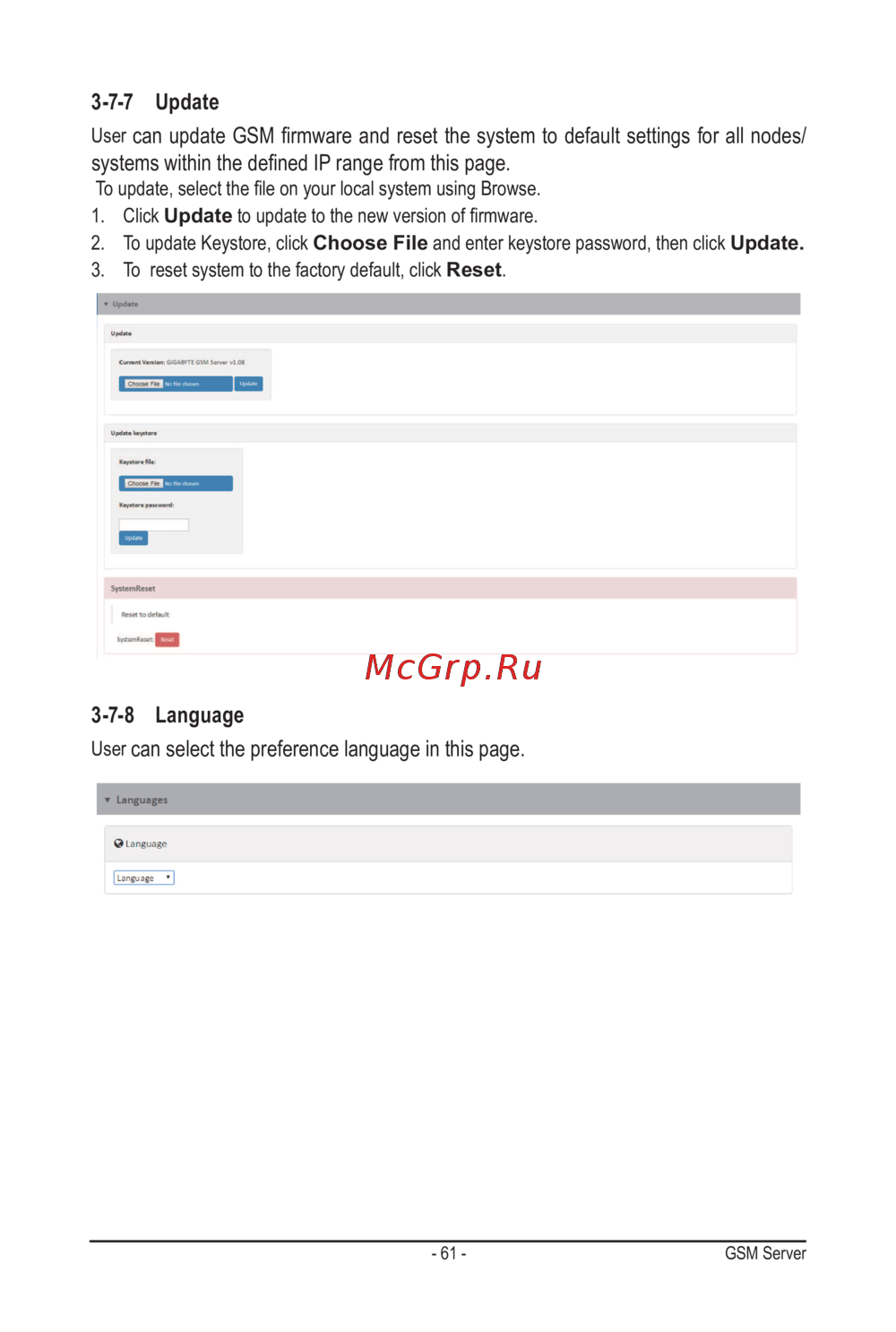

3-7-7 Update

User

canupdateGSMrmwareandresetthesystemtodefaultsettingsforallnodes/

systemswithinthedenedIPrangefromthispage.

Toupdate,selecttheleonyourlocalsystemusingBrowse.

1. Click Updatetoupdatetothenewversionofrmware.

2. To update Keystore, click Choose File and enter keystore password, then click Update.

3. To reset system to the factory default, click Reset.

3-7-8 Language

User

can select the preference language in this page.
