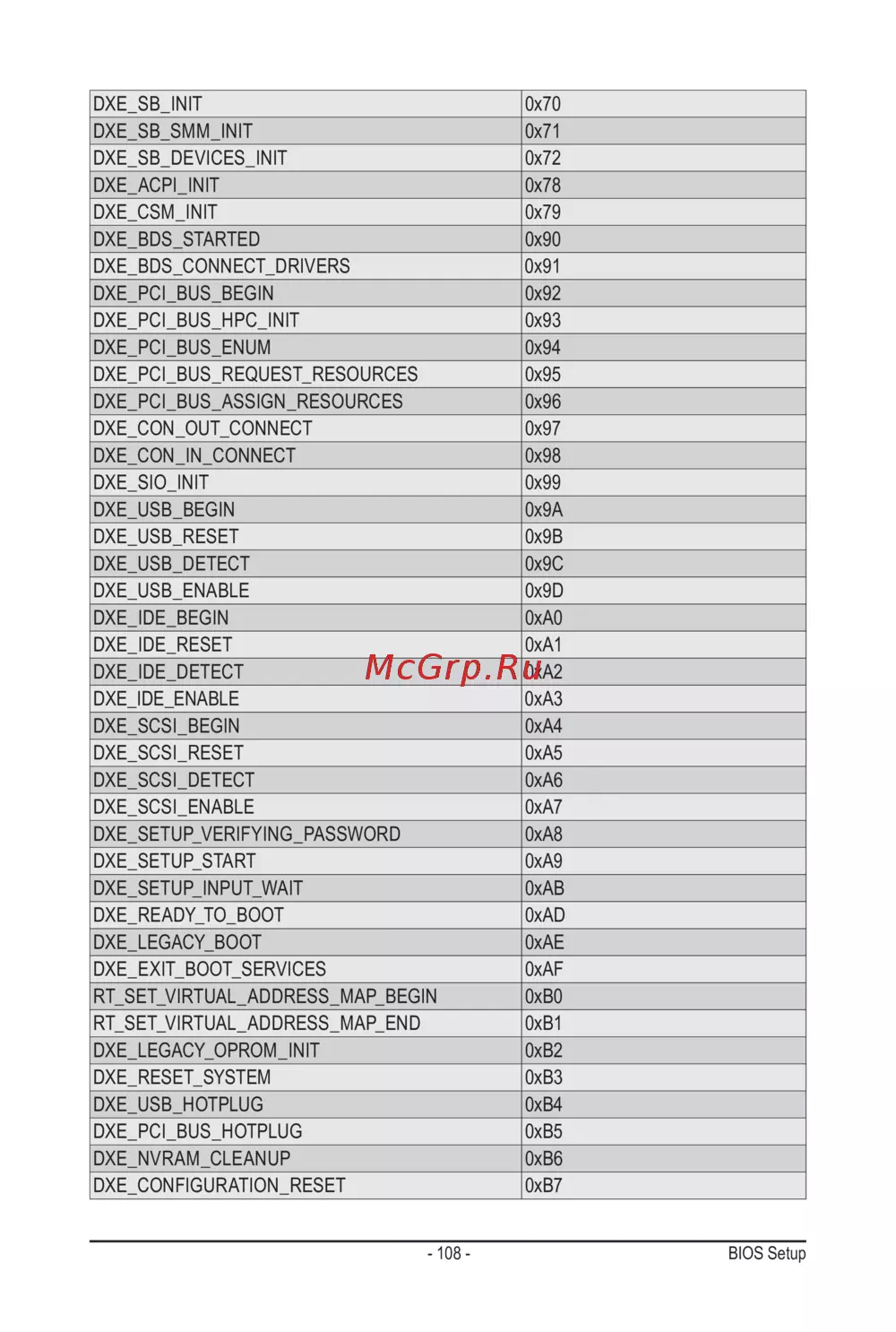

- 108 - BIOS Setup
DXE_SB_INIT 0x70
DXE_SB_SMM_INIT 0x71
DXE_SB_DEVICES_INIT 0x72
DXE_ACPI_INIT 0x78
DXE_CSM_INIT 0x79
DXE_BDS_STARTED 0x90
DXE_BDS_CONNECT_DRIVERS 0x91
DXE_PCI_BUS_BEGIN 0x92
DXE_PCI_BUS_HPC_INIT 0x93
DXE_PCI_BUS_ENUM 0x94
DXE_PCI_BUS_REQUEST_RESOURCES 0x95
DXE_PCI_BUS_ASSIGN_RESOURCES 0x96
DXE_CON_OUT_CONNECT 0x97
DXE_CON_IN_CONNECT 0x98
DXE_SIO_INIT 0x99
DXE_USB_BEGIN 0x9A
DXE_USB_RESET 0x9B
DXE_USB_DETECT 0x9C
DXE_USB_ENABLE 0x9D
DXE_IDE_BEGIN 0xA0
DXE_IDE_RESET 0xA1
DXE_IDE_DETECT 0xA2
DXE_IDE_ENABLE 0xA3
DXE_SCSI_BEGIN 0xA4
DXE_SCSI_RESET 0xA5
DXE_SCSI_DETECT 0xA6
DXE_SCSI_ENABLE 0xA7
DXE_SETUP_VERIFYING_PASSWORD 0xA8
DXE_SETUP_START 0xA9
DXE_SETUP_INPUT_WAIT 0xAB
DXE_READY_TO_BOOT 0xAD
DXE_LEGACY_BOOT 0xAE
DXE_EXIT_BOOT_SERVICES 0xAF
RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB0
RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB1
DXE_LEGACY_OPROM_INIT 0xB2
DXE_RESET_SYSTEM 0xB3
DXE_USB_HOTPLUG 0xB4
DXE_PCI_BUS_HOTPLUG 0xB5
DXE_NVRAM_CLEANUP 0xB6
DXE_CONFIGURATION_RESET 0xB7
