- 112 - BIOS Setup

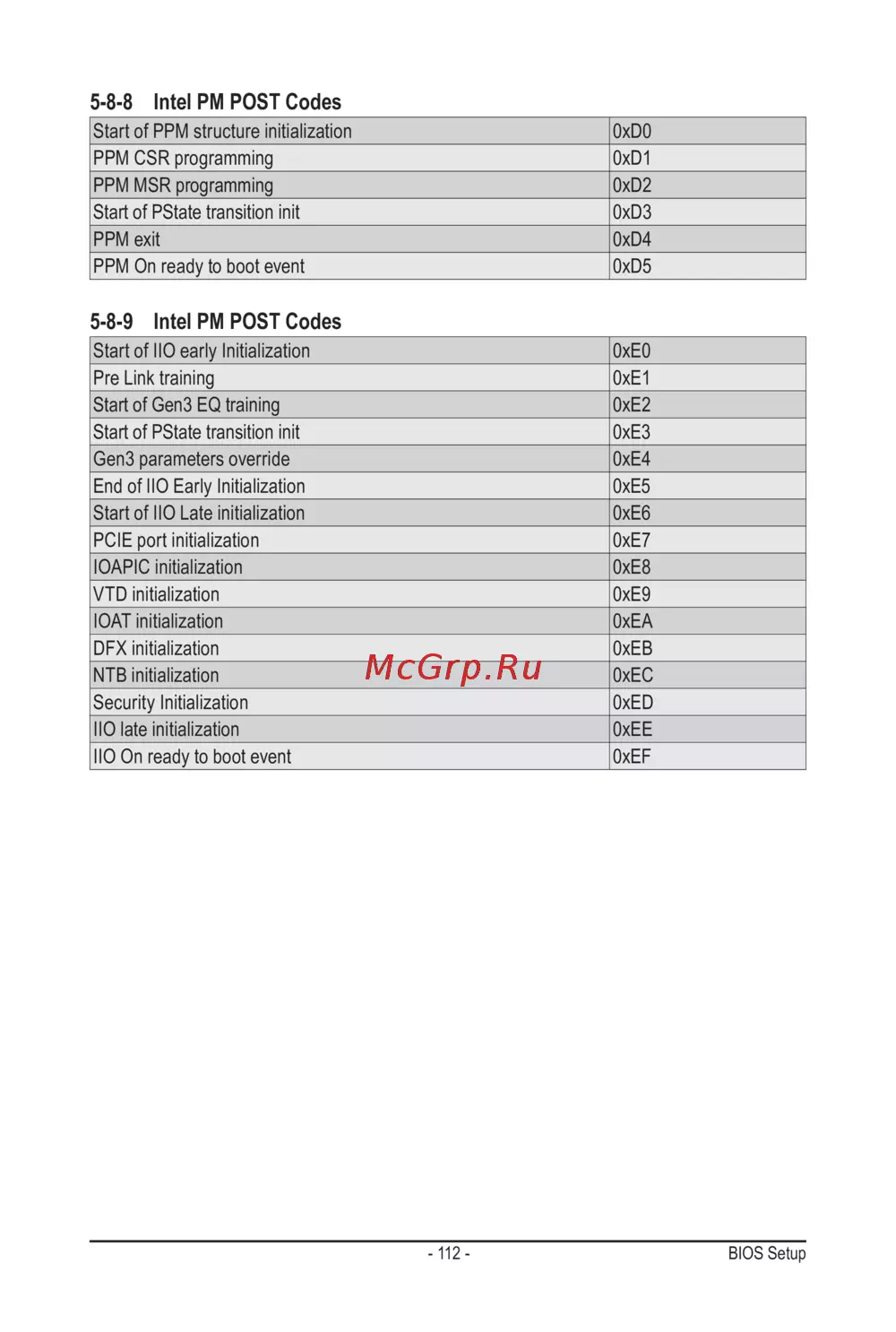

5-8-8 Intel PM POST Codes

Start of PPM structure initialization 0xD0

PPM CSR programming 0xD1

PPM MSR programming 0xD2

Start of PState transition init 0xD3

PPM exit 0xD4

PPM On ready to boot event 0xD5

5-8-9 Intel PM POST Codes

Start of IIO early Initialization 0xE0

Pre Link training 0xE1

Start of Gen3 EQ training 0xE2

Start of PState transition init 0xE3

Gen3 parameters override 0xE4

End of IIO Early Initialization 0xE5

Start of IIO Late initialization 0xE6

PCIE port initialization 0xE7

IOAPIC initialization 0xE8

VTD initialization 0xE9

IOAT initialization 0xEA

DFX initialization 0xEB

NTB initialization 0xEC

Security Initialization 0xED

IIO late initialization 0xEE

IIO On ready to boot event 0xEF
