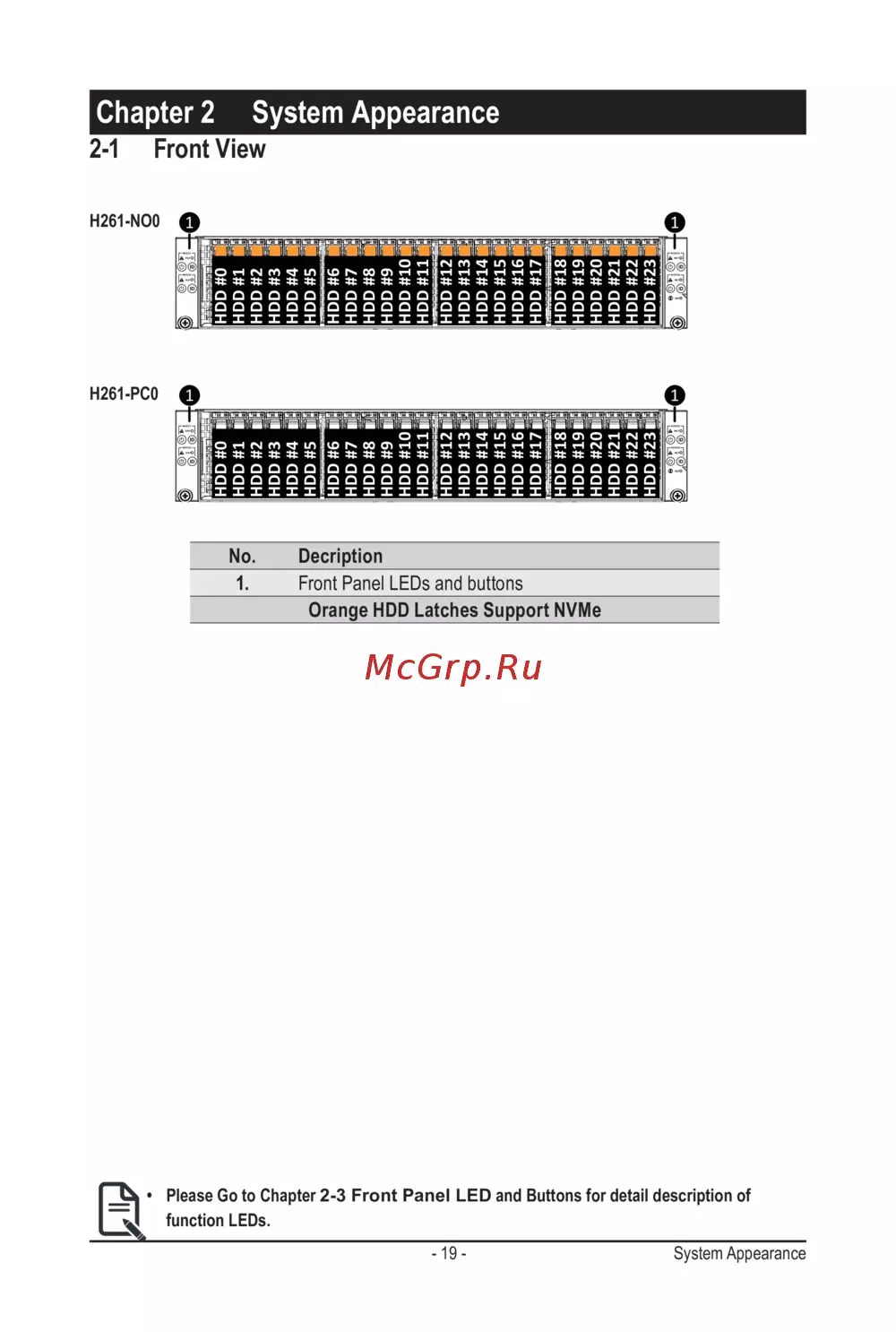

- 19 - System Appearance
Chapter 2 System Appearance
2-1 Front View
No. Decription
1.
Front Panel LEDs and buttons
Orange HDD Latches Support NVMe
• Please Go to Chapter 2-3 Front Panel LED and Buttons for detail description of
function LEDs.
