Gigabyte H261-NO0 (rev. 100) [27/113] Press pull

- 27 - System Hardware Installation

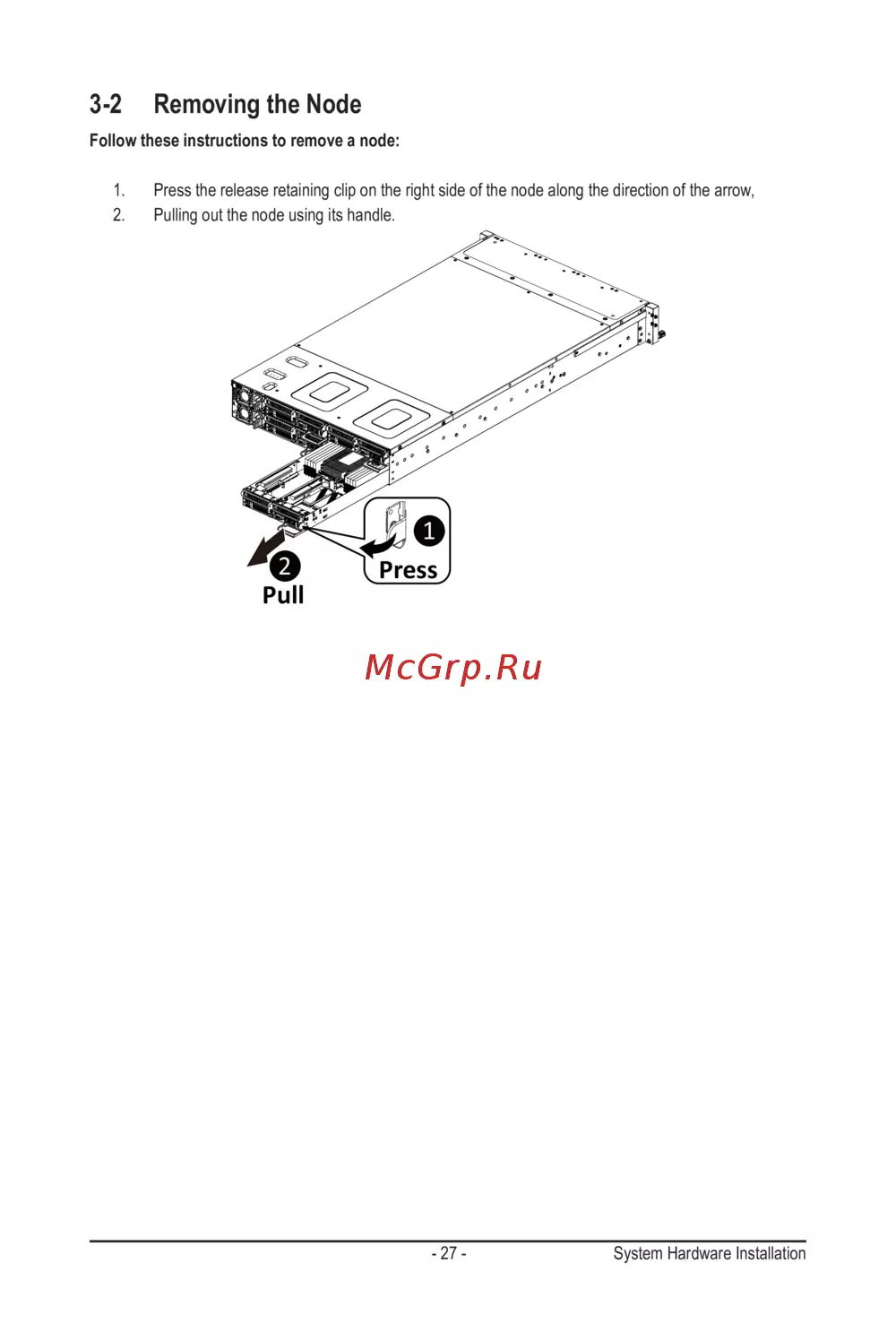

3-2 Removing the Node

Follow these instructions to remove a node:

1. Press the release retaining clip on the right side of the node along the direction of the arrow,

2. Pulling out the node using its handle.

Press

Pull
