System Hardware Installation - 38 -

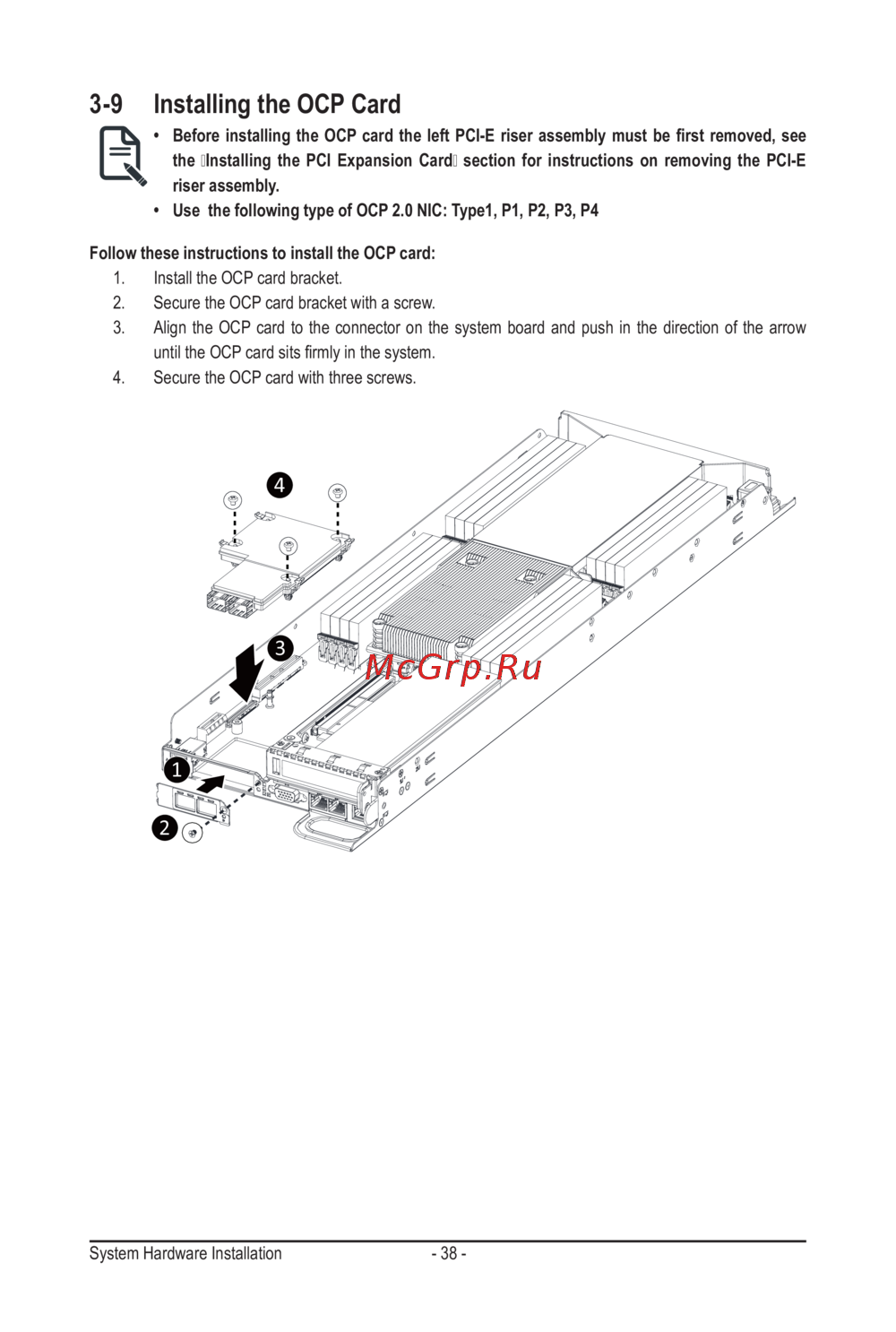

3-9 Installing the OCP Card

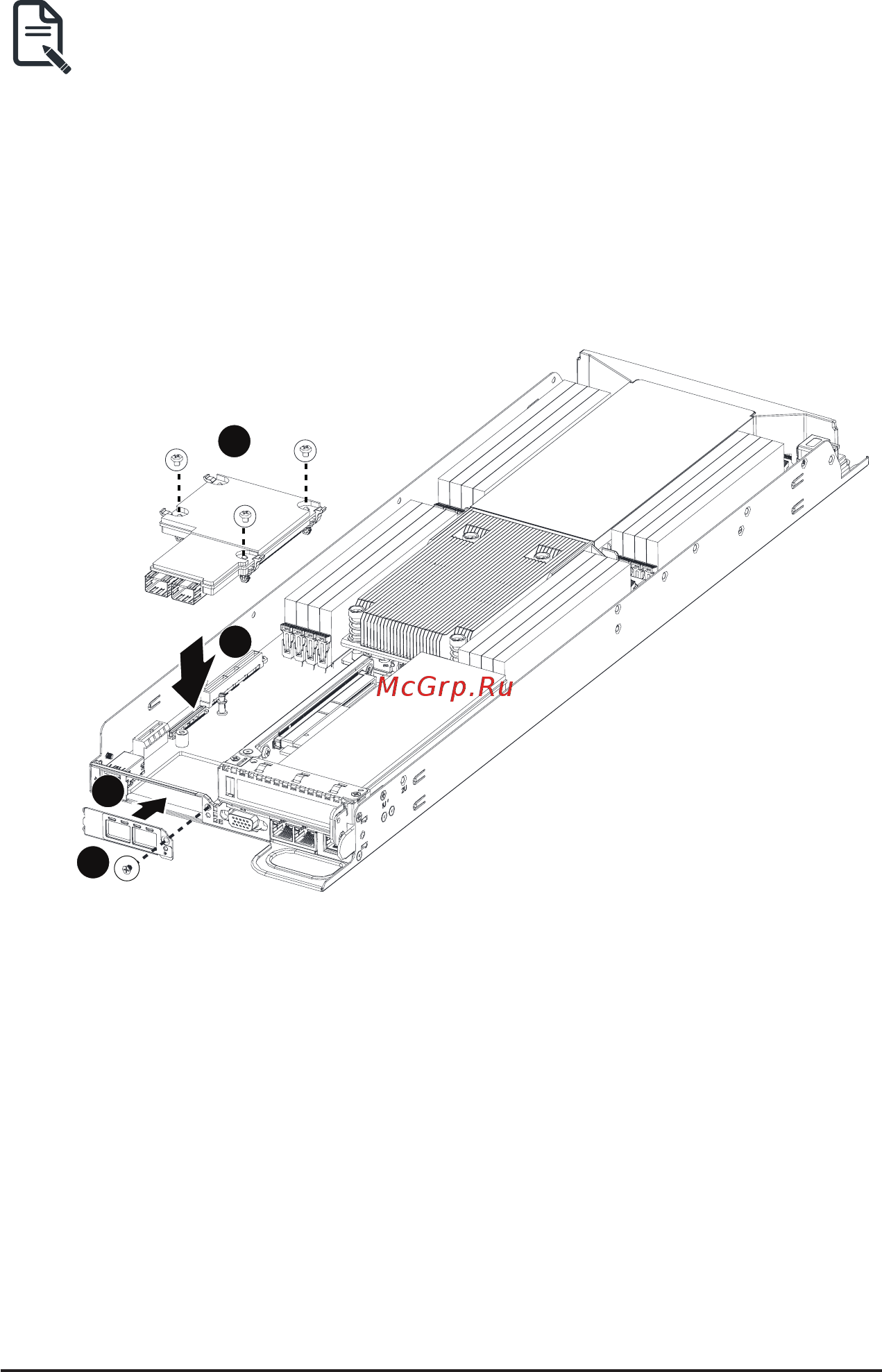

Follow these instructions to install the OCP card:

1. Install the OCP card bracket.

2. Secure the OCP card bracket with a screw.

3. Align the OCP card to the connector on the system board and push in the direction of the arrow

until the OCP card sits rmly in the system.

4. Secure the OCP card with three screws.

• Before installing the OCP card the left PCI-E riser assembly must be rst removed, see

the 「Installing the PCI Expansion Card「 section for instructions on removing the PCI-E

riser assembly.

• Use the following type of OCP 2.0 NIC: Type1, P1, P2, P3, P4
