Gigabyte H261-NO0 (rev. 100) [42/113] 12 replacing power distribution board cage

System Hardware Installation - 42 -

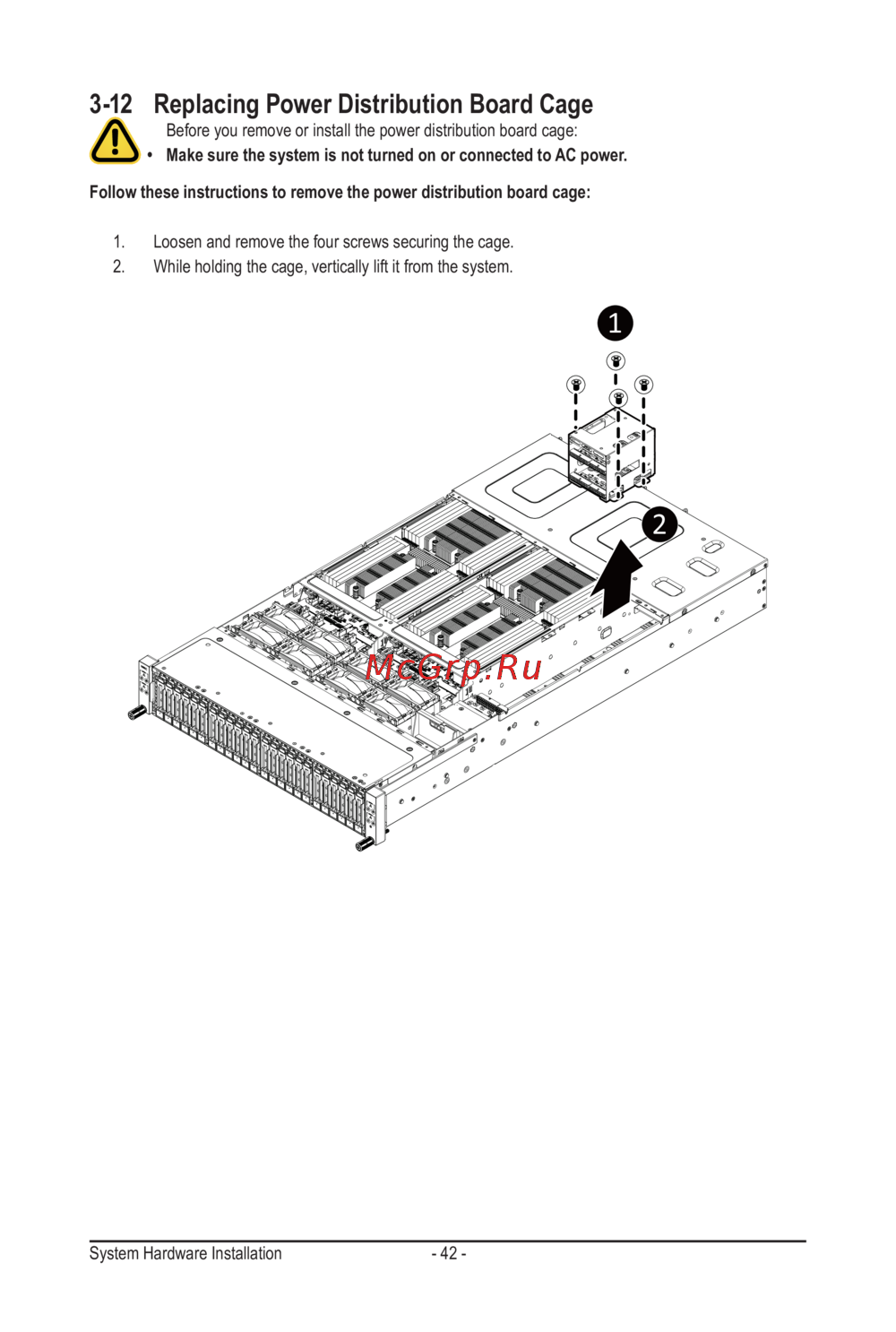

3-12 Replacing Power Distribution Board Cage

Before you remove or install the power distribution board cage:

• Make sure the system is not turned on or connected to AC power.

Follow these instructions to remove the power distribution board cage:

1. Loosen and remove the four screws securing the cage.

2. While holding the cage, vertically lift it from the system.
