Gigabyte H261-NO0 (rev. 100) [52/113] 52 hardware installation

- 52 - Hardware Installation

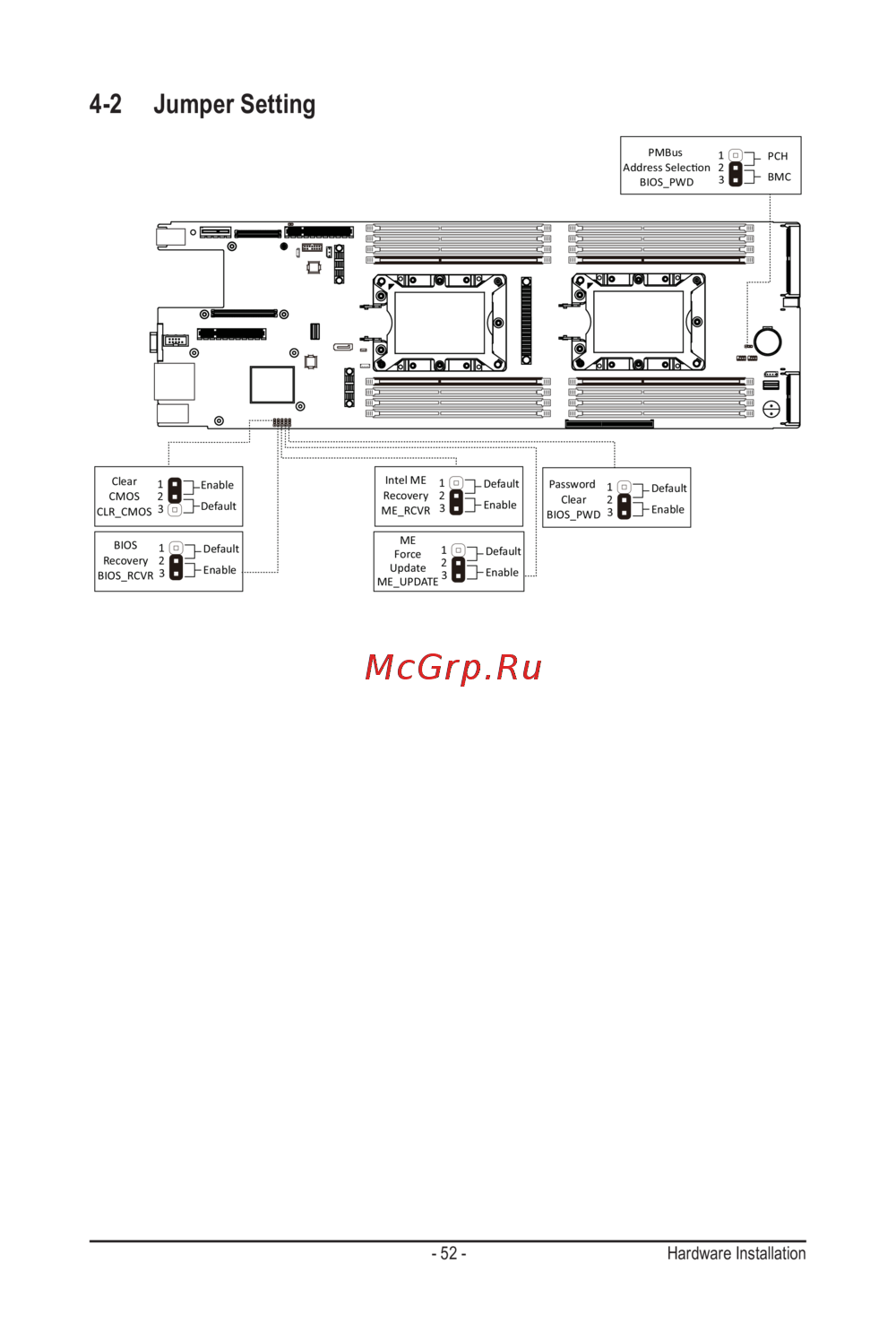

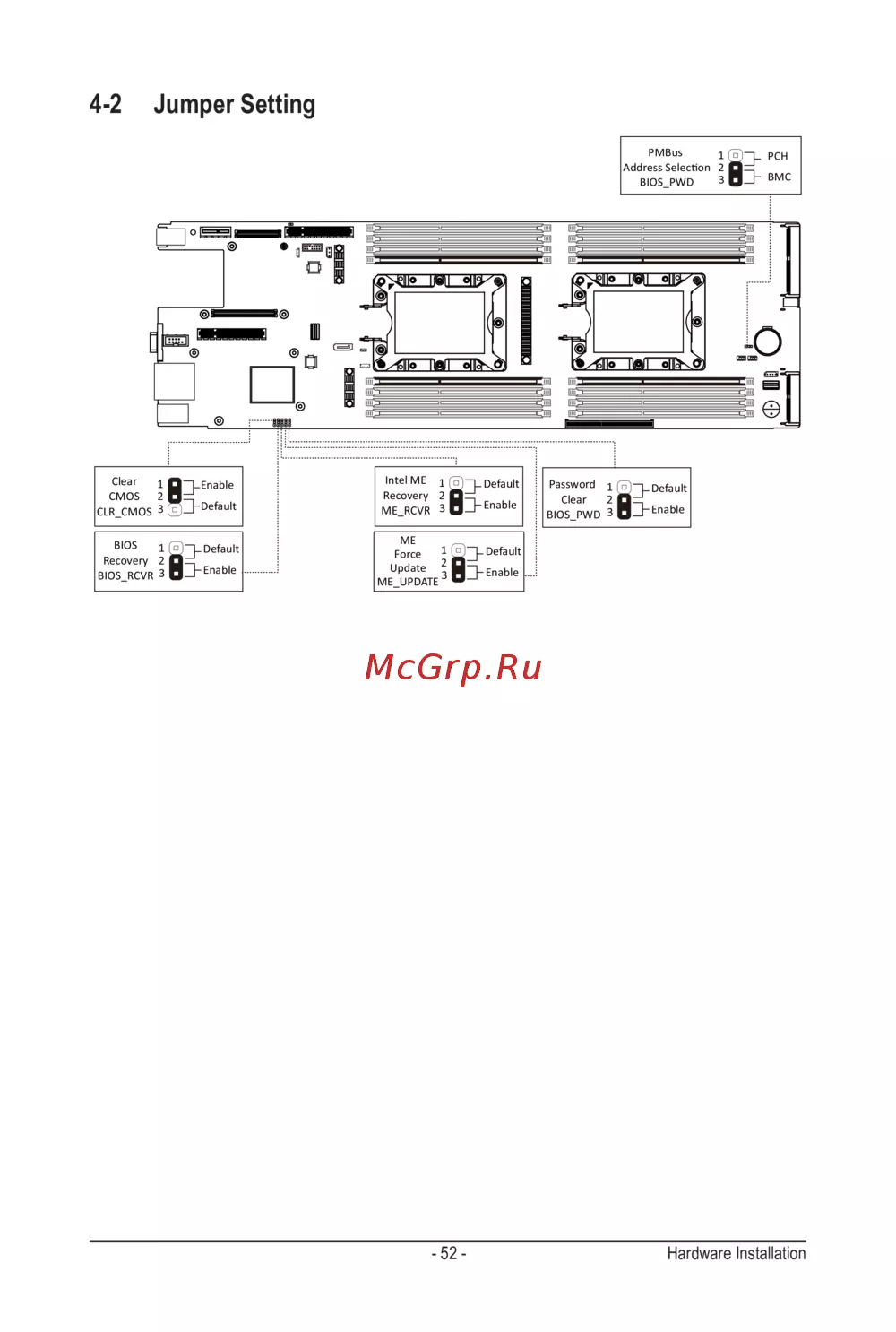

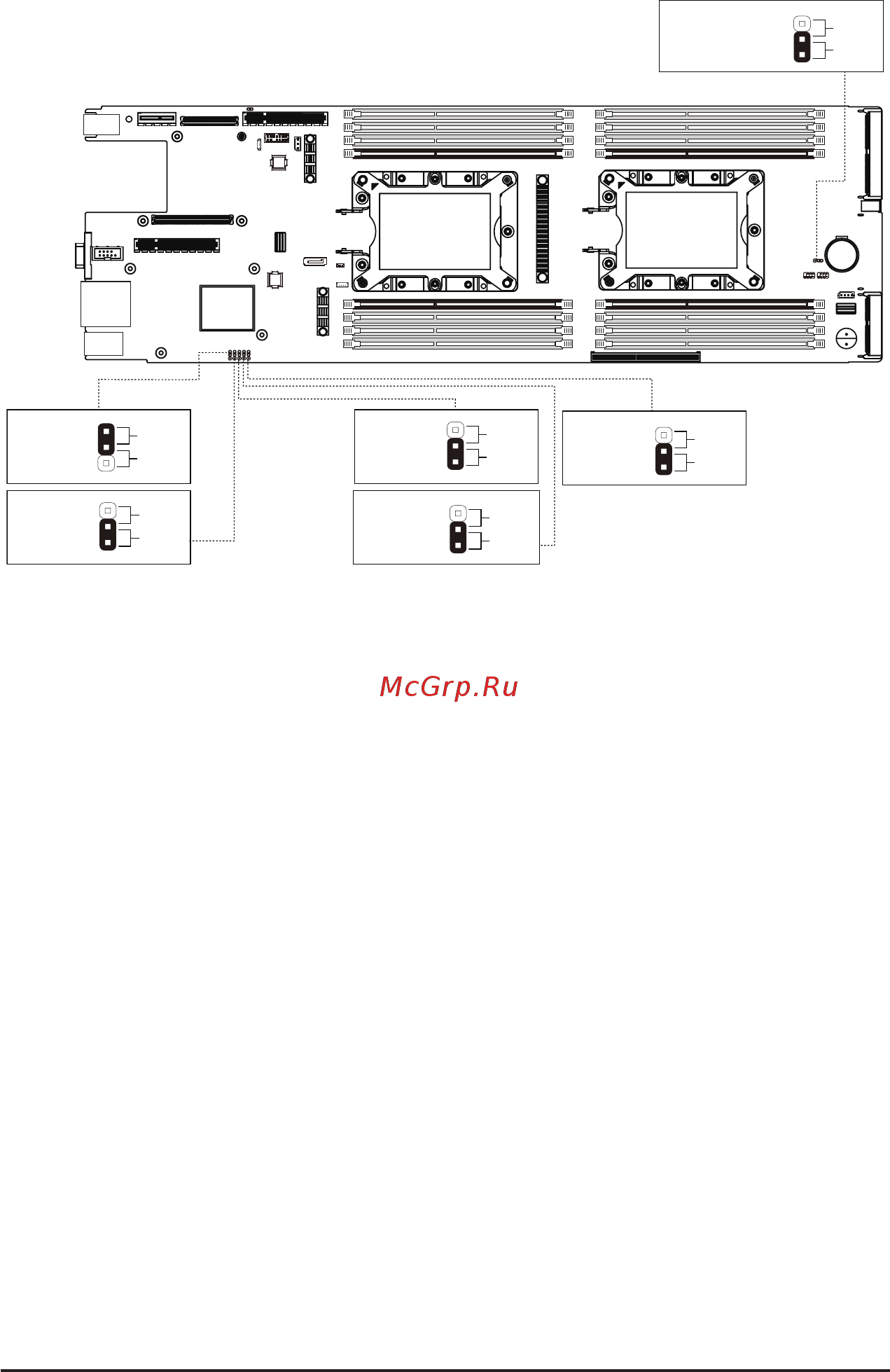

4-2 Jumper Setting

Clear

CMOS

CLR_CMOS

Enable

Default

BIOS

Recovery

BIOS_RCVR

Default

Enable

Intel ME

Recovery

ME_RCVR

Default

Enable

Force

Update

ME_UPDATE

Default

Enable

Password

Clear

BIOS_PWD

Default

Enable

PMBus

Address Selecon

BIOS_PWD

PCH

BMC
