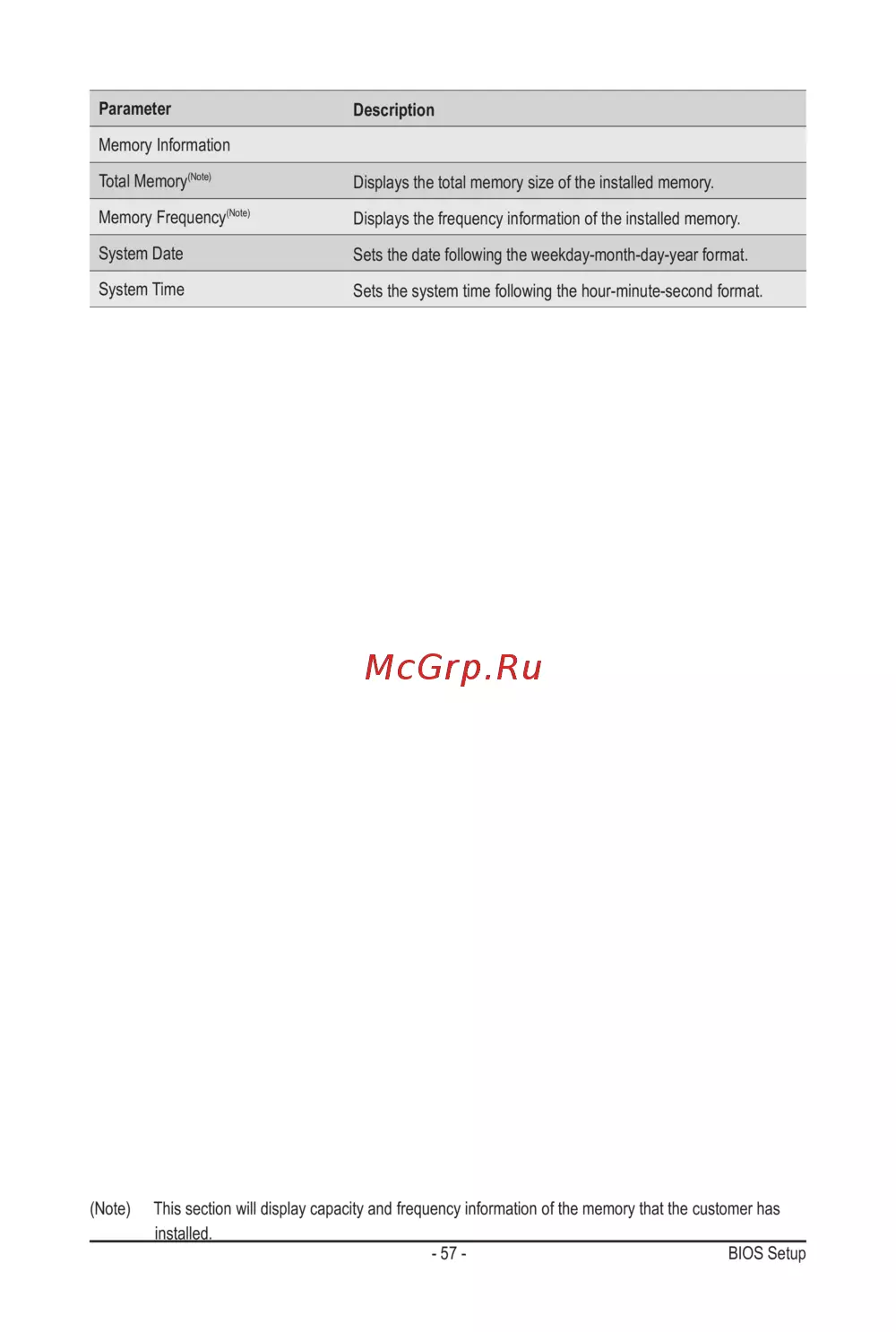

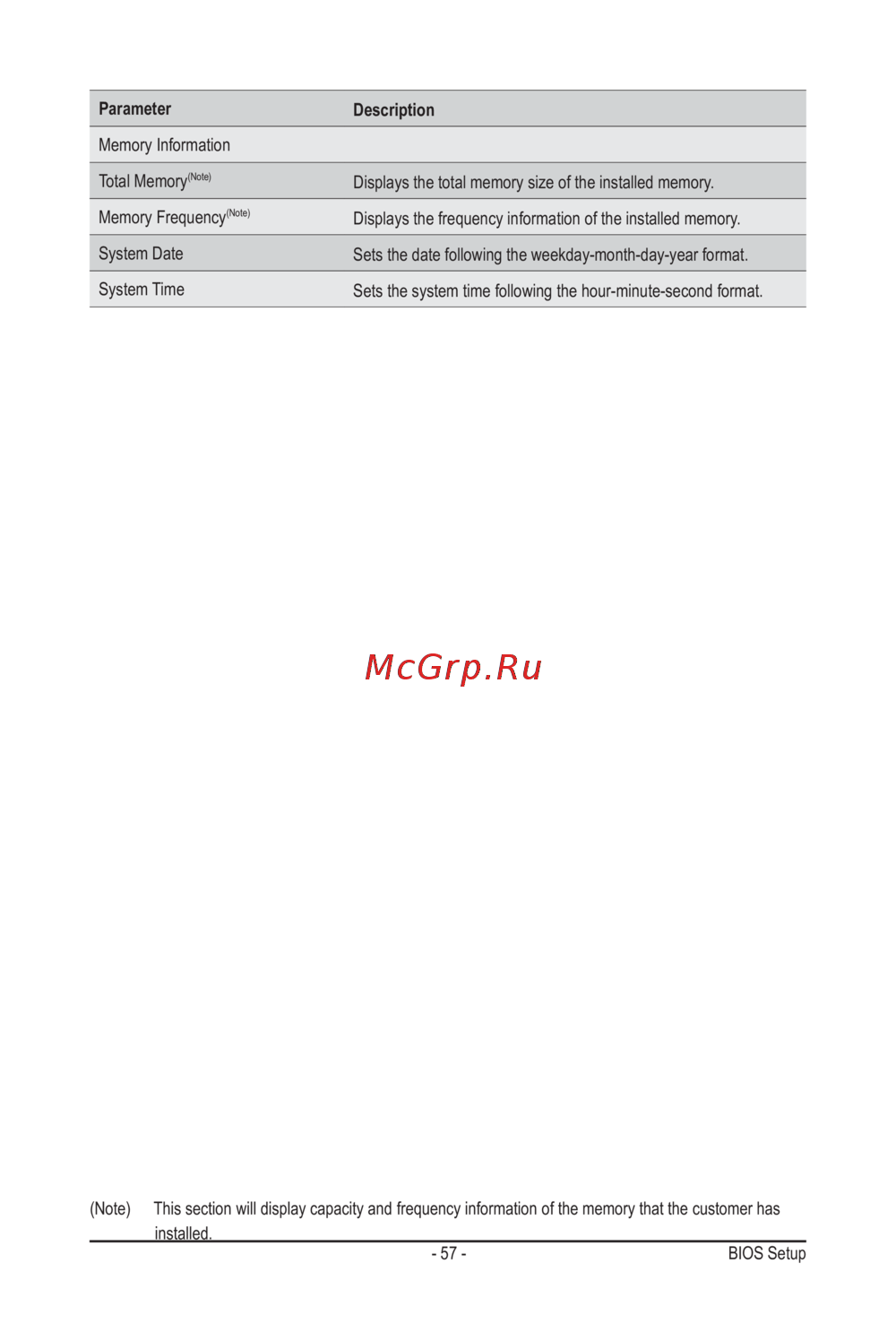

- 57 - BIOS Setup

(Note)

This section will display capacity and frequency information of the memory that the customer has

installed.

Parameter

Description

Memory Information

Total Memory

(Note)

Displays the total memory size of the installed memory.

Memory Frequency

(Note)

Displays the frequency information of the installed memory.

System Date

Sets the date following the weekday-month-day-year format.

System Time

Sets the system time following the hour-minute-second format.
