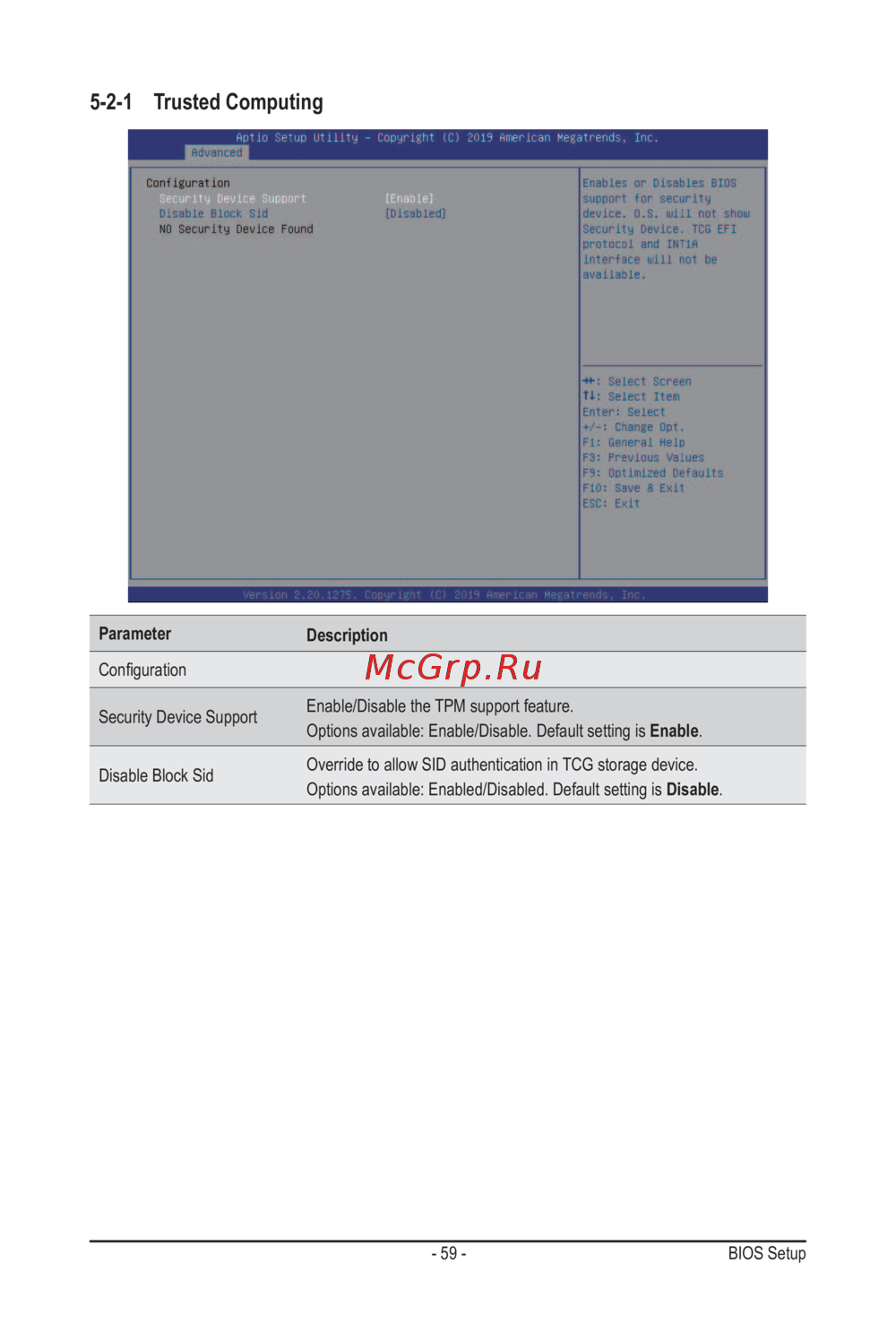

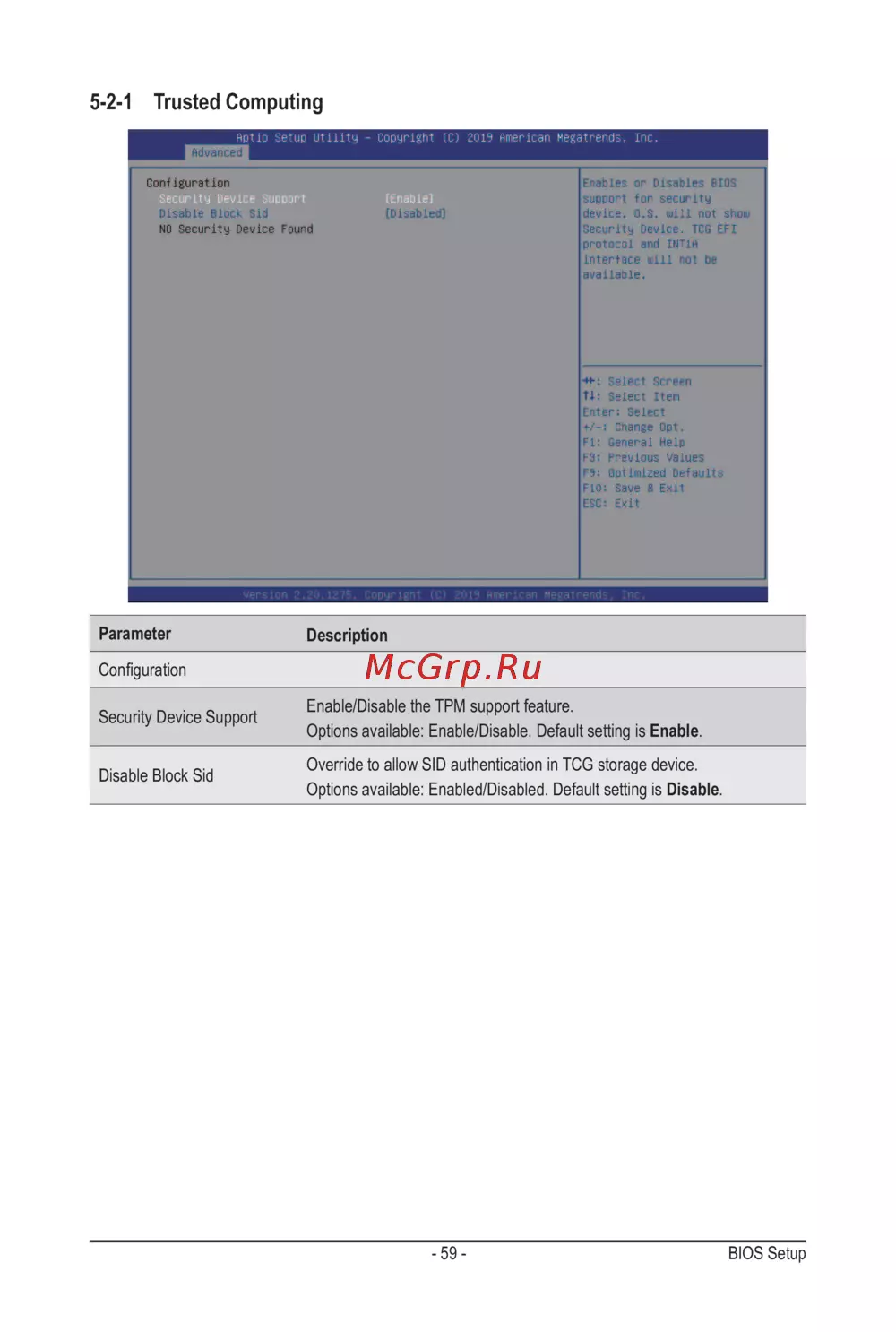

5-2-1 Trusted Computing

Parameter

Description

Conguration

Security Device Support

Enable/Disable the TPM support feature.

Options available: Enable/Disable. Default setting is Enable.

Disable Block Sid

Override to allow SID authentication in TCG storage device.

Options available: Enabled/Disabled. Default setting is Disable.
