Gigabyte H261-NO0 (rev. 100) [67/113] 2 6 post report configuration

- 67 - BIOS Setup

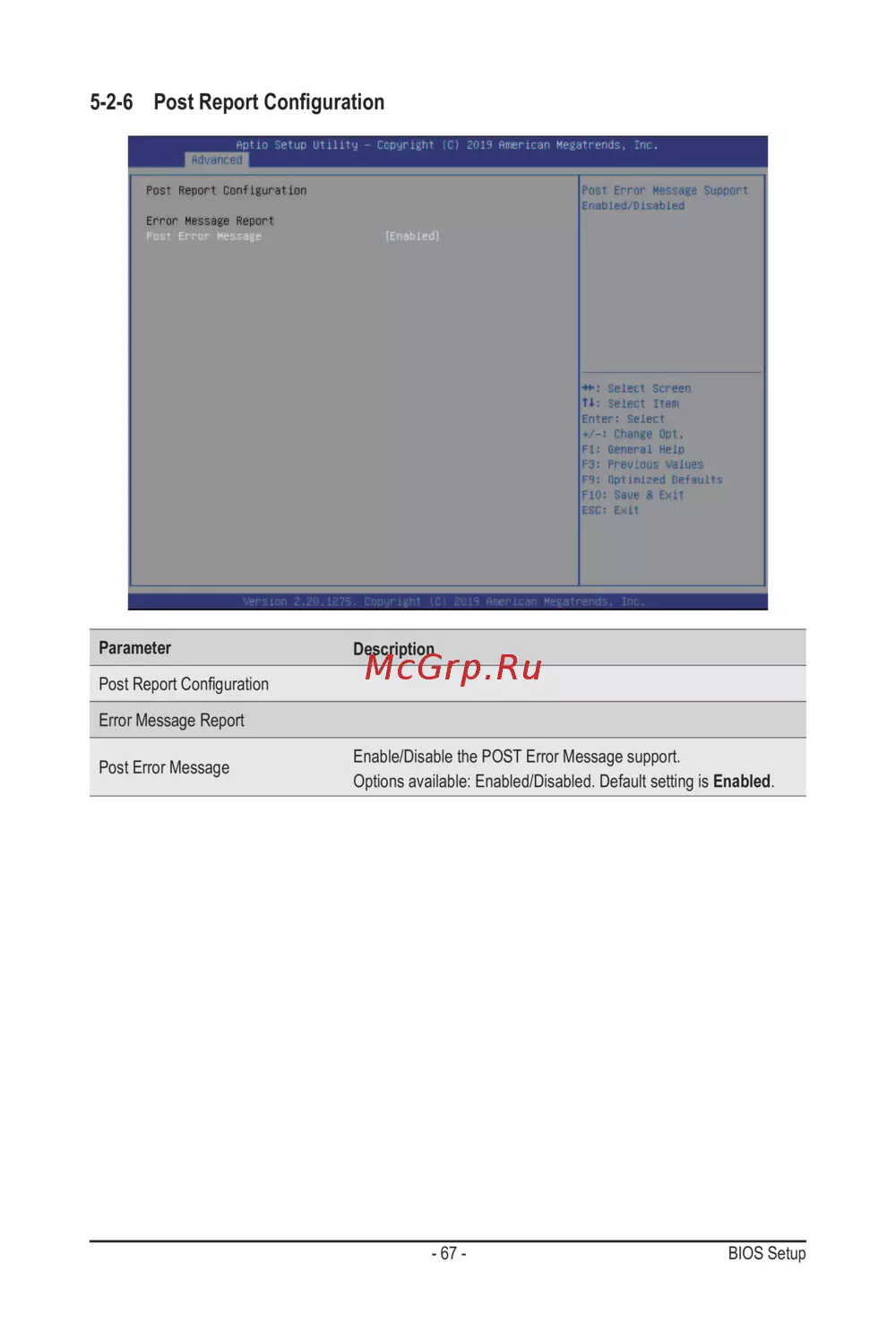

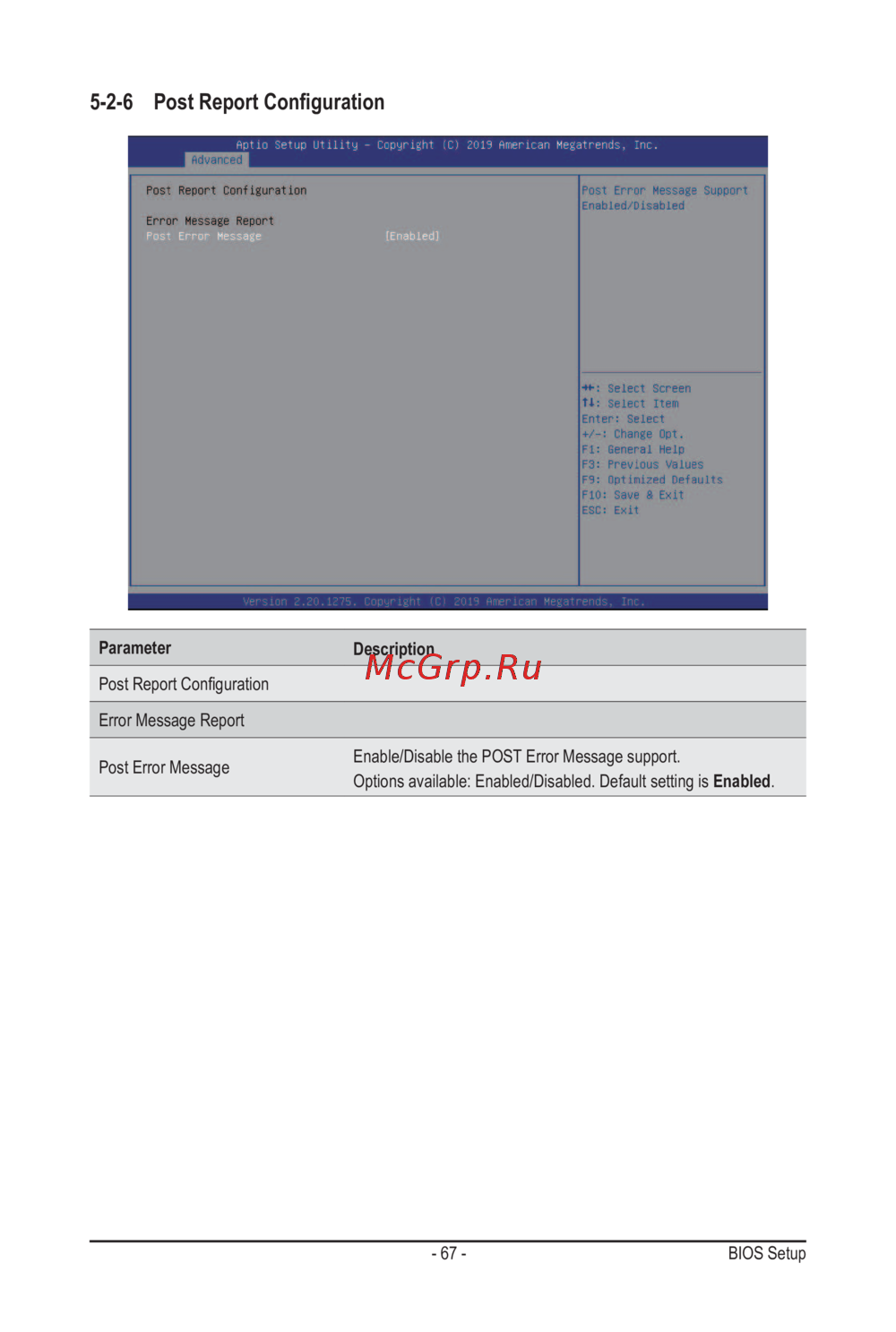

5-2-6 Post Report Conguration

Parameter

Description

Post Report Conguration

Error Message Report

Post Error Message

Enable/Disable the POST Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
