Gigabyte H261-NO0 (rev. 100) [68/113] 2 7 nvme configuration

- 68 - BIOS Setup

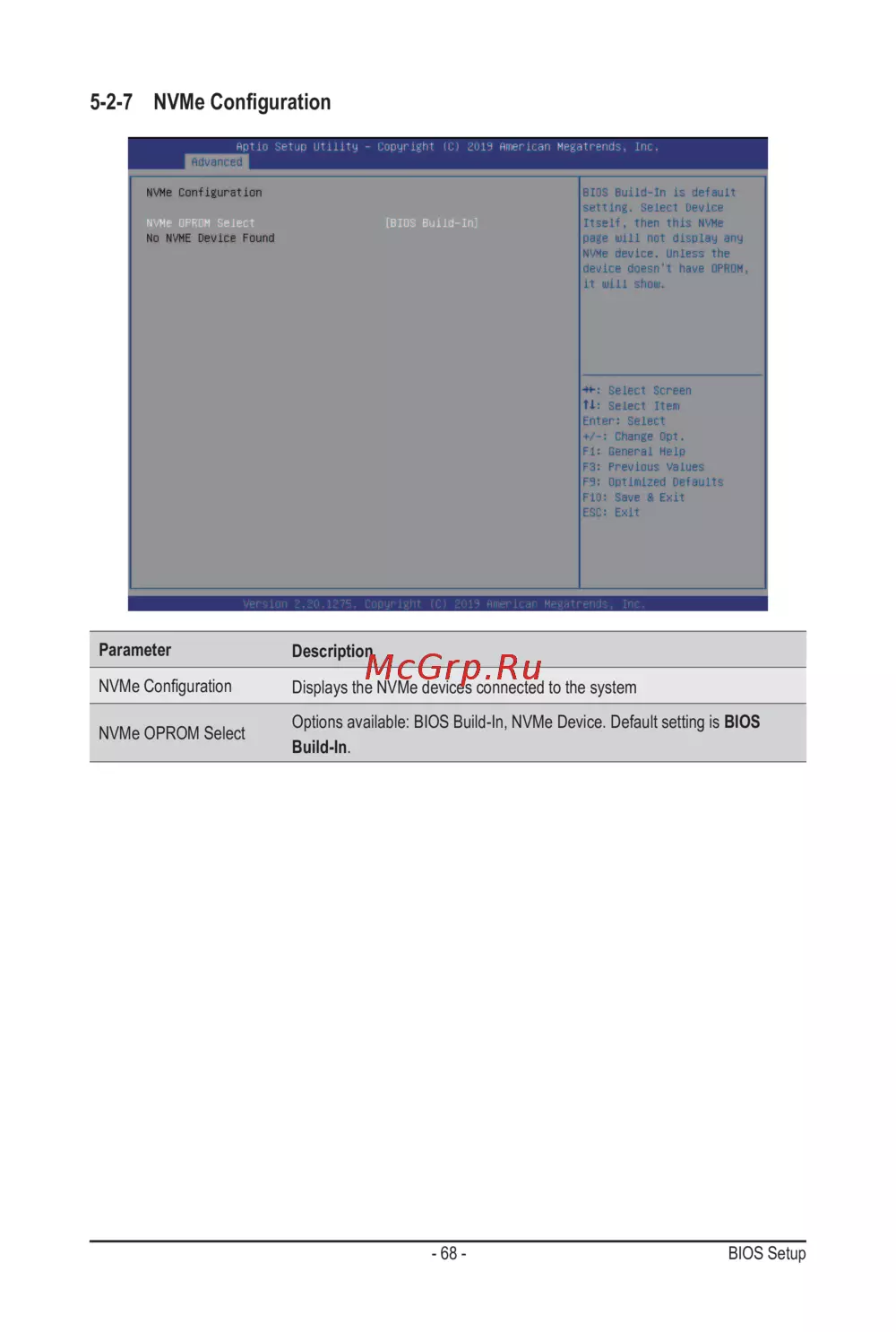

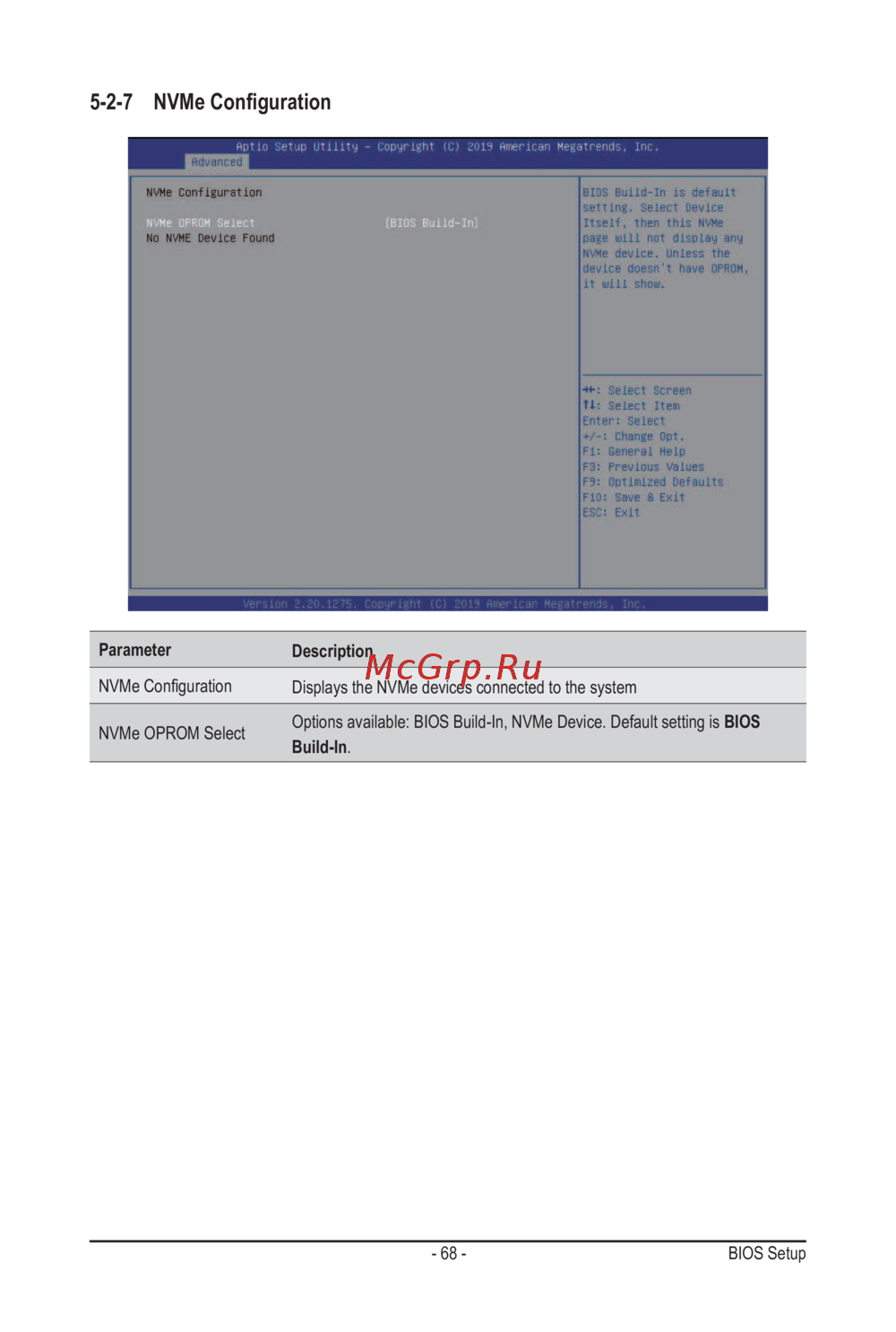

5-2-7 NVMe Conguration

Parameter

Description

NVMe Conguration

Displays the NVMe devices connected to the system

NVMe OPROM Select

Options available: BIOS Build-In, NVMe Device. Default setting is BIOS

Build-In.
