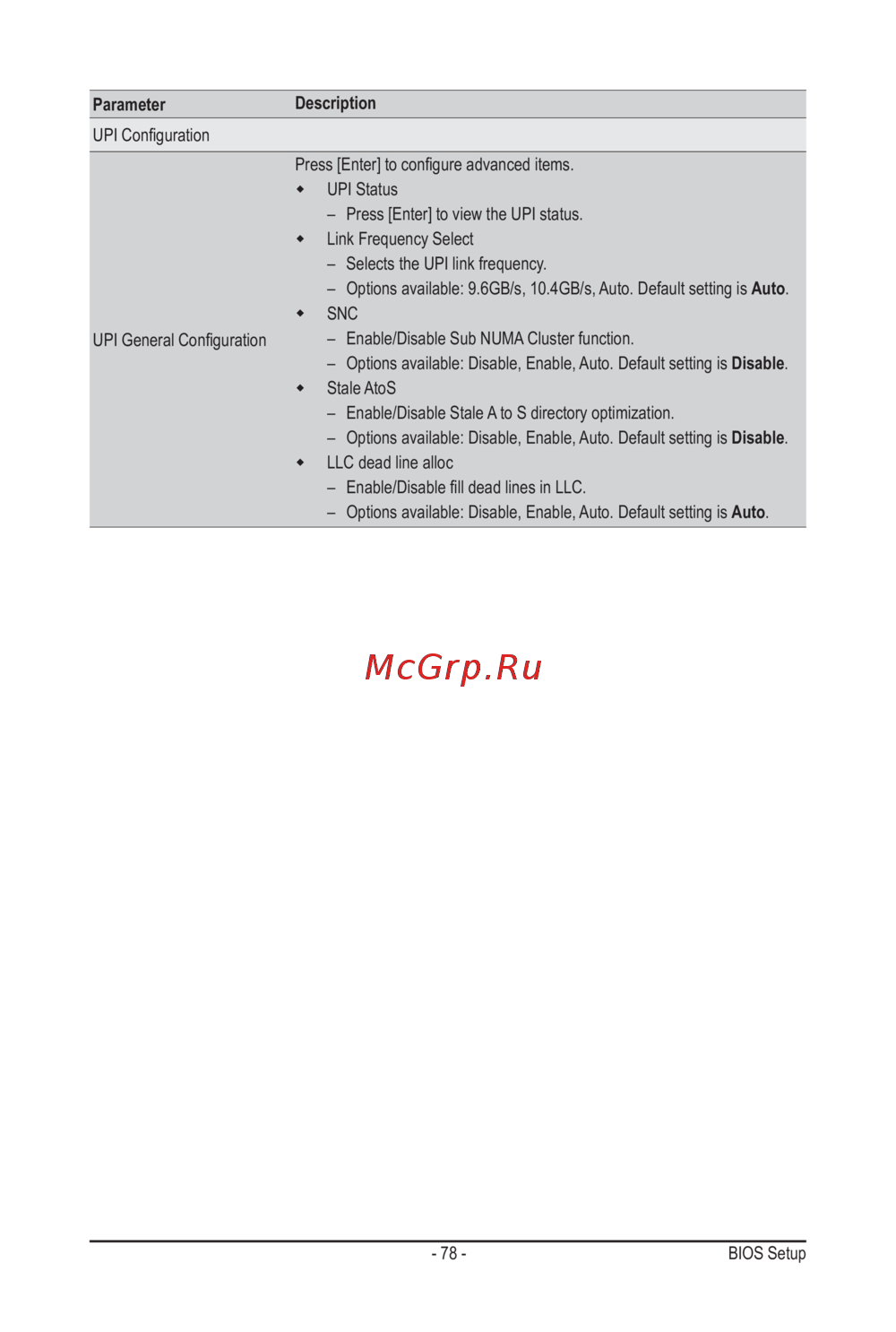

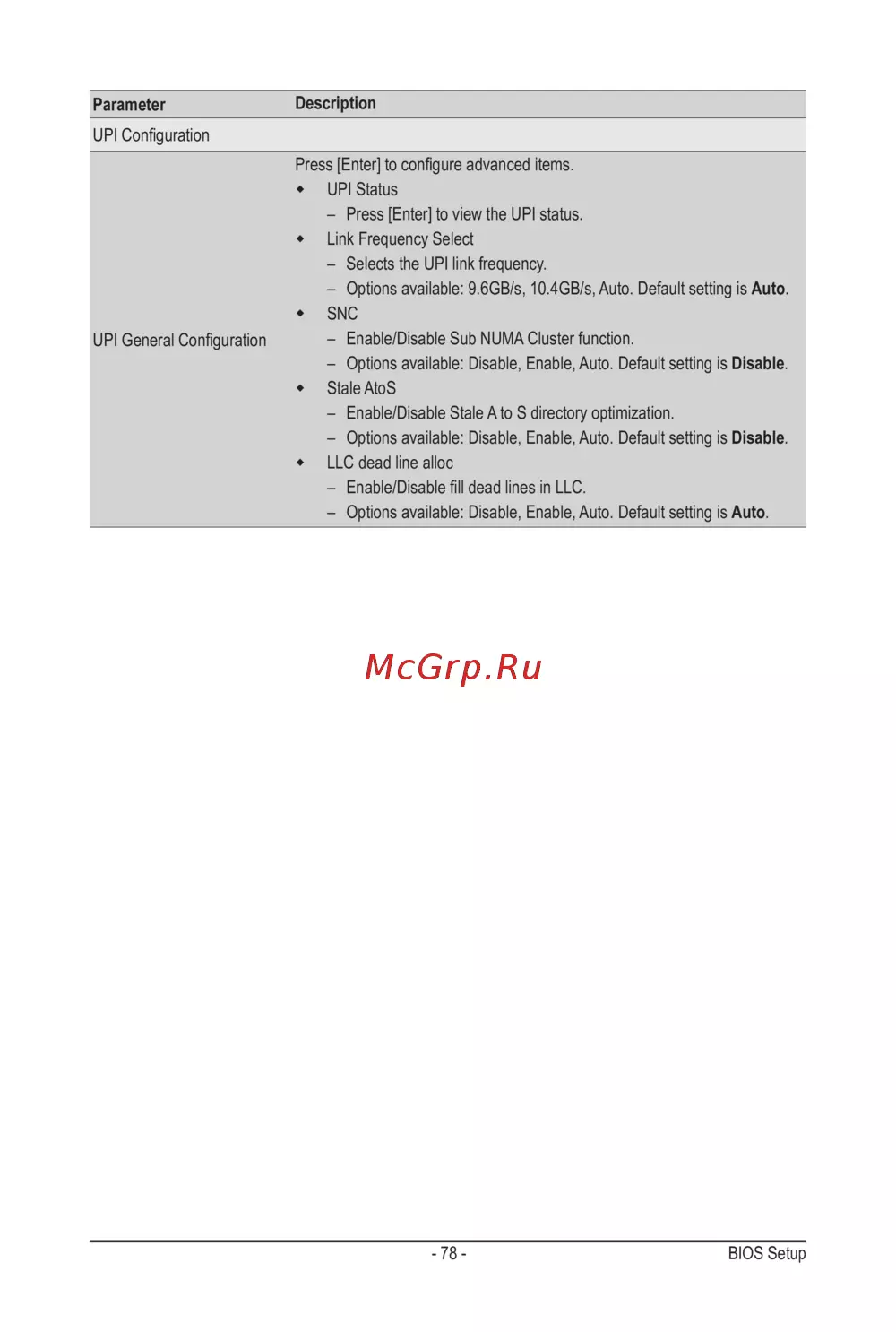

- 78 - BIOS Setup

Parameter

Description

UPI Conguration

UPI General Conguration

Press [Enter] to congure advanced items.



UPI Status

– Press [Enter] to view the UPI status.



Link Frequency Select

– Selects the UPI link frequency.

– Options available: 9.6GB/s, 10.4GB/s, Auto. Default setting is Auto.



SNC

– Enable/Disable Sub NUMA Cluster function.

– Options available: Disable, Enable, Auto. Default setting is Disable.



Stale AtoS

– Enable/Disable Stale A to S directory optimization.

– Options available: Disable, Enable, Auto. Default setting is Disable.



LLC dead line alloc

– Enable/Disable ll dead lines in LLC.

– Options available: Disable, Enable, Auto. Default setting is Auto.
