Gigabyte H261-NO0 (rev. 100) [87/113] 3 8 miscellaneous configuration

- 87 - BIOS Setup

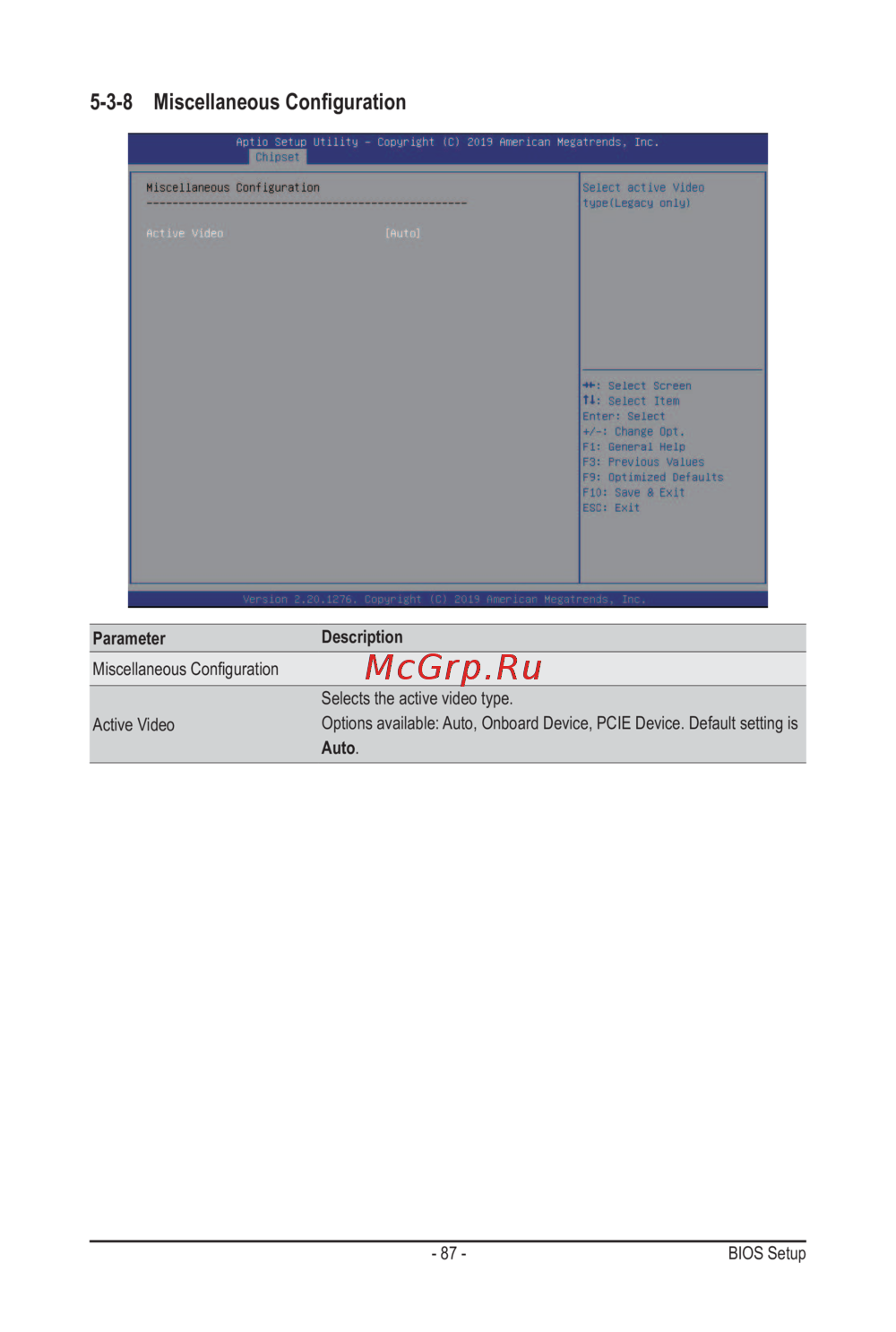

5-3-8 Miscellaneous Conguration

Parameter

Description

Miscellaneous Conguration

Active Video

Selects the active video type.

Options available: Auto, Onboard Device, PCIE Device. Default setting is

Auto.
