- 96 - BIOS Setup

5-4-2 View FRU Information

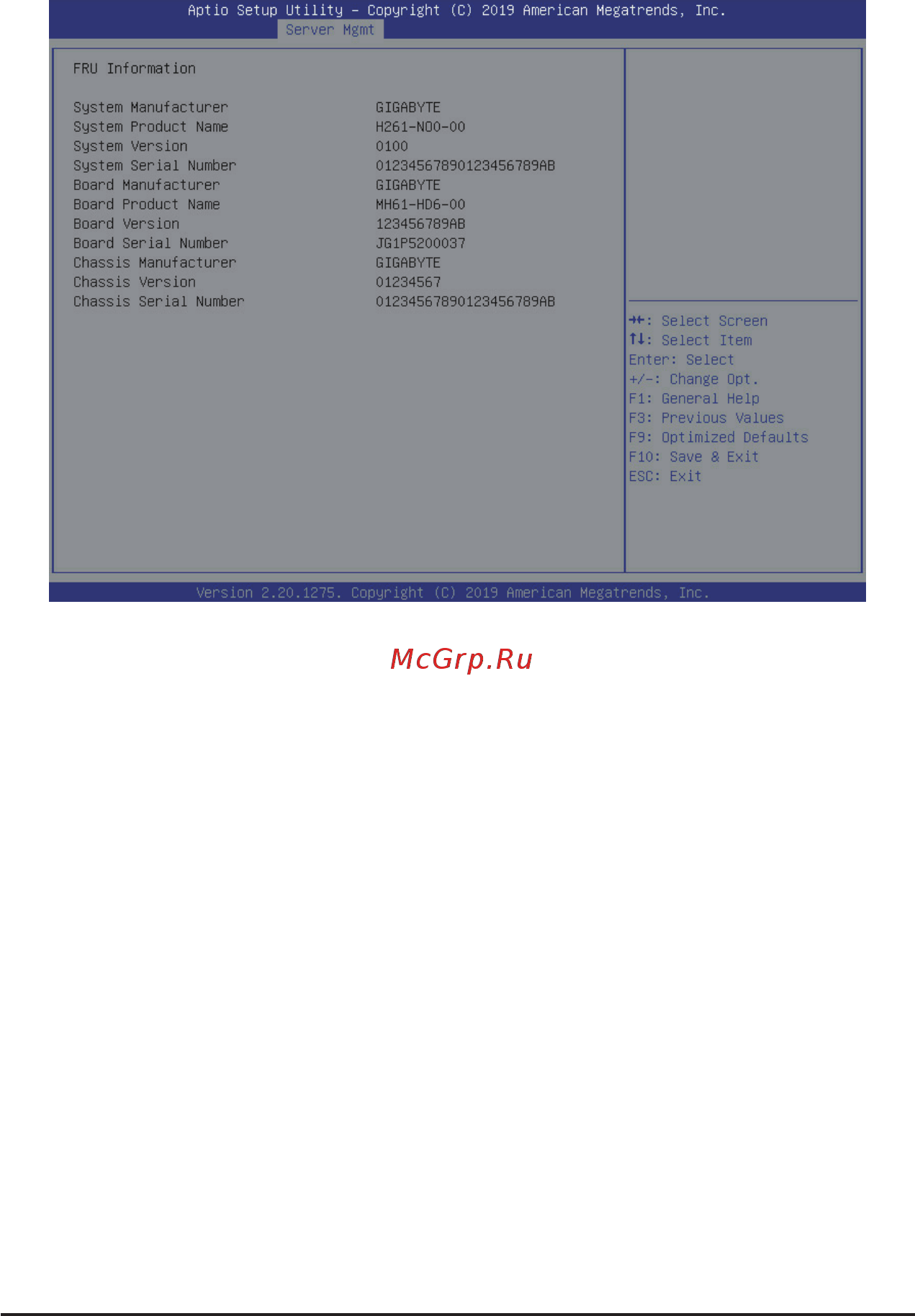

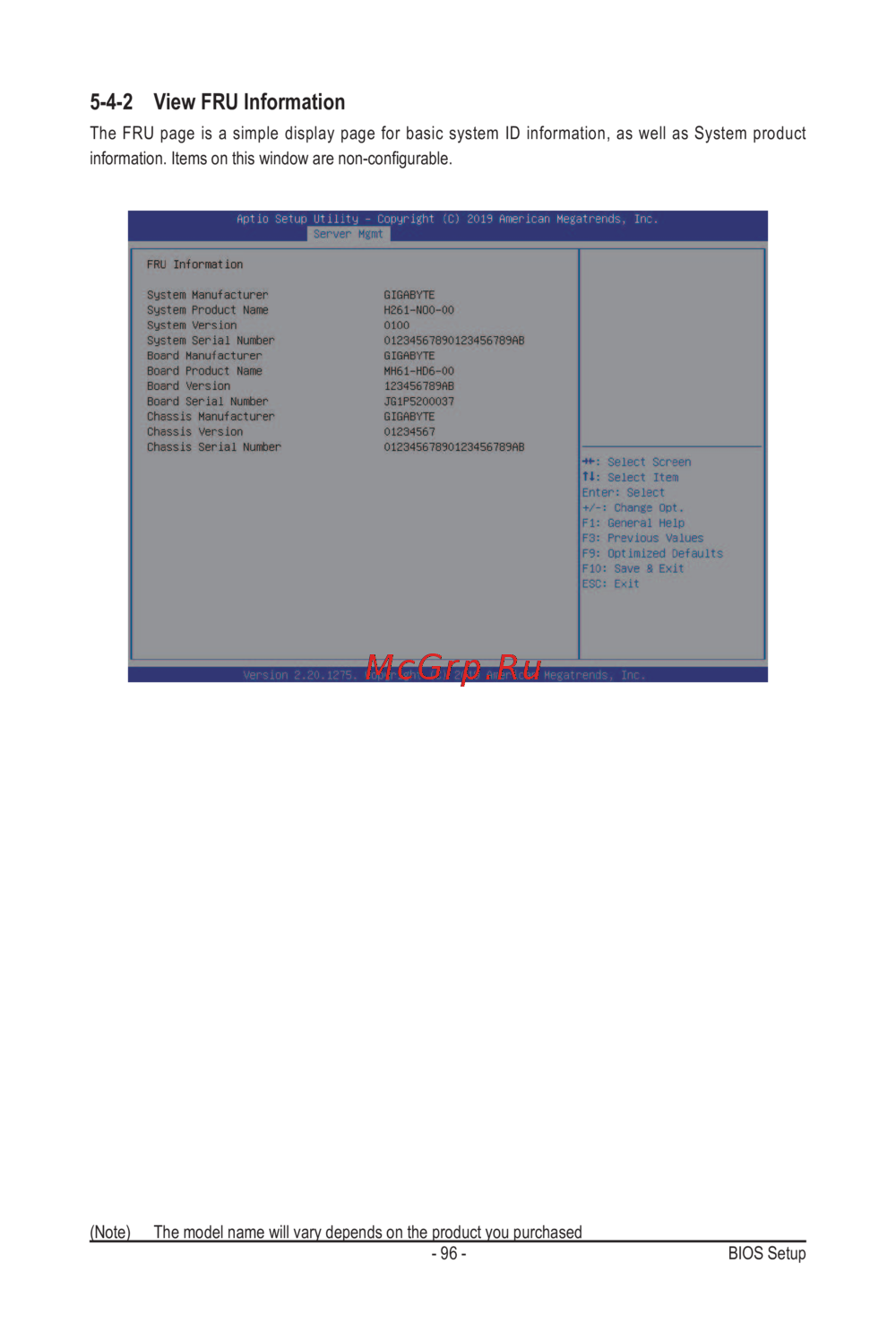

The FRU page is a simple display page for basic system ID information, as well as System product

information. Items on this window are non-congurable.

(Note) The model name will vary depends on the product you purchased
