Hardware Installation - 10 -

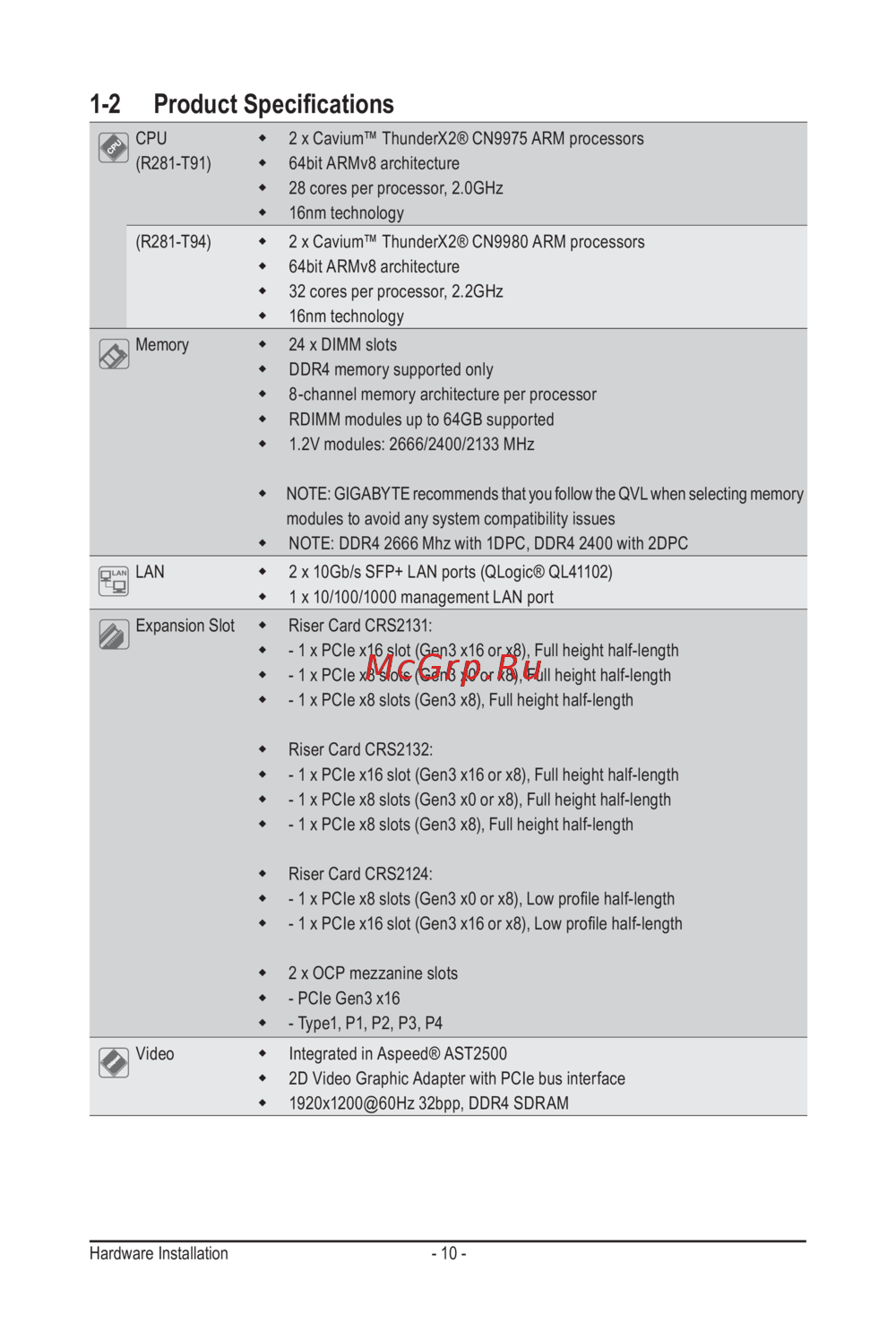

1-2 Product Specications
CPU
(R281-T91)
2 x Cavium™ ThunderX2® CN9975 ARM processors
64bit ARMv8 architecture
28 cores per processor, 2.0GHz
16nm technology
(R281-T94) 2 x Cavium™ ThunderX2® CN9980 ARM processors
64bit ARMv8 architecture
32 cores per processor, 2.2GHz
16nm technology
Memory 24 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 64GB supported
1.2V modules: 2666/2400/2133 MHz
NOTE: GIGABYTE recommends that you follow the QVL when selecting memory
modules to avoid any system compatibility issues
NOTE: DDR4 2666 Mhz with 1DPC, DDR4 2400 with 2DPC
LAN 2 x 10Gb/s SFP+ LAN ports (QLogic® QL41102)
1 x 10/100/1000 management LAN port
Expansion Slot Riser Card CRS2131:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x8), Full height half-length
Riser Card CRS2132:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
- 1 x PCIe x8 slots (Gen3 x8), Full height half-length
Riser Card CRS2124:
- 1 x PCIe x8 slots (Gen3 x0 or x8), Low prole half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Low prole half-length
2 x OCP mezzanine slots
- PCIe Gen3 x16
- Type1, P1, P2, P3, P4
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
