- 13 - Hardware Installation

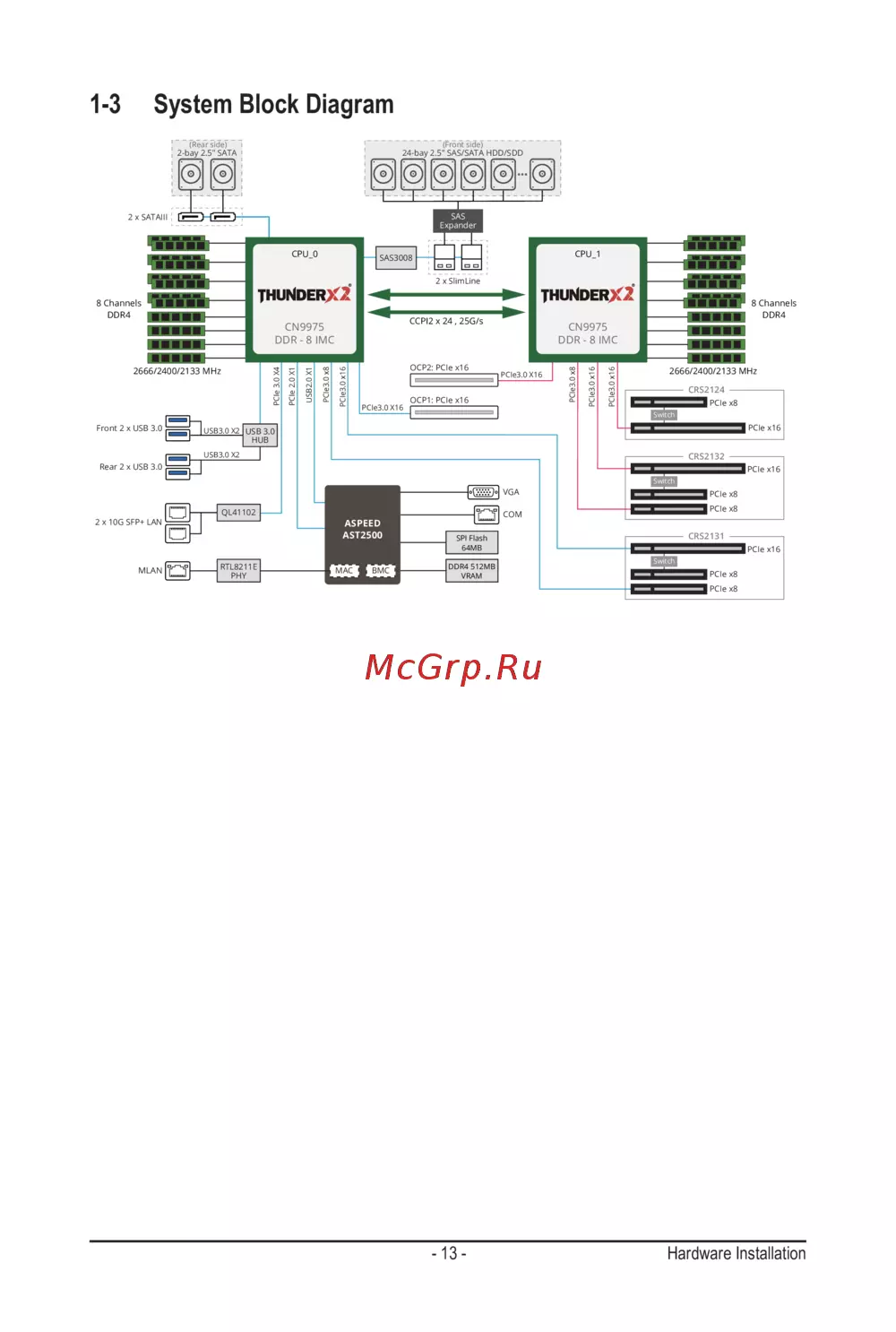

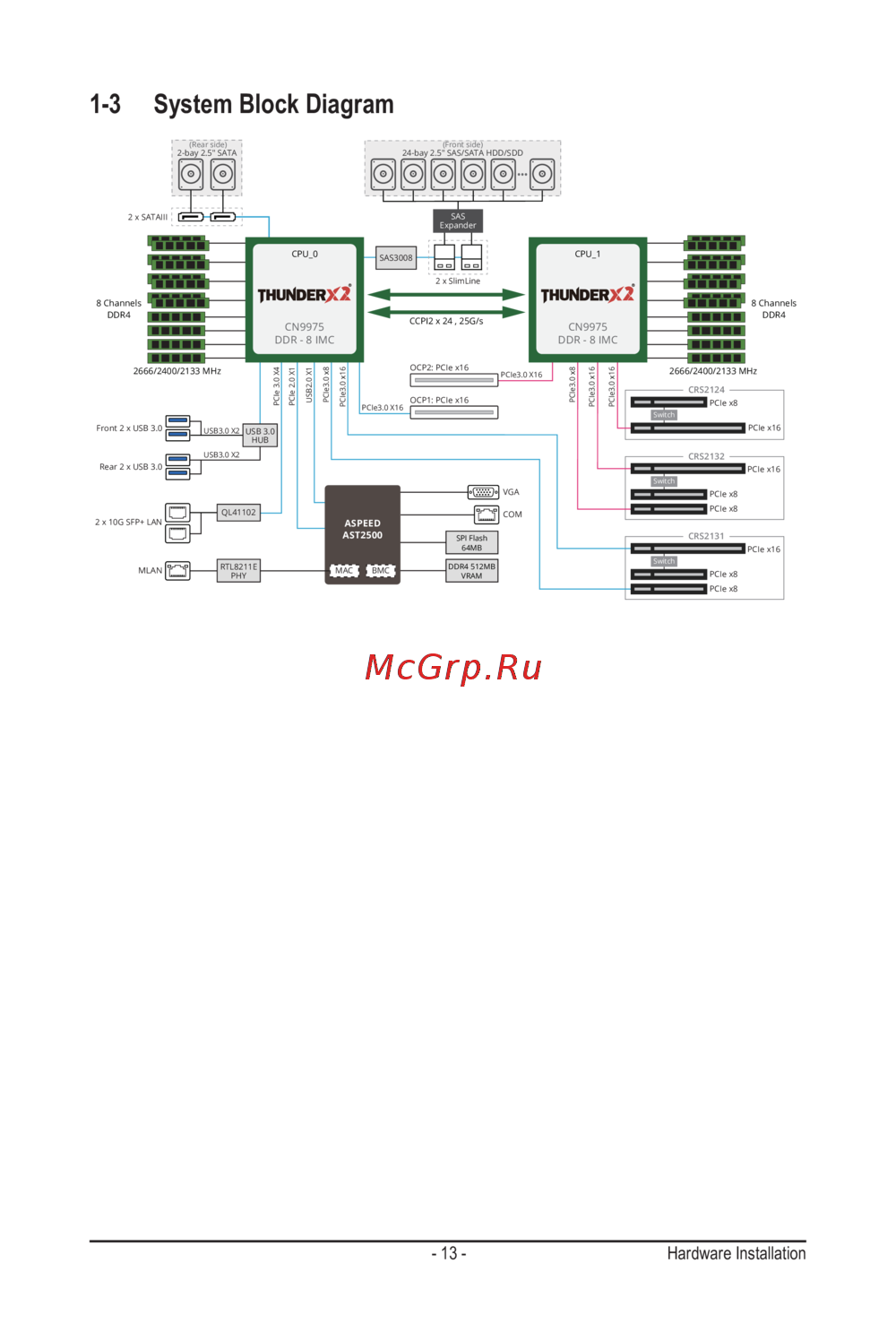

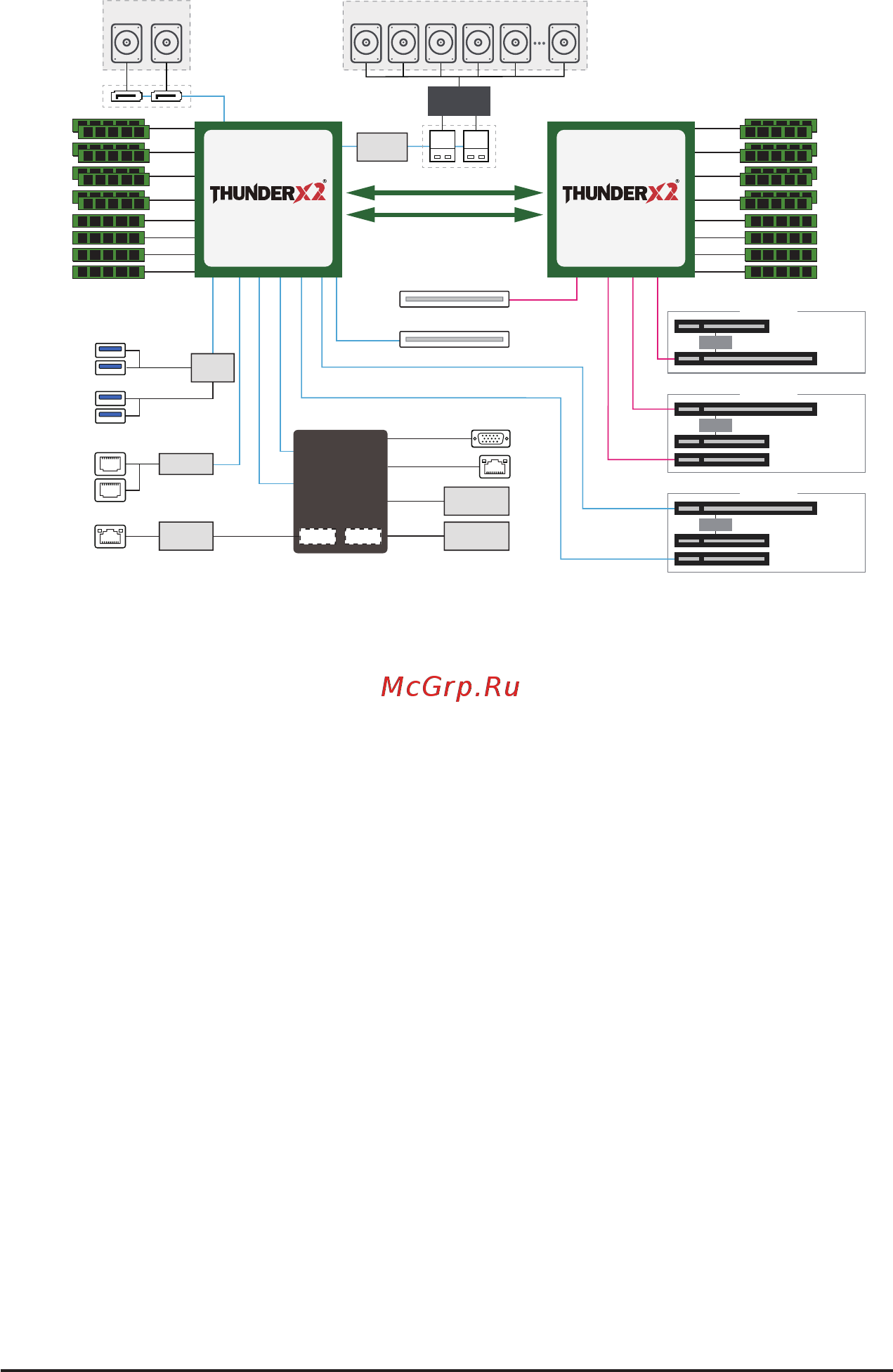

1-3 System Block Diagram
SPI Flash
64MB
8 Channels
DDR4
USB2.0 X1
PCIe 2.0 X1
PCIe 3.0 X4
QL41102
USB 3.0
HUB
Rear 2 x USB 3.0
Front 2 x USB 3.0
2 x 10G SFP+ LAN
DDR4 512MB
VRAM
ASPEED
AST2500
MLAN
MAC BMC
VGA
COM
PCIe3.0 X16
PCIe3.0 X16
USB3.0 X2
USB3.0 X2
PCIe3.0
x
8
PCIe3.0
x
16
8 Channels
DDR4
2666/2400/2133 MHz 2666/2400/2133 MHz
CCPI2 x 24 , 25G/s
OCP1
: PCIe x16
OCP2
: PCIe x16
RTL8211E
PHY
PCIe3.0
x
16
PCIe3.0
x
8
PCIe3.0
x
16
Switch
PCIe x16
PCIe x8
PCIe x8
CRS2131
Switch
PCIe x16
PCIe x8
PCIe x8
CRS2132
Switch
PCIe x8
PCIe x16
CRS2124
CN9975
DDR - 8 IMC
CPU_1
2 x
SATAIII
2 x SlimLine
SAS3008
SAS
Expander
CN9975
DDR - 8 IMC
CPU_0
(Rear side)
2-bay 2.5" SATA
(Front side)
24-bay 2.5" SAS/SATA HDD/SDD
