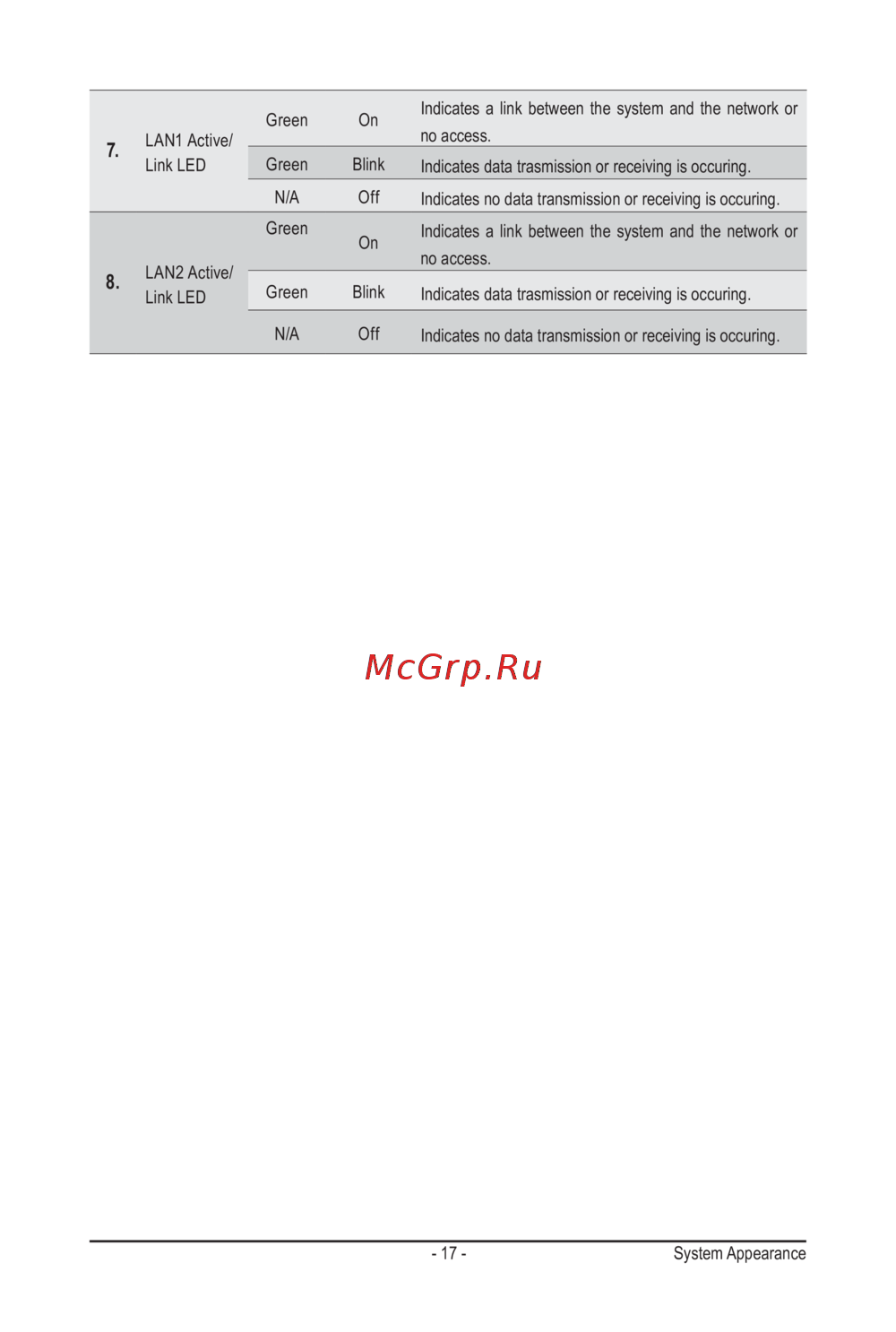

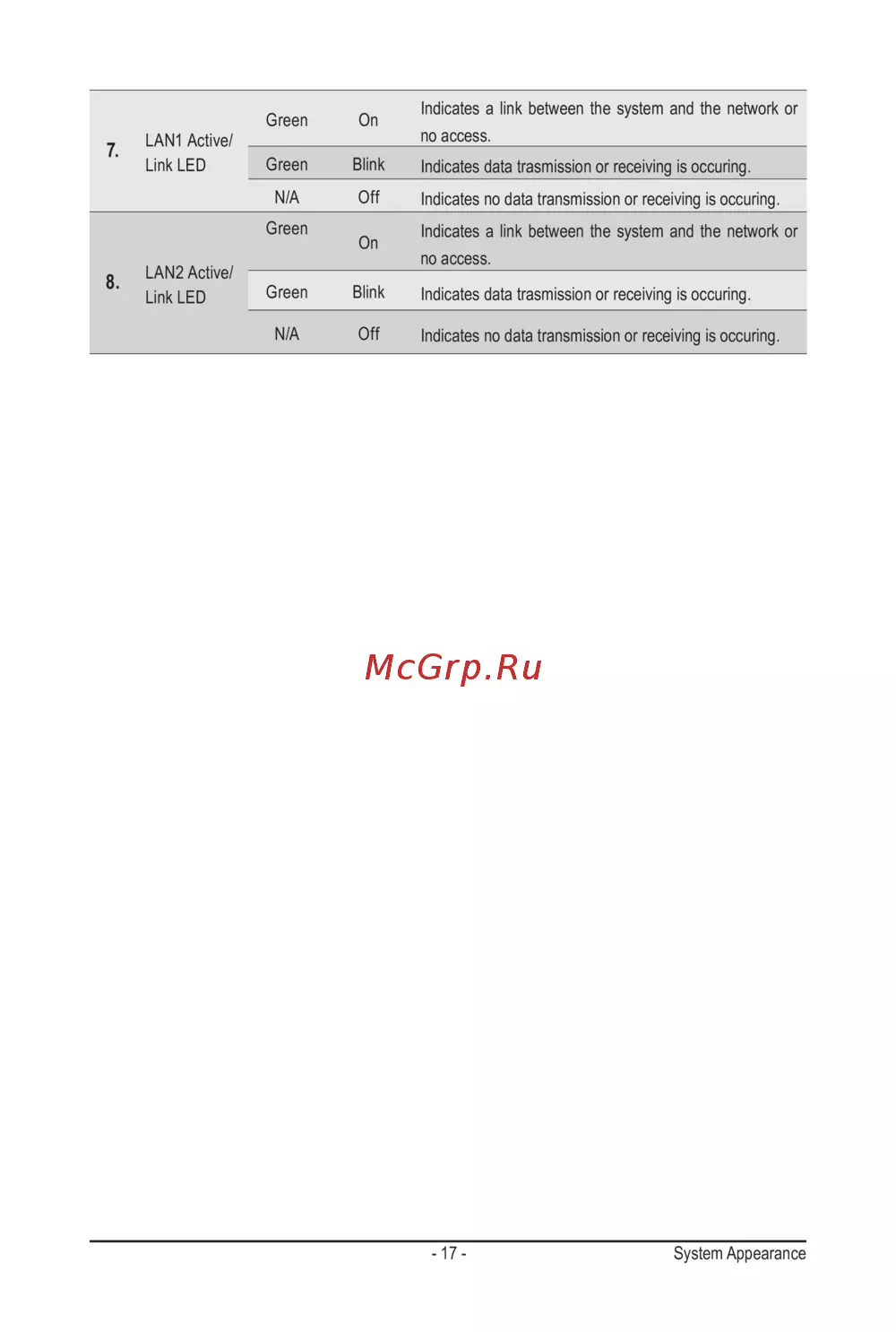

- 17 - System Appearance
7.
LAN1 Active/
Link LED
Green On
Indicates a link between the system and the network or
no access.
Green Blink
Indicates data trasmission or receiving is occuring.
N/A Off
Indicates no data transmission or receiving is occuring.
8.
LAN2 Active/
Link LED
Green
On
Indicates a link between the system and the network or
no access.
Green Blink
Indicates data trasmission or receiving is occuring.
N/A Off
Indicates no data transmission or receiving is occuring.
