- 19 - System Appearance

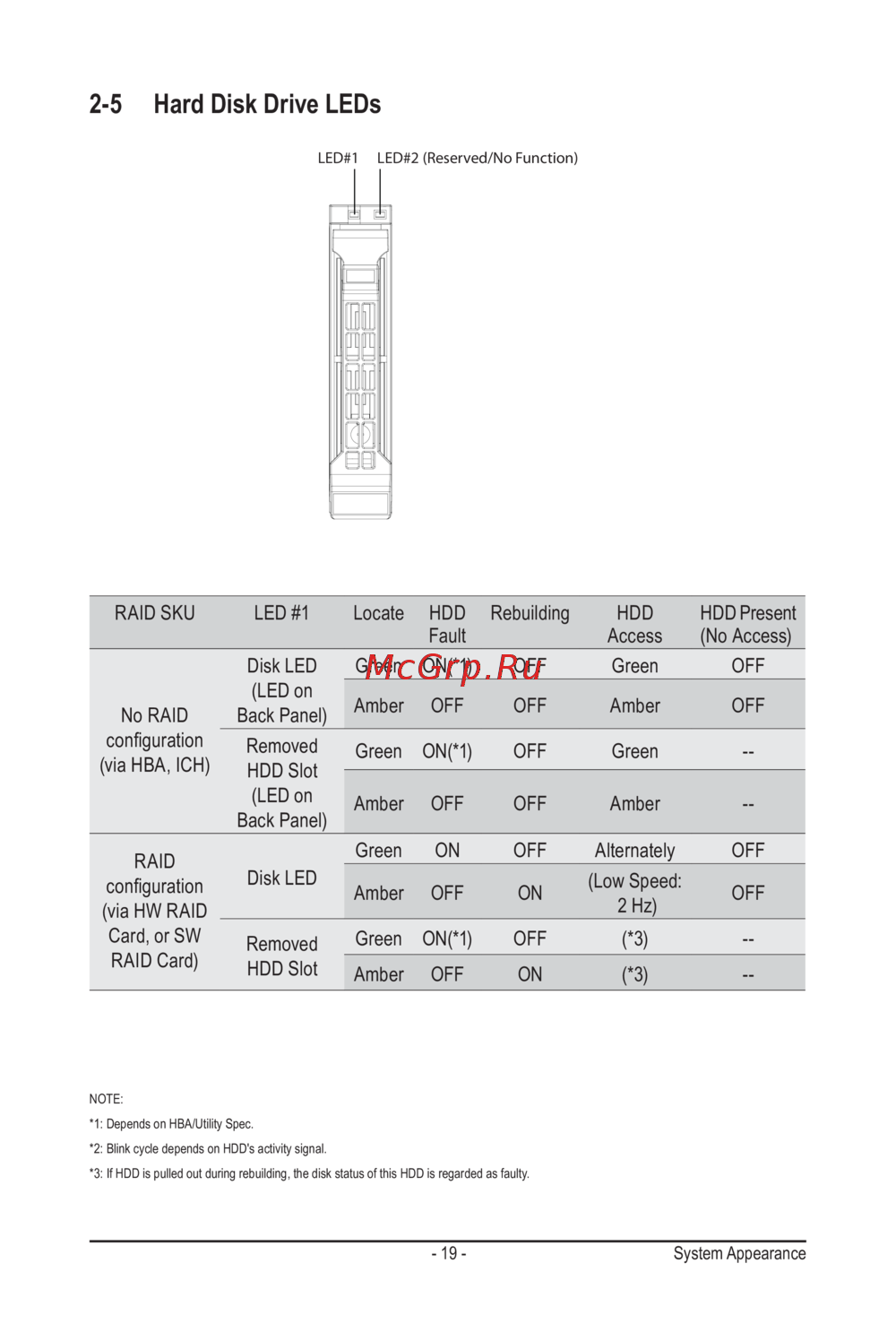

2-5 Hard Disk Drive LEDs

LED#1

LED#2 (Reserved/No Function)

RAID SKU LED #1 Locate HDD

Fault

Rebuilding HDD

Access

HDD Present

(No Access)

No RAID

conguration

(via HBA, ICH)

Disk LED

(LED on

Back Panel)

Green ON(*1) OFF Green OFF

Amber OFF OFF Amber OFF

Removed

HDD Slot

(LED on

Back Panel)

Green ON(*1) OFF Green --

Amber OFF OFF Amber --

RAID

conguration

(via HW RAID

Card, or SW

RAID Card)

Disk LED

Green ON OFF Alternately OFF

Amber OFF ON

(Low Speed:

2 Hz)

OFF

Removed

HDD Slot

Green ON(*1) OFF (*3) --

Amber OFF ON (*3) --

NOTE:

*1: Depends on HBA/Utility Spec.

*2: Blink cycle depends on HDD's activity signal.

*3: If HDD is pulled out during rebuilding, the disk status of this HDD is regarded as faulty.
