Gigabyte R281-T94 (rev. 100) [20/68] Psu led

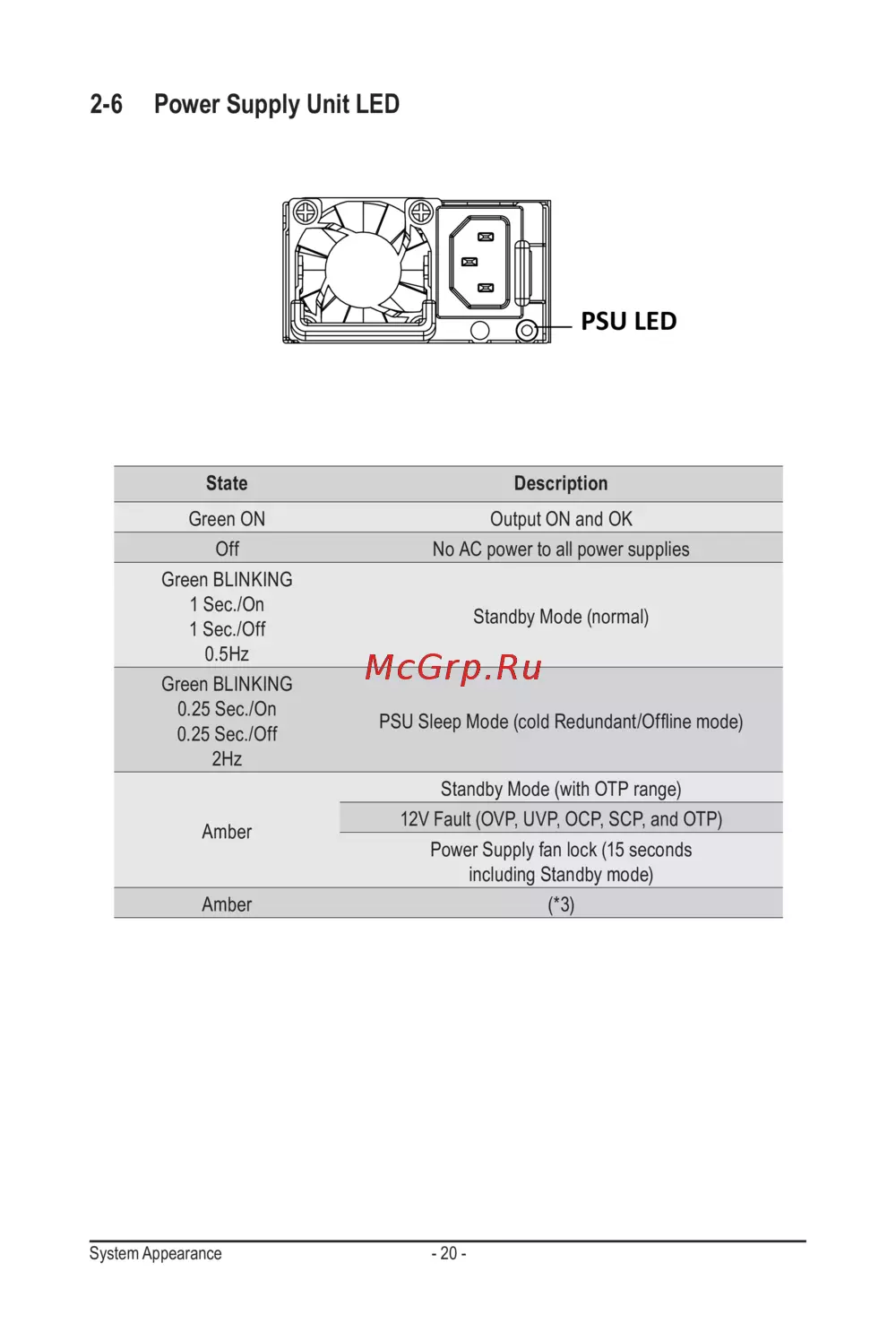

System Appearance - 20 -

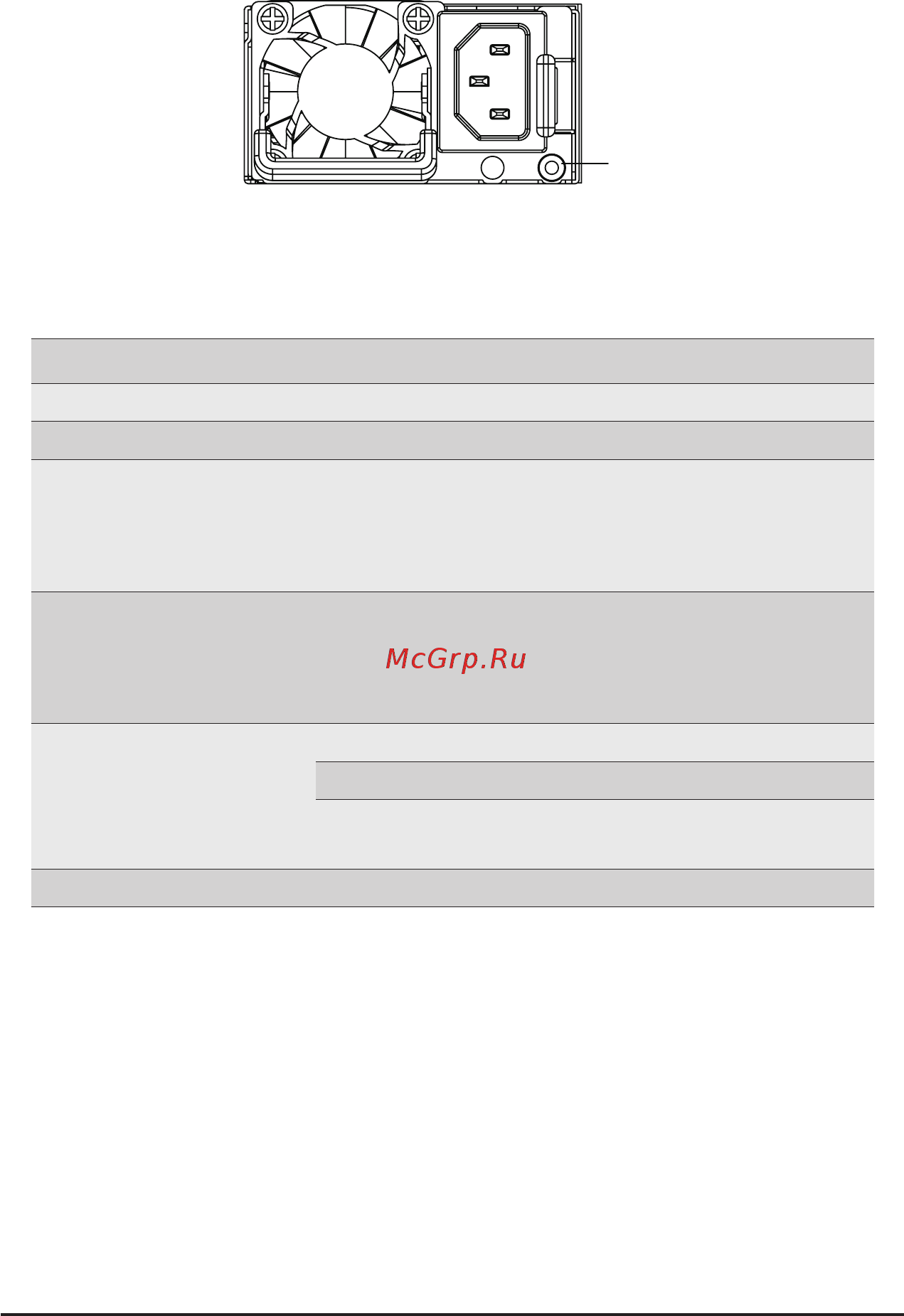

2-6 Power Supply Unit LED

PSU LED

State Description

Green ON Output ON and OK

Off No AC power to all power supplies

Green BLINKING

1 Sec./On

1 Sec./Off

0.5Hz

Standby Mode (normal)

Green BLINKING

0.25 Sec./On

0.25 Sec./Off

2Hz

PSU Sleep Mode (cold Redundant/Ofine mode)

Amber

Standby Mode (with OTP range)

12V Fault (OVP, UVP, OCP, SCP, and OTP)

Power Supply fan lock (15 seconds

including Standby mode)

Amber (*3)
