Gigabyte R281-T94 (rev. 100) [23/68] 2 removing and installing the fan duct

- 23 - System Hardware Installation

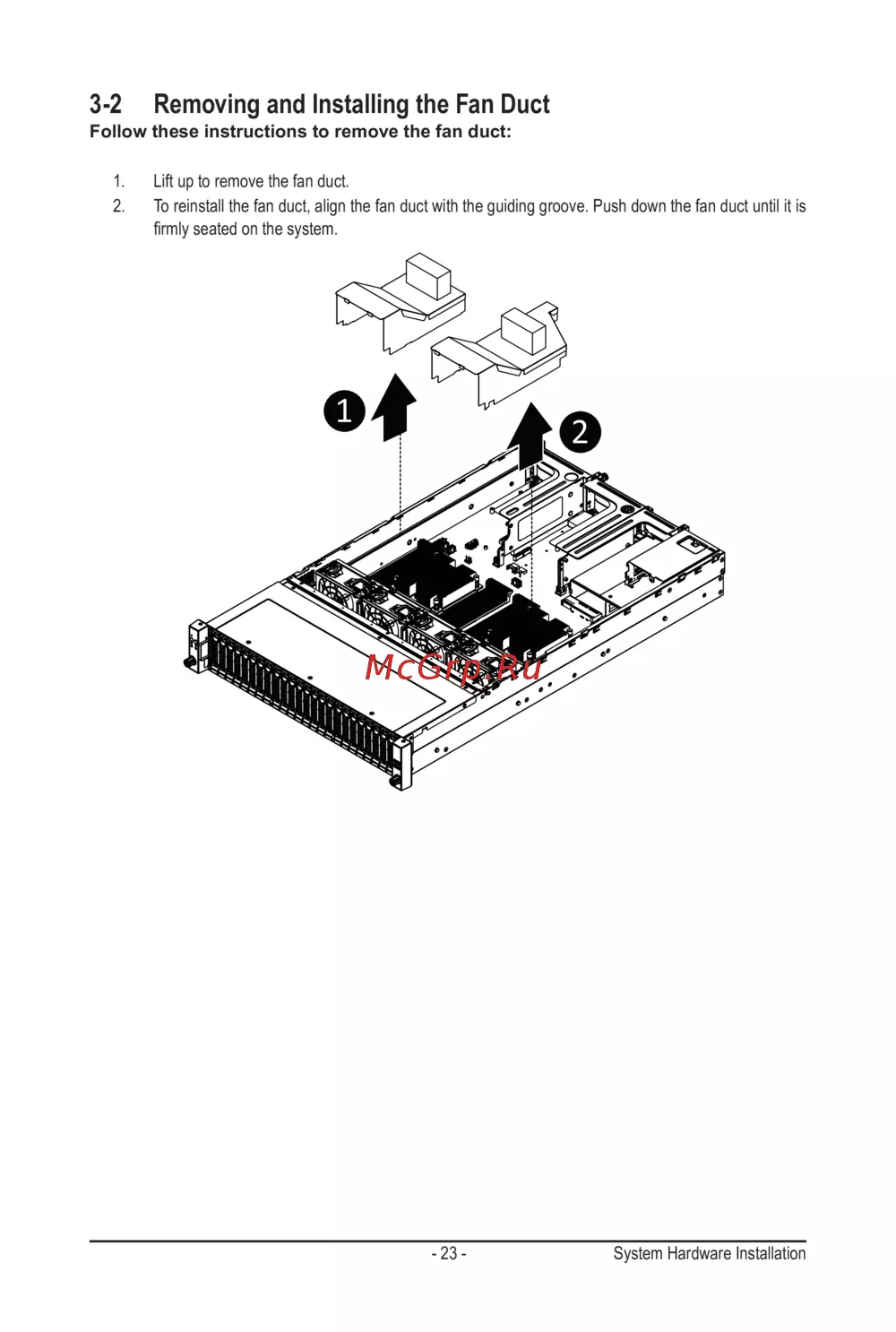

3-2 Removing and Installing the Fan Duct

Follow these instructions to remove the fan duct:

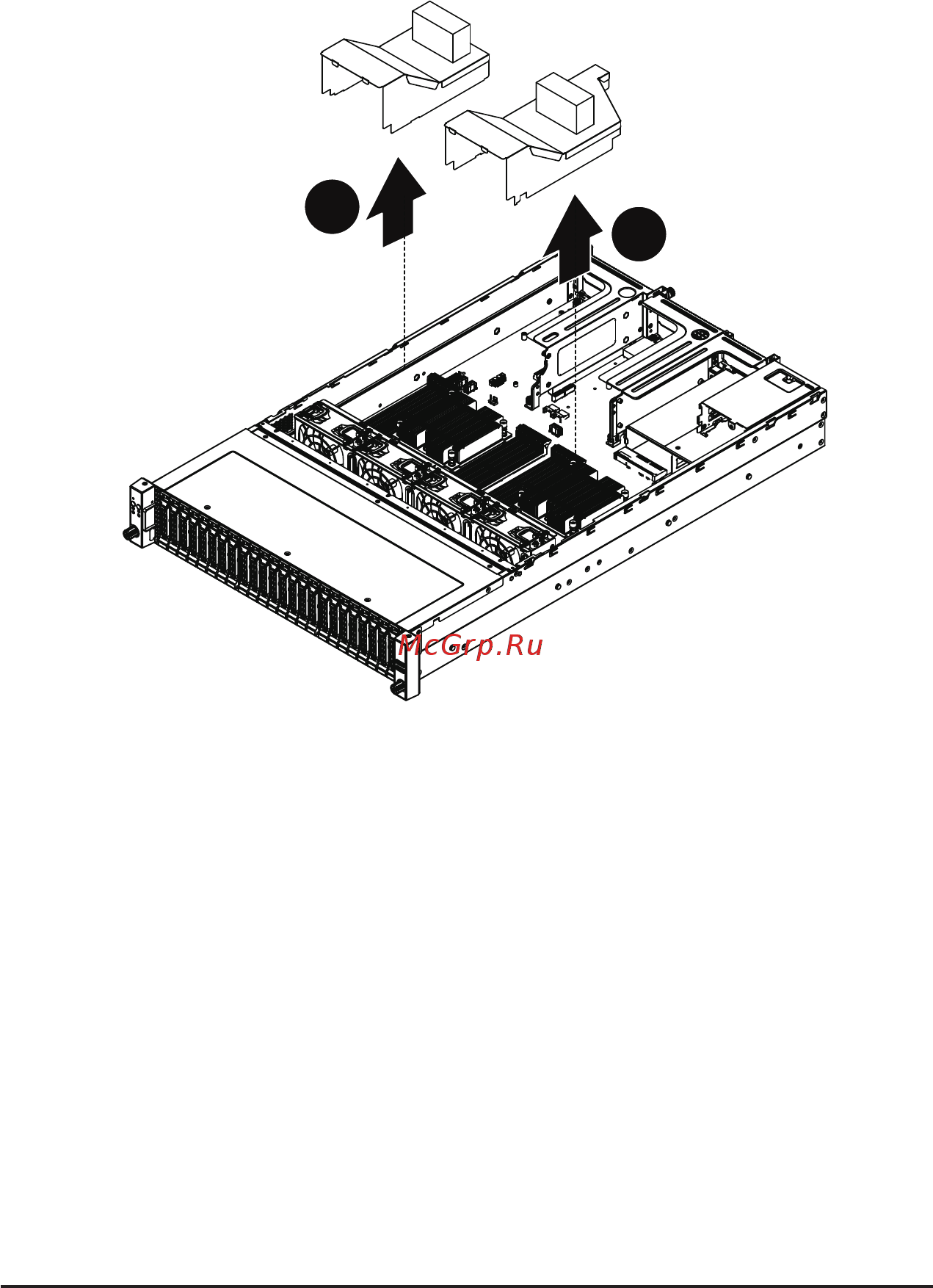

1. Lift up to remove the fan duct.

2. To reinstall the fan duct, align the fan duct with the guiding groove. Push down the fan duct until it is

rmly seated on the system.
