Gigabyte R281-T94 (rev. 100) [28/68] 5 removing and installing the hard disk drive

System Hardware Installation - 28 -

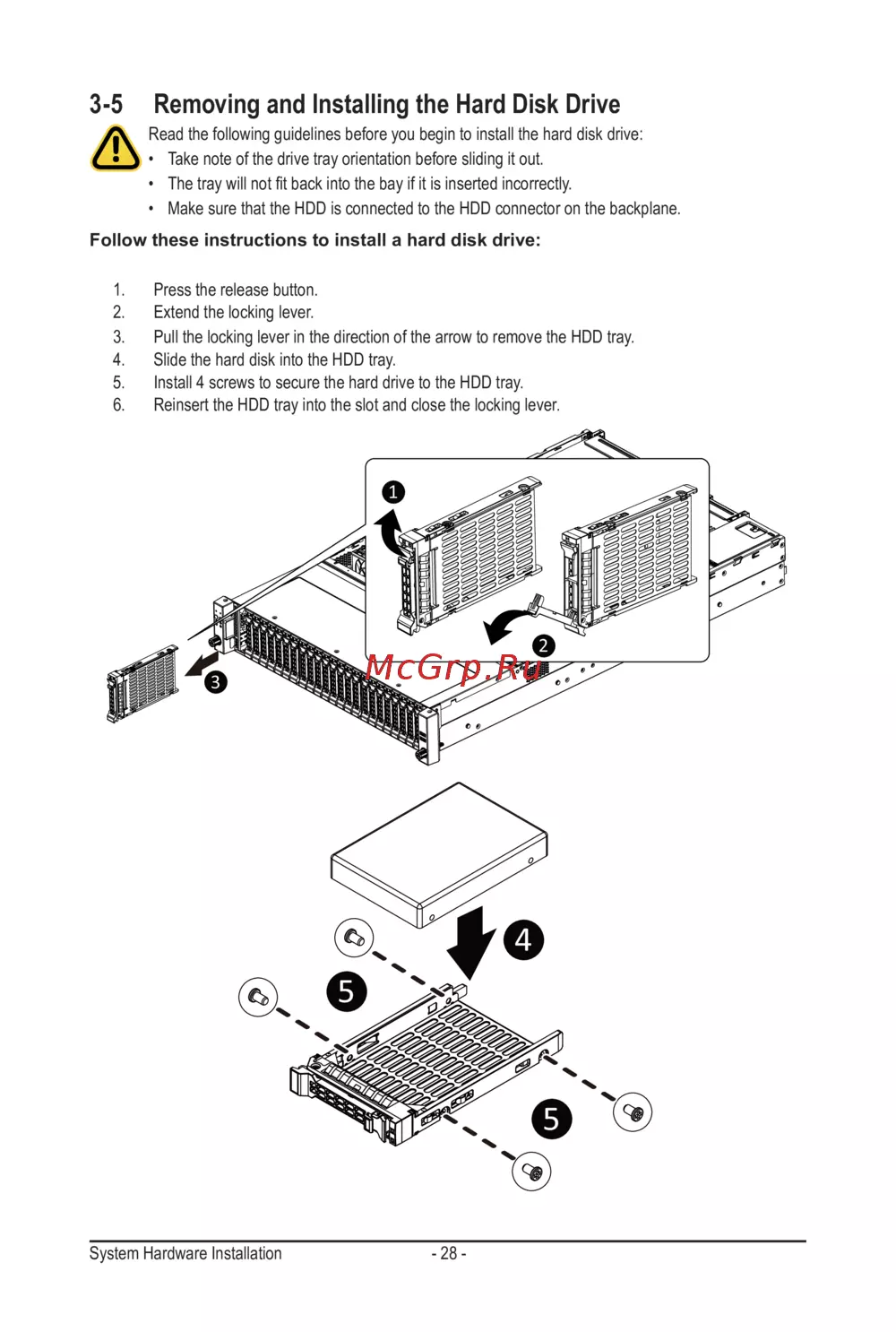

3-5 Removing and Installing the Hard Disk Drive

Read the following guidelines before you begin to install the hard disk drive:

• Take note of the drive tray orientation before sliding it out.

• The tray will not t back into the bay if it is inserted incorrectly.

• Make sure that the HDD is connected to the HDD connector on the backplane.

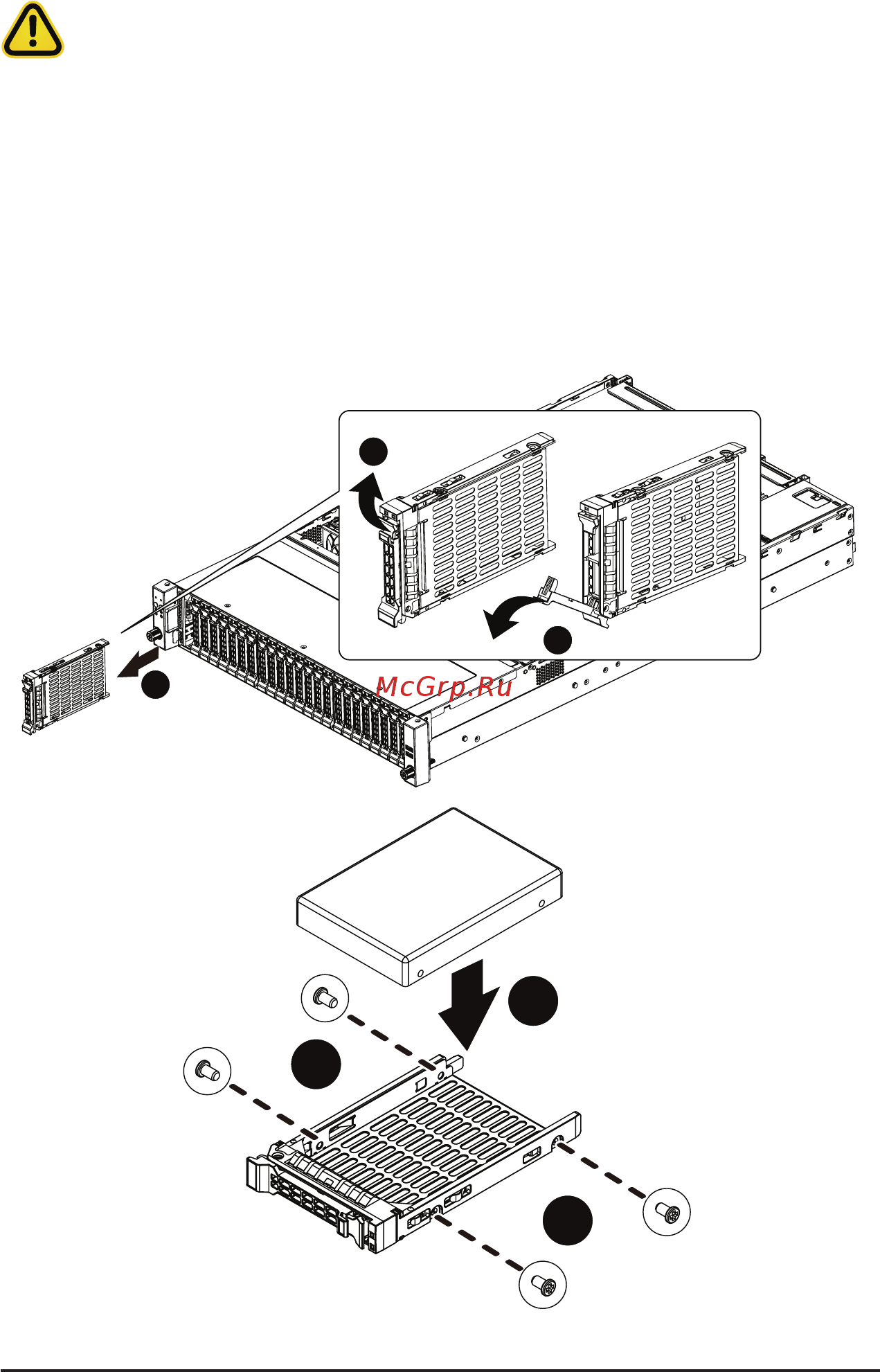

Follow these instructions to install a hard disk drive:

1. Press the release button.

2. Extend the locking lever.

3. Pull the locking lever in the direction of the arrow to remove the HDD tray.

4. Slide the hard disk into the HDD tray.

5. Install 4 screws to secure the hard drive to the HDD tray.

6. Reinsert the HDD tray into the slot and close the locking lever.
