Gigabyte R281-T94 (rev. 100) [32/68] System hardware installation 32

System Hardware Installation - 32 -

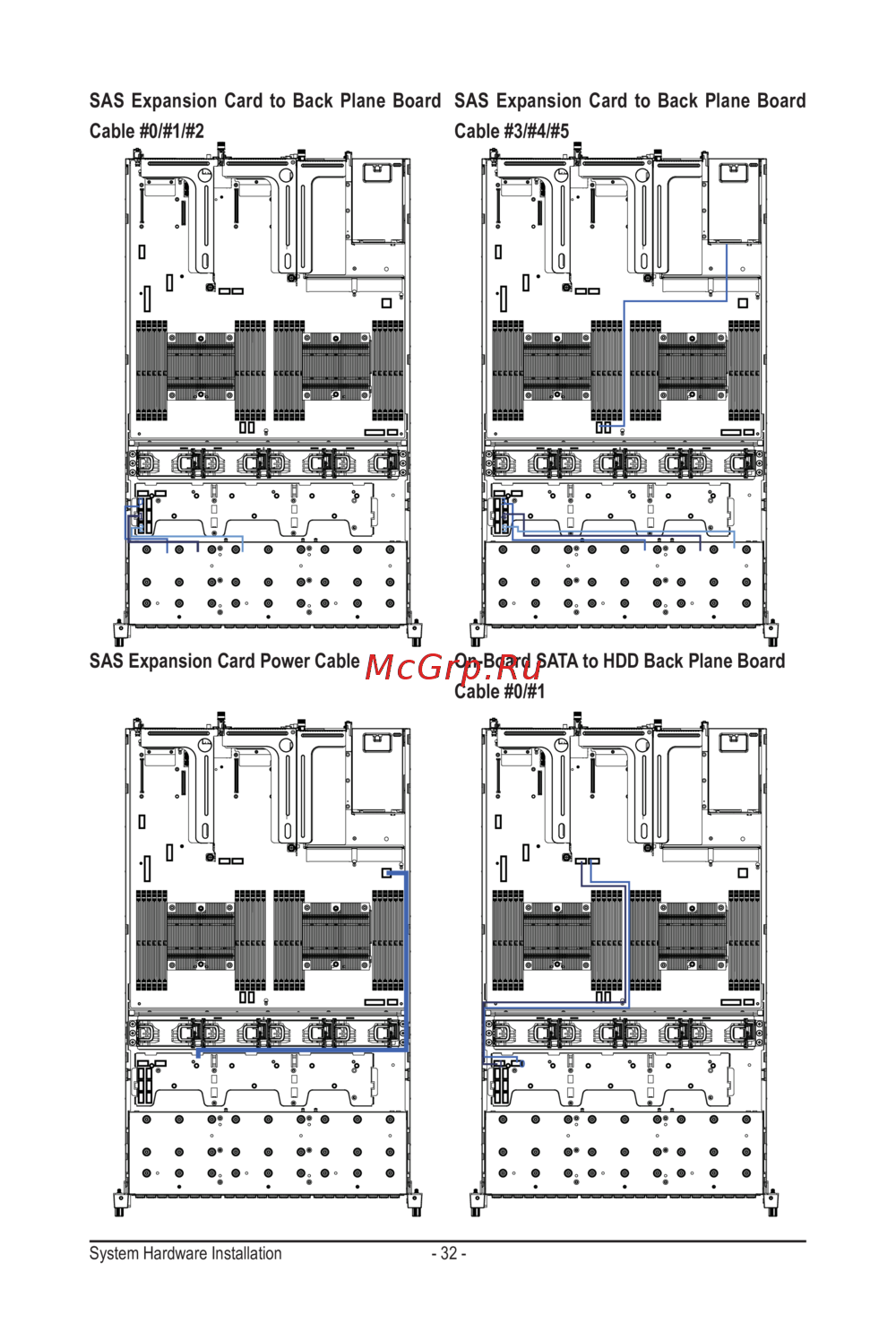

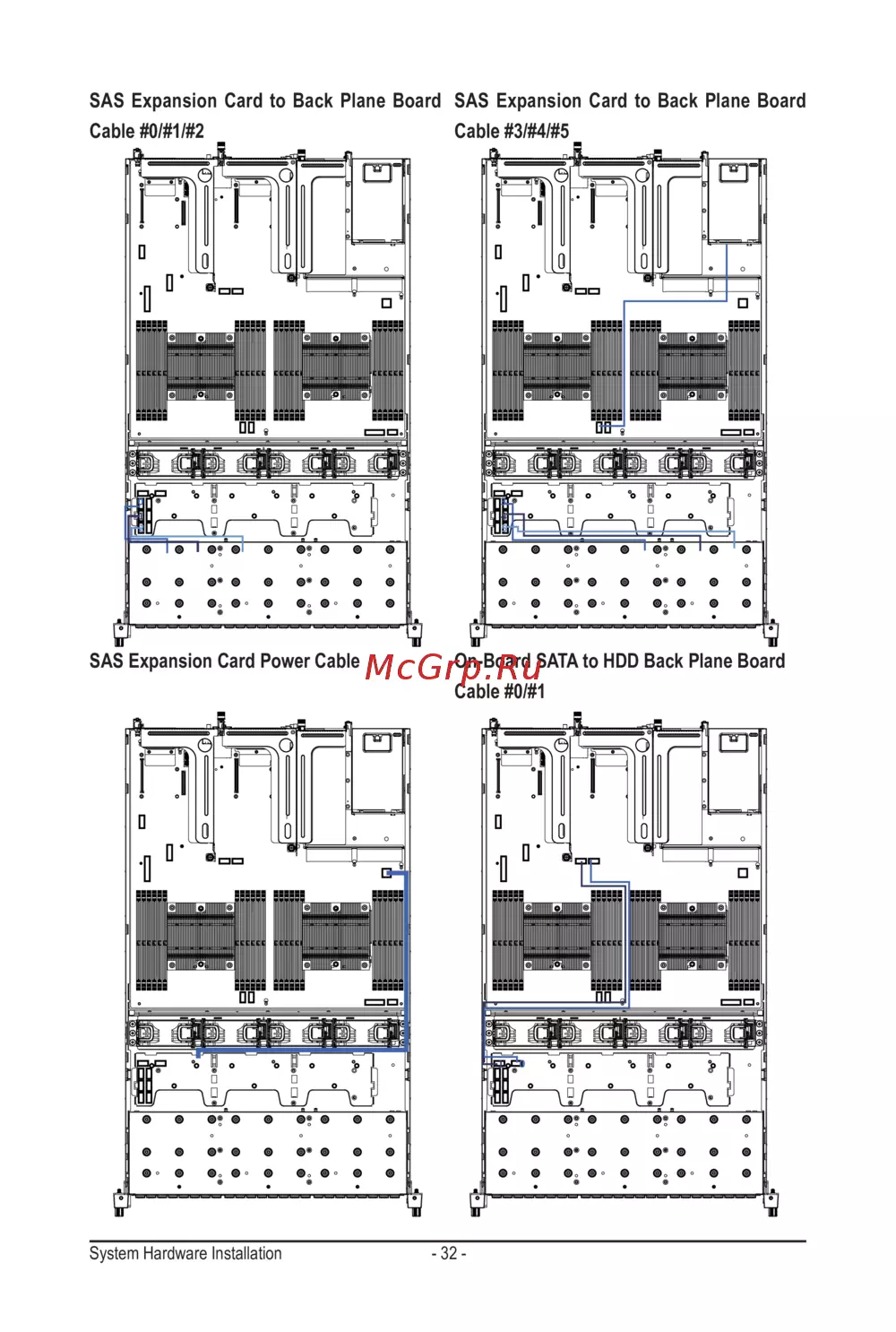

SAS Expansion Card to Back Plane Board

Cable #0/#1/#2

SAS Expansion Card Power Cable

SAS Expansion Card to Back Plane Board

Cable #3/#4/#5

On-Board SATA to HDD Back Plane Board

Cable #0/#1
