- 35 - Motherboard Components

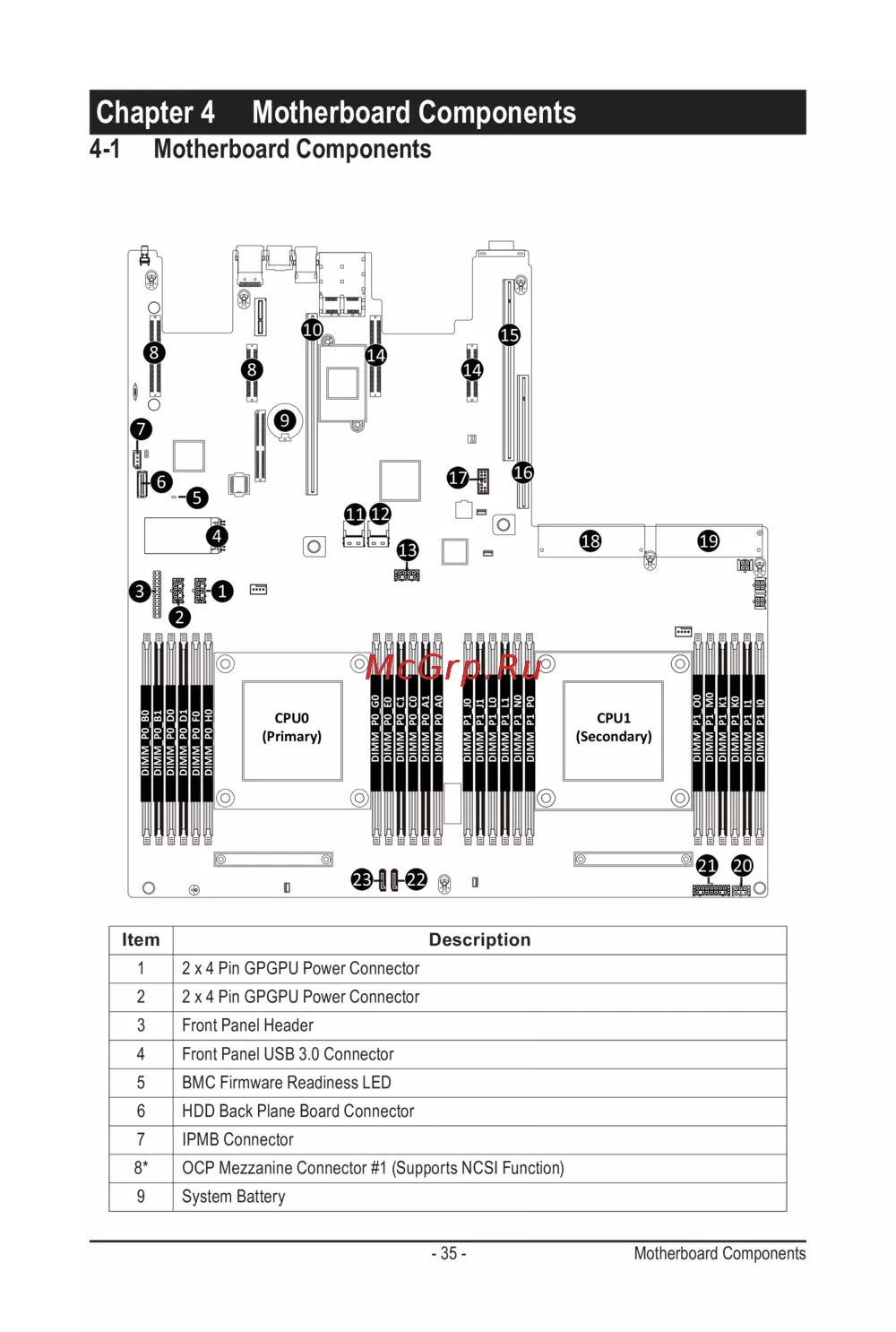

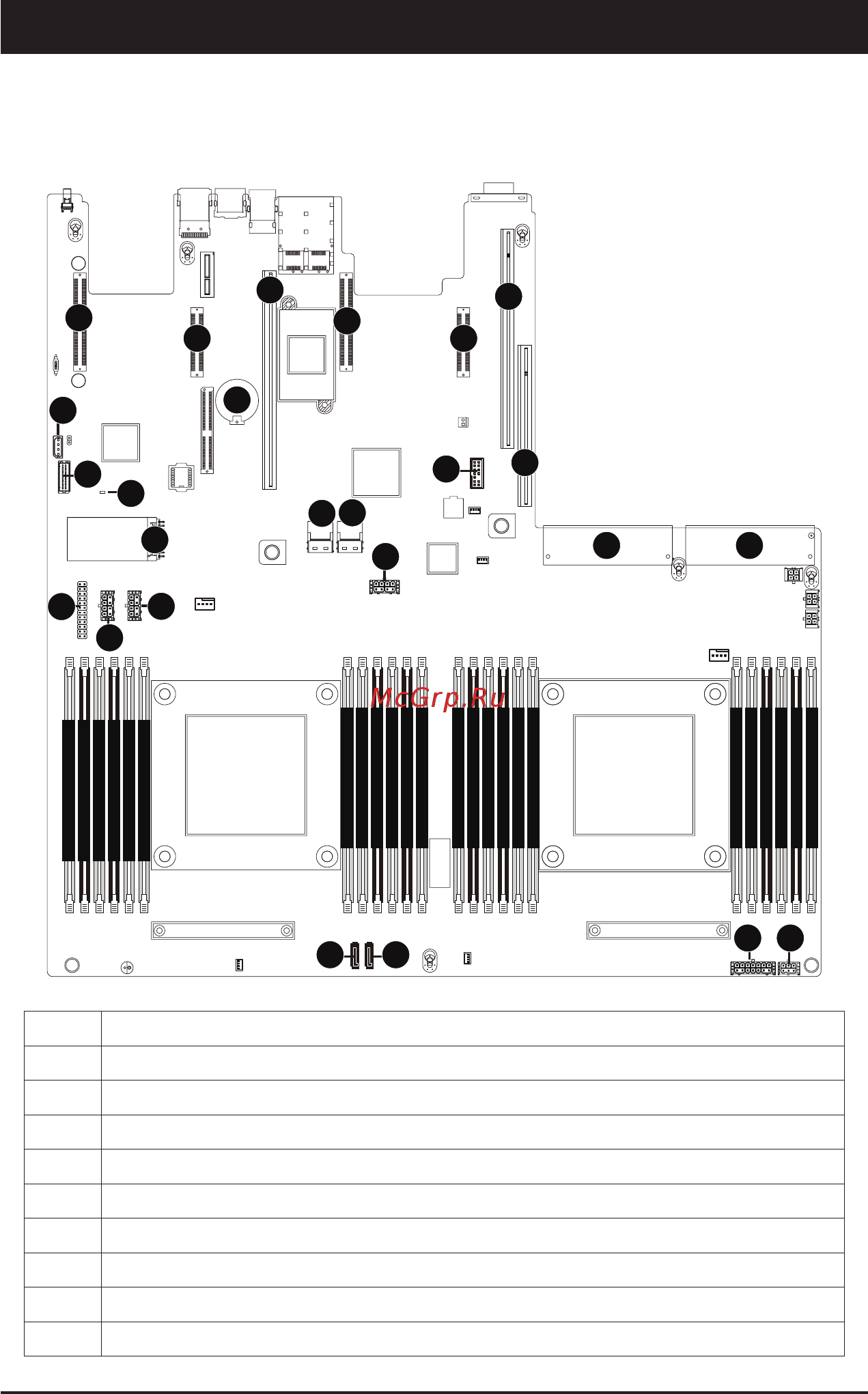

Chapter 4 Motherboard Components

4-1 Motherboard Components

DIMM_P1_I0

DIMM_P1_I1

DIMM_P1_K0

DIMM_P1_K1

DIMM_P1_M0

DIMM_P1_O0

DIMM_P1_P0

DIMM_P1_N0

DIMM_P1_L1

DIMM_P1_L0

DIMM_P1_J1

DIMM_P1_J0

CPU1

(Secondary)

CPU0

(Primary)

DIMM_P0_A0

DIMM_P0_A1

DIMM_P0_C0

DIMM_P0_C1

DIMM_P0_E0

DIMM_P0_G0

DIMM_P0_H0

DIMM_P0_F0

DIMM_P0_D1

DIMM_P0_D0

DIMM_P0_B1

DIMM_P0_B0

18 19

2021

2223

OFF

Item Description

1 2 x 4 Pin GPGPU Power Connector

2 2 x 4 Pin GPGPU Power Connector

3 Front Panel Header

4 Front Panel USB 3.0 Connector

5 BMC Firmware Readiness LED

6 HDD Back Plane Board Connector

7 IPMB Connector

8* OCP Mezzanine Connector #1 (Supports NCSI Function)

9 System Battery
