BIOS Setup - 42 -
(Note) Corresponds to the model name of GIGABYTE server you are using.

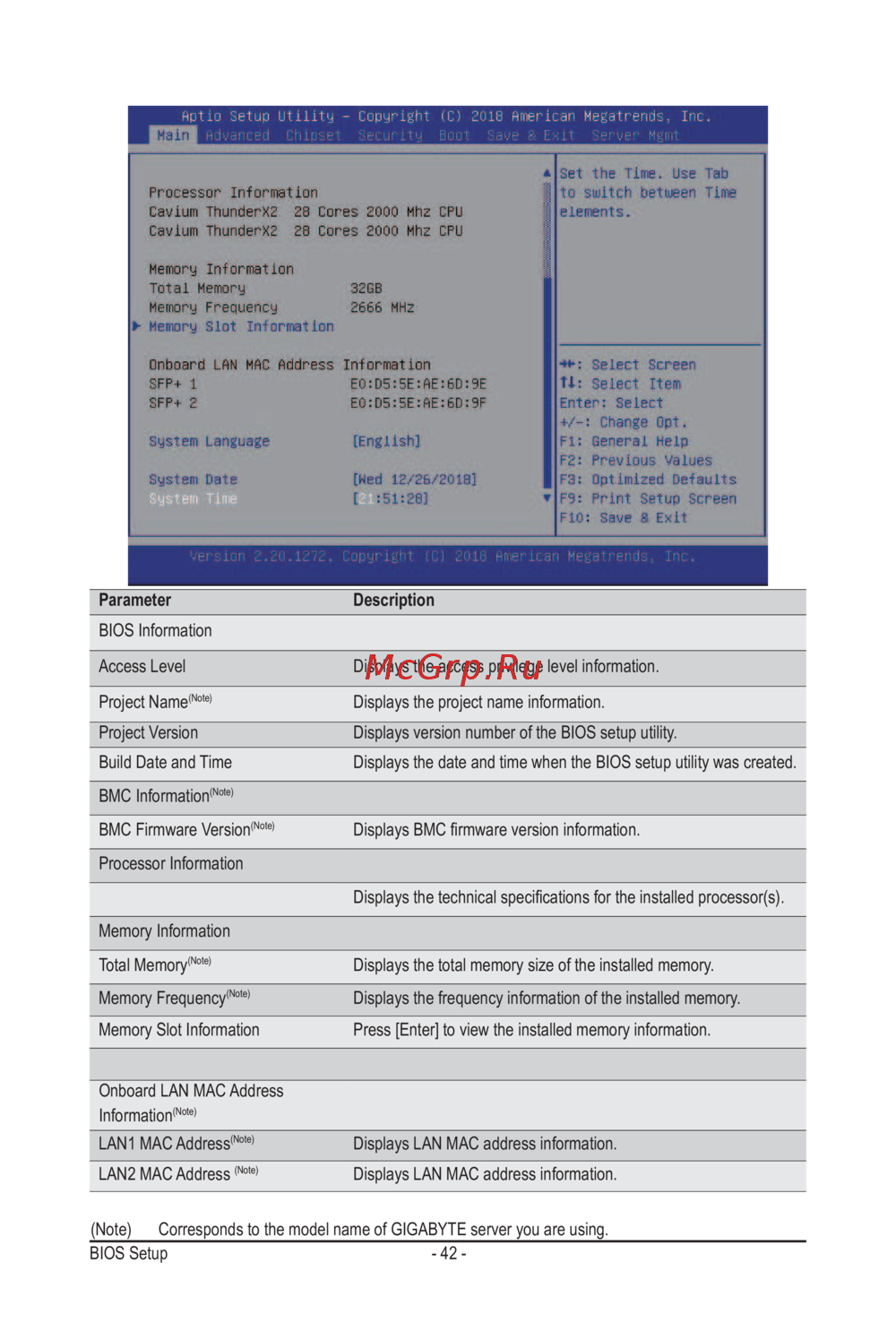

Parameter Description

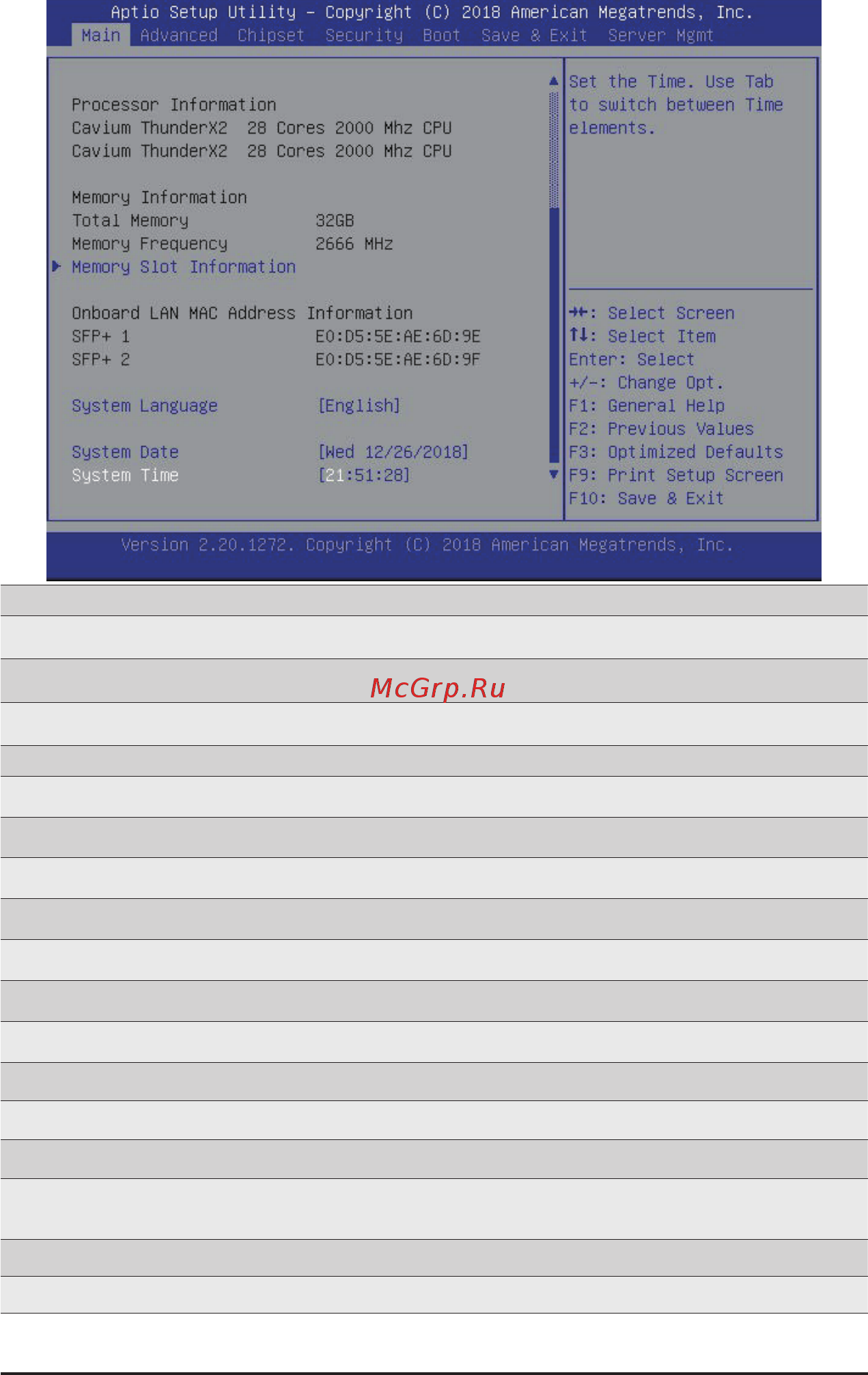

BIOS Information
Access Level Displays the access privilege level information.
Project Name
(Note)
Displays the project name information.
Project Version Displays version number of the BIOS setup utility.
Build Date and Time Displays the date and time when the BIOS setup utility was created.
BMC Information
(Note)
BMC Firmware Version
(Note)
Displays BMC rmware version information.
Processor Information
Displays the technical specications for the installed processor(s).
Memory Information
Total Memory
(Note)
Displays the total memory size of the installed memory.
Memory Frequency
(Note)
Displays the frequency information of the installed memory.
Memory Slot Information Press [Enter] to view the installed memory information.
Onboard LAN MAC Address
Information
(Note)
LAN1 MAC Address
(Note)
Displays LAN MAC address information.
LAN2 MAC Address
(Note)
Displays LAN MAC address information.
