Gigabyte R281-T94 (rev. 100) [45/68] 2 1 trusted computing

- 45 - BIOS Setup

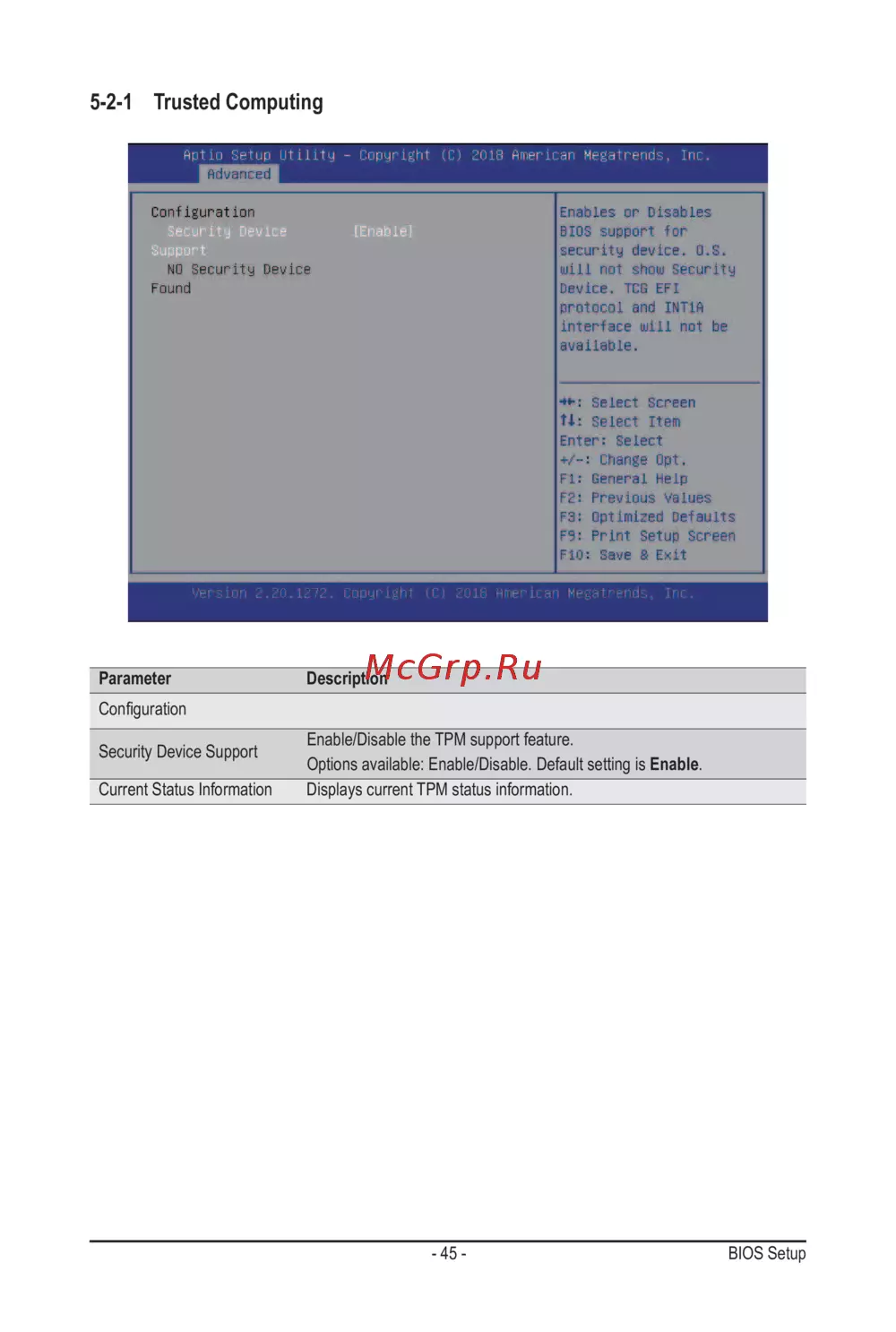

5-2-1 Trusted Computing

Parameter Description

Conguration

Security Device Support

Enable/Disable the TPM support feature.

Options available: Enable/Disable. Default setting is Enable.

Current Status Information Displays current TPM status information.
