BIOS Setup - 46 -

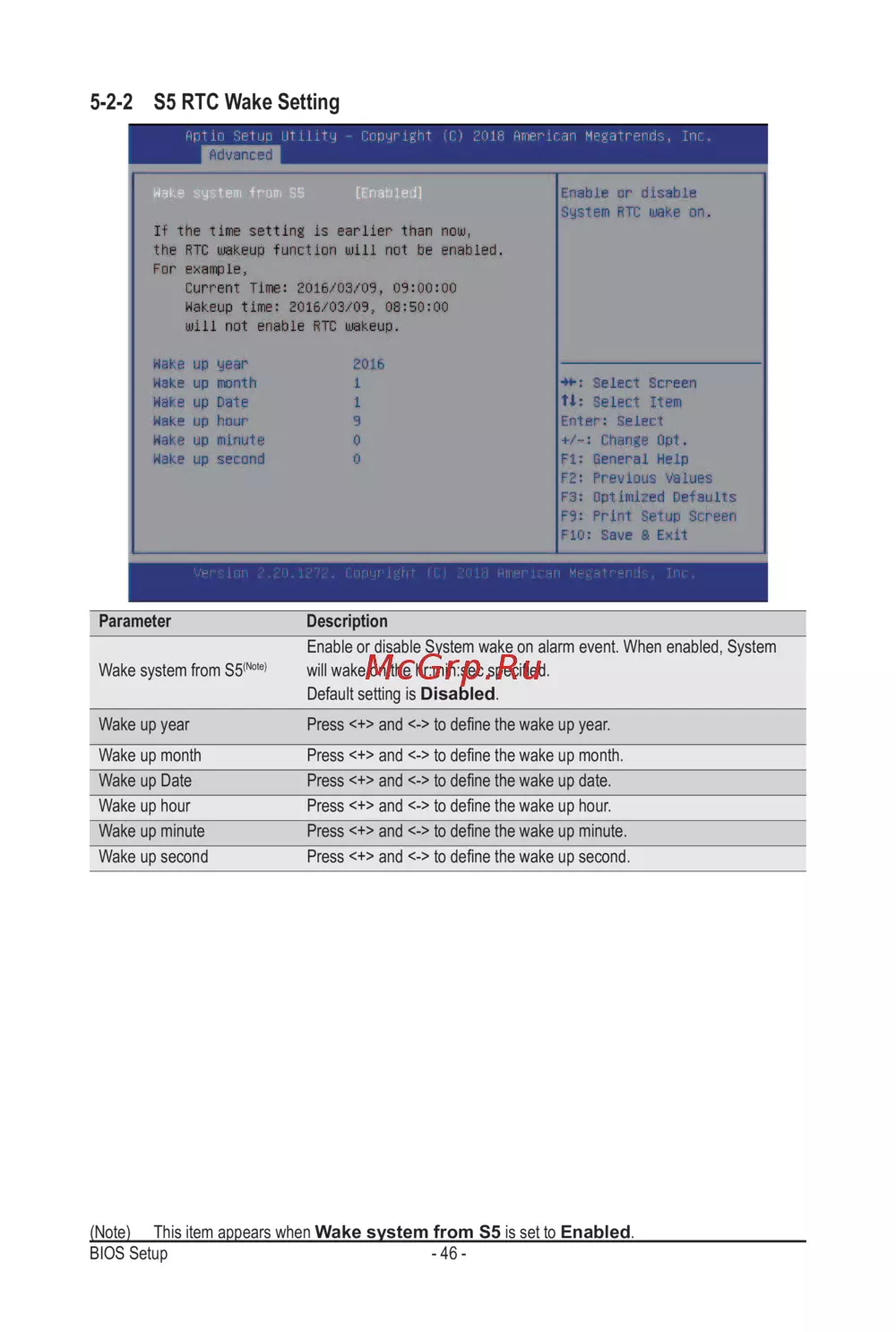

5-2-2 S5 RTC Wake Setting

Parameter Description

Wake system from S5

(Note)

Enable or disable System wake on alarm event. When enabled, System

will wake on the hr:min:sec specied.

Default setting is Disabled.

Wake up year Press <+> and <-> to dene the wake up year.

Wake up month Press <+> and <-> to dene the wake up month.

Wake up Date Press <+> and <-> to dene the wake up date.

Wake up hour Press <+> and <-> to dene the wake up hour.

Wake up minute Press <+> and <-> to dene the wake up minute.

Wake up second Press <+> and <-> to dene the wake up second.

(Note) This item appears when Wake system from S5 is set to Enabled.
