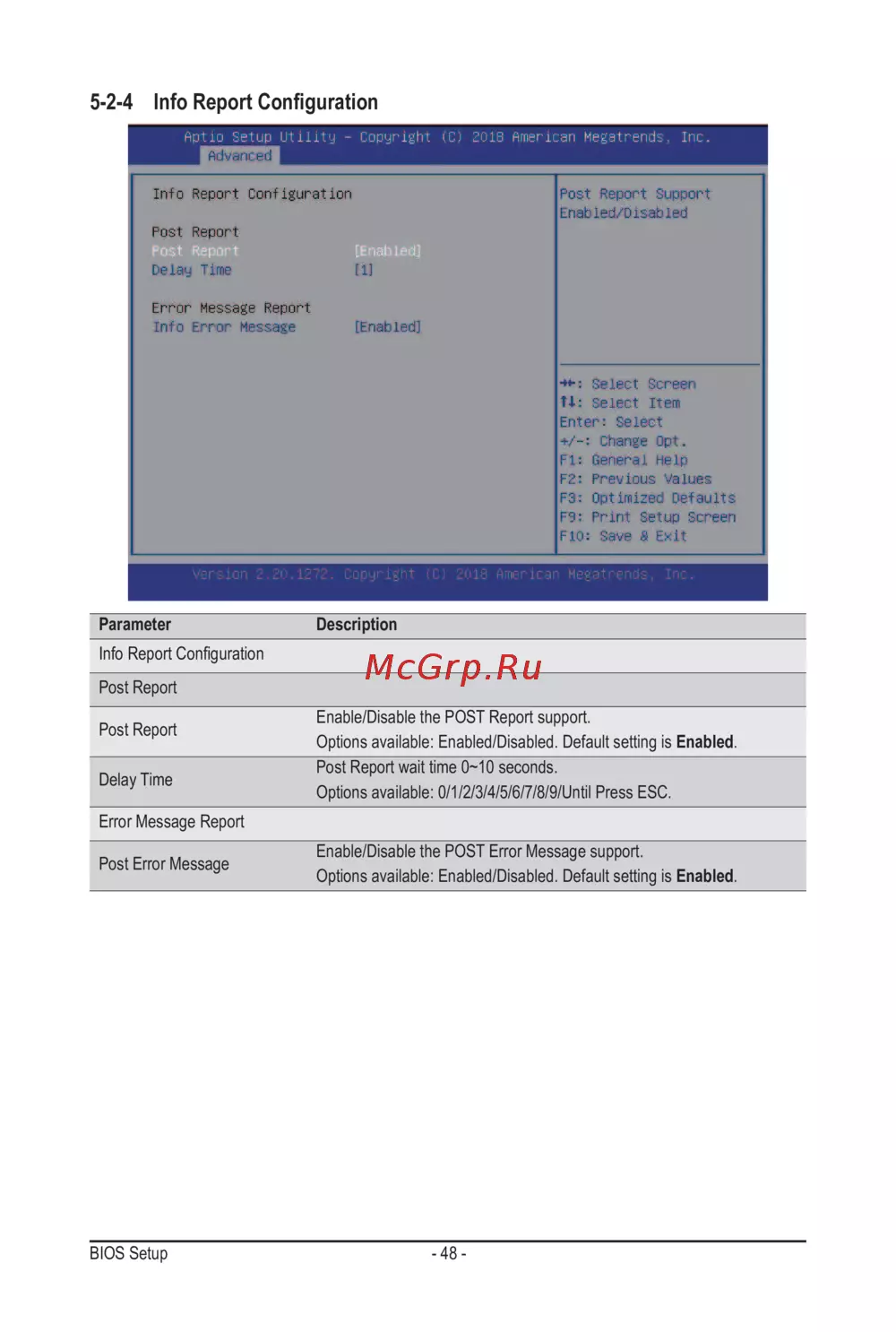

5-2-4 Info Report Conguration

Parameter Description

Info Report Conguration

Post Report

Enable/Disable the POST Report support.

Options available: Enabled/Disabled. Default setting is Enabled.

Delay Time

Post Report wait time 0~10 seconds.

Options available: 0/1/2/3/4/5/6/7/8/9/Until Press ESC.

Error Message Report

Post Error Message

Enable/Disable the POST Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
