Gigabyte R281-T94 (rev. 100) [50/68] 2 6 sata configuration

BIOS Setup - 50 -

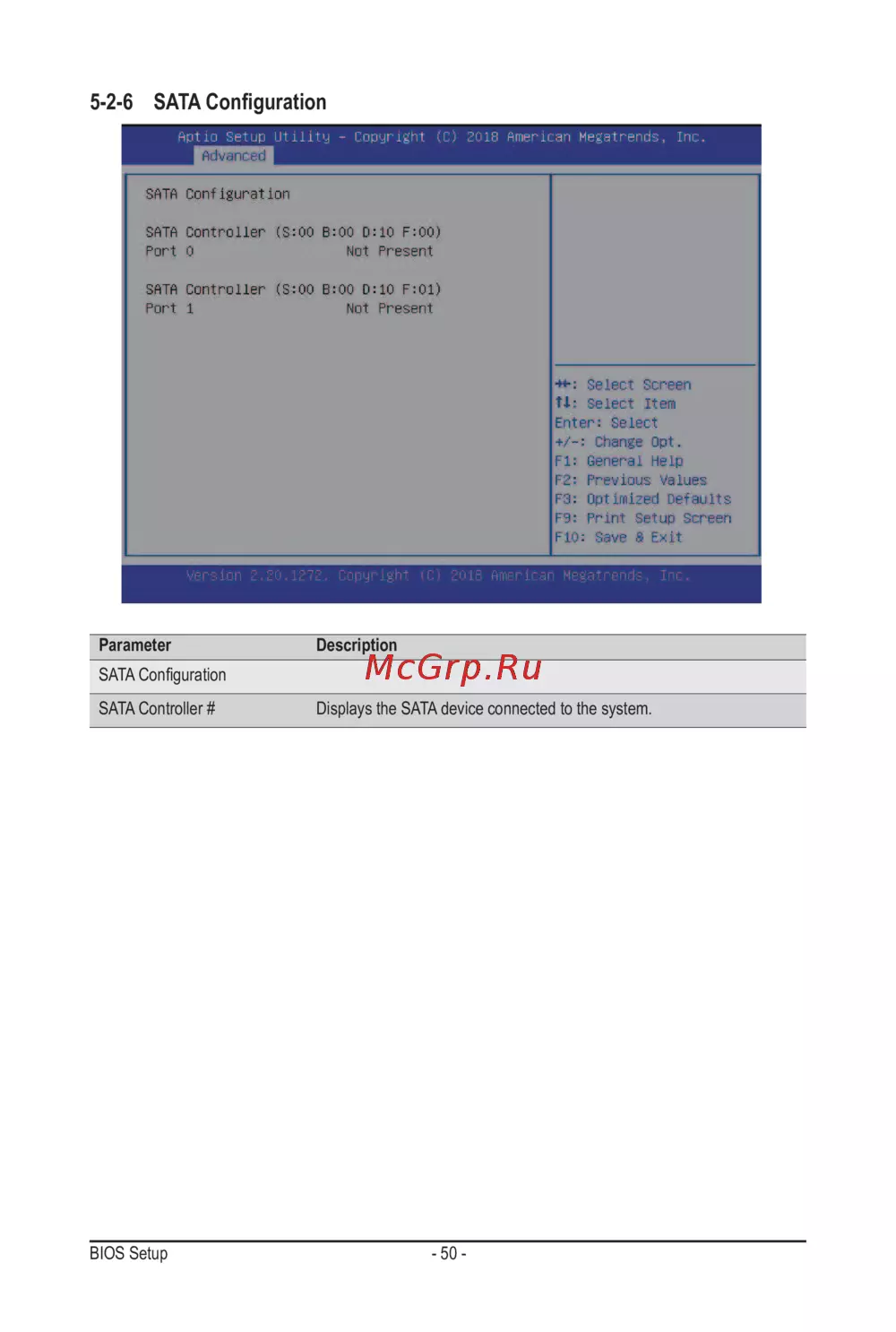

5-2-6 SATA Conguration

Parameter Description

SATA Conguration

SATA Controller # Displays the SATA device connected to the system.
