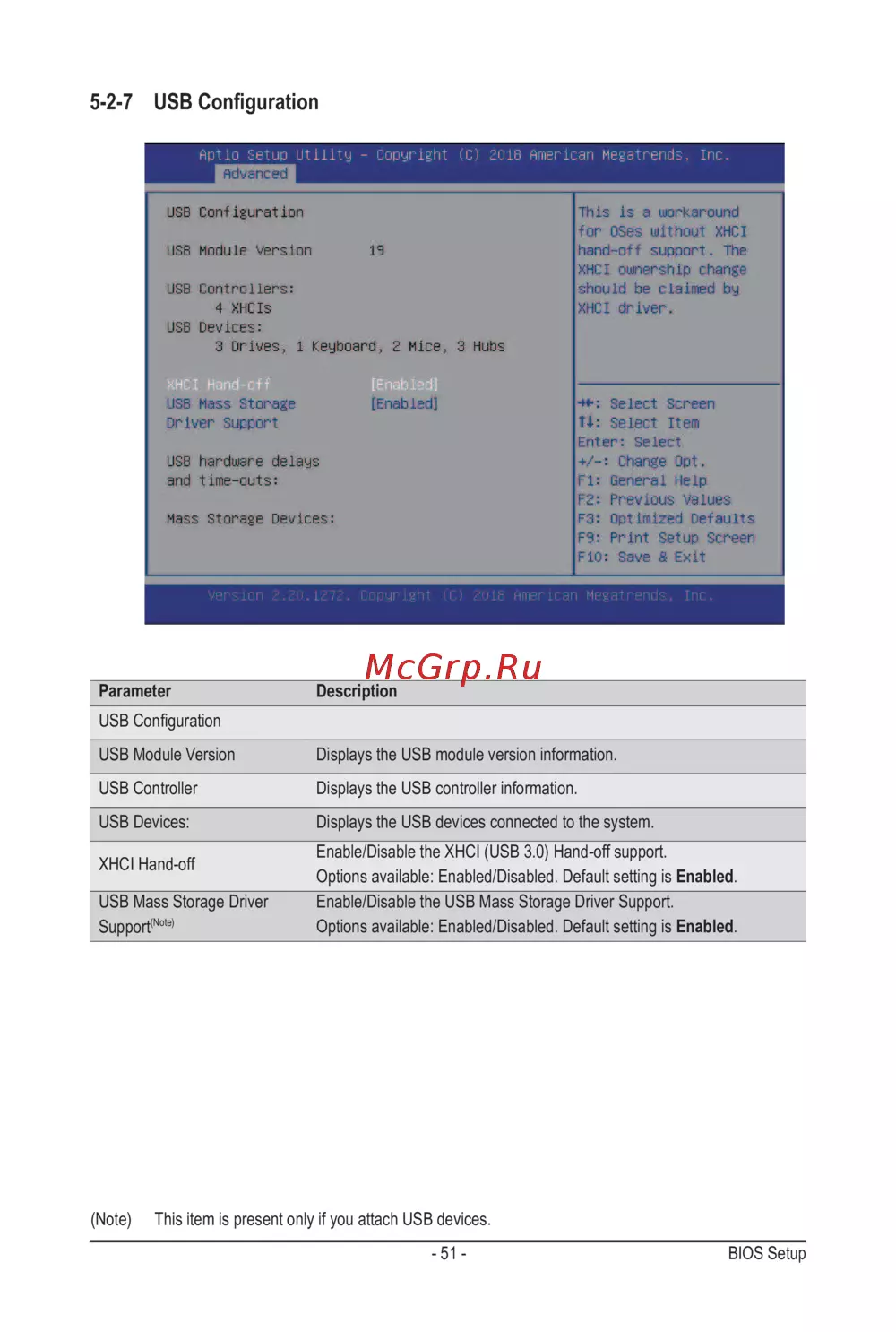

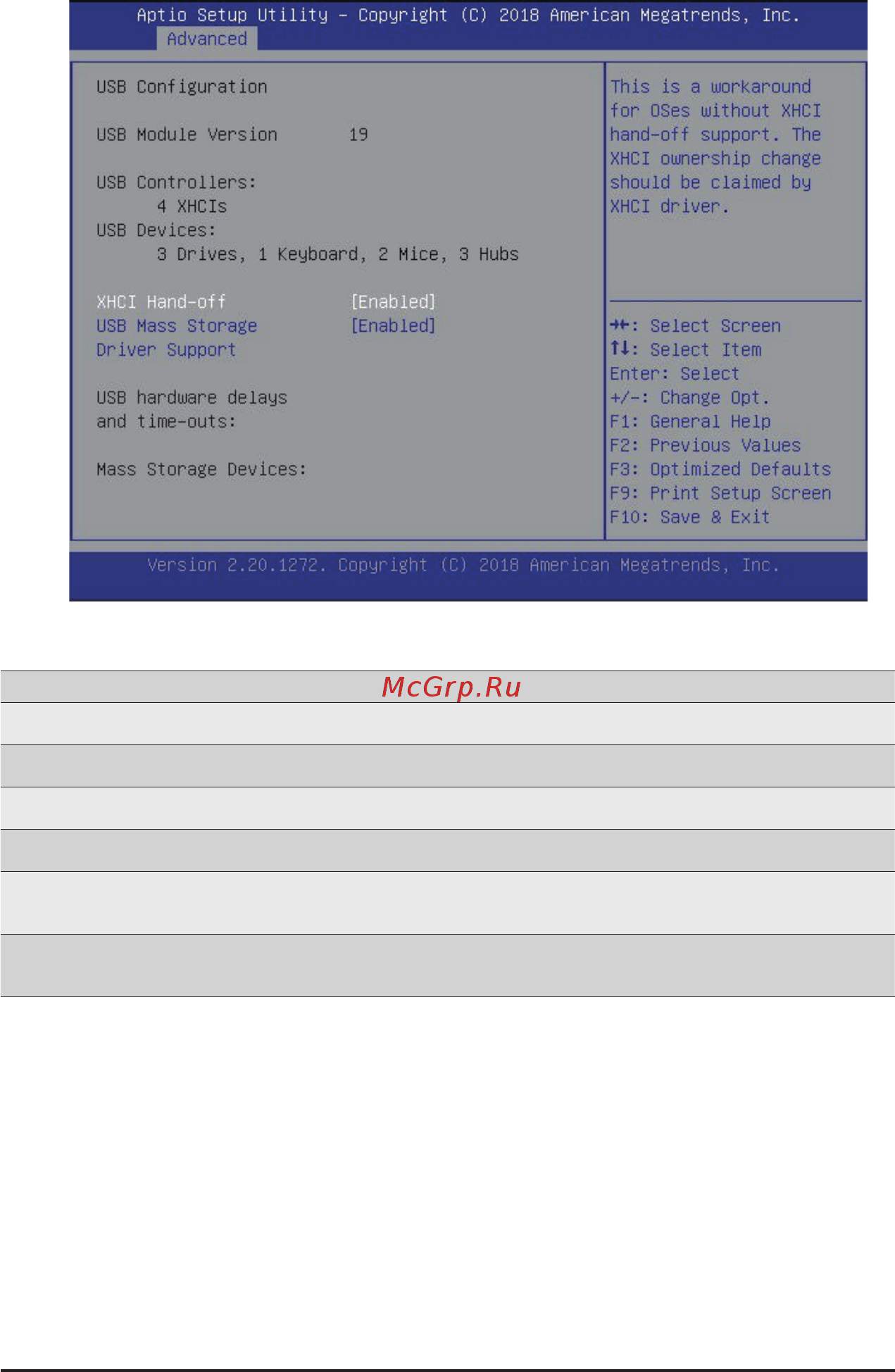

5-2-7 USB Conguration

(Note) This item is present only if you attach USB devices.

Parameter Description

USB Conguration

USB Module Version Displays the USB module version information.

USB Controller Displays the USB controller information.

USB Devices: Displays the USB devices connected to the system.

XHCI Hand-off

Enable/Disable the XHCI (USB 3.0) Hand-off support.

Options available: Enabled/Disabled. Default setting is Enabled.

USB Mass Storage Driver

Support

(Note)

Enable/Disable the USB Mass Storage Driver Support.

Options available: Enabled/Disabled. Default setting is Enabled.
