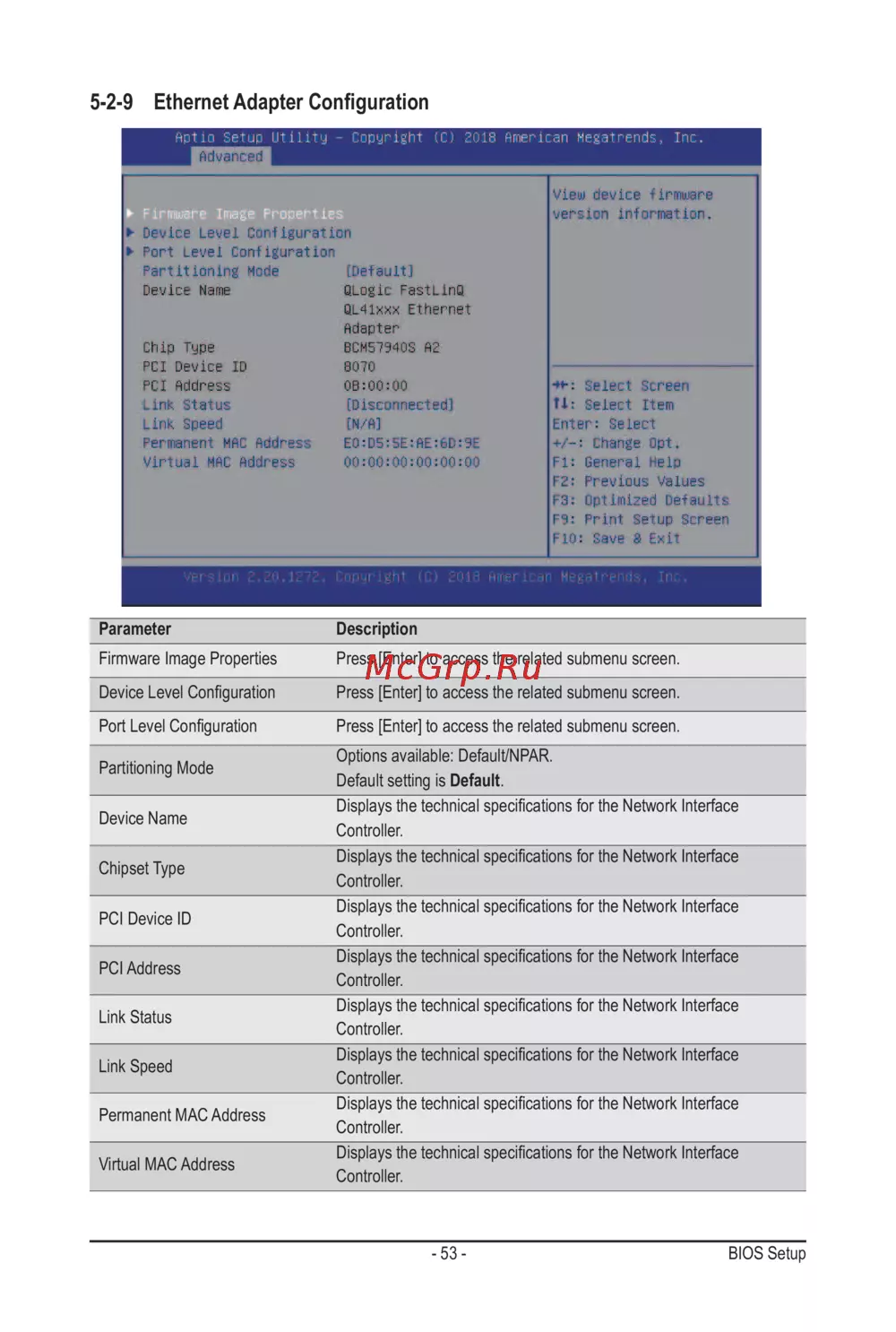

- 53 - BIOS Setup

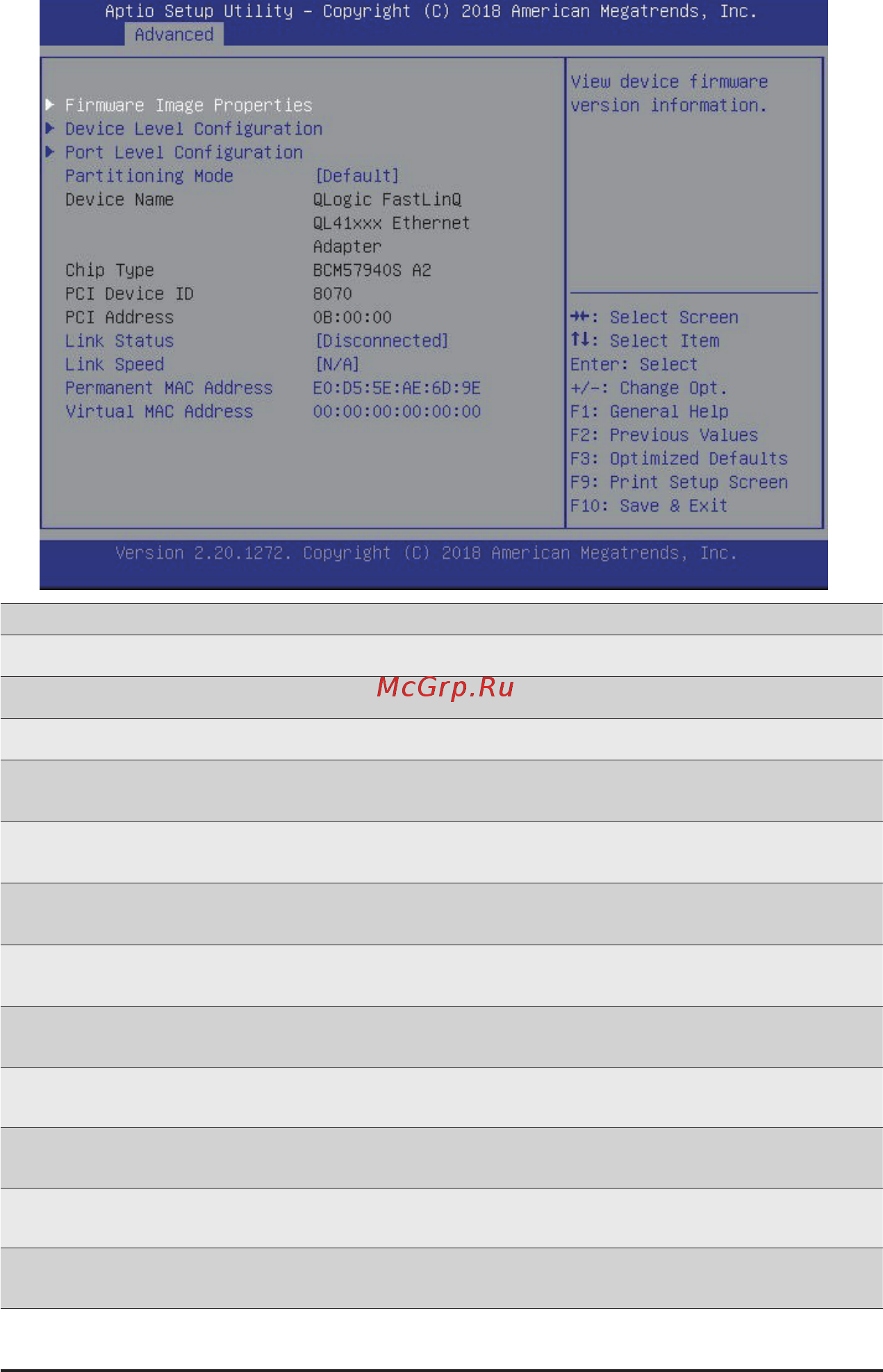

5-2-9 Ethernet Adapter Conguration
Parameter Description
Firmware Image Properties Press [Enter] to access the related submenu screen.
Device Level Conguration Press [Enter] to access the related submenu screen.
Port Level Conguration Press [Enter] to access the related submenu screen.
Partitioning Mode
Options available: Default/NPAR.
Default setting is Default.
Device Name
Displays the technical specications for the Network Interface
Controller.
Chipset Type
Displays the technical specications for the Network Interface
Controller.
PCI Device ID
Displays the technical specications for the Network Interface
Controller.
PCI Address
Displays the technical specications for the Network Interface
Controller.
Link Status
Displays the technical specications for the Network Interface
Controller.
Link Speed
Displays the technical specications for the Network Interface
Controller.
Permanent MAC Address
Displays the technical specications for the Network Interface
Controller.
Virtual MAC Address
Displays the technical specications for the Network Interface
Controller.
