BIOS Setup - 54 -

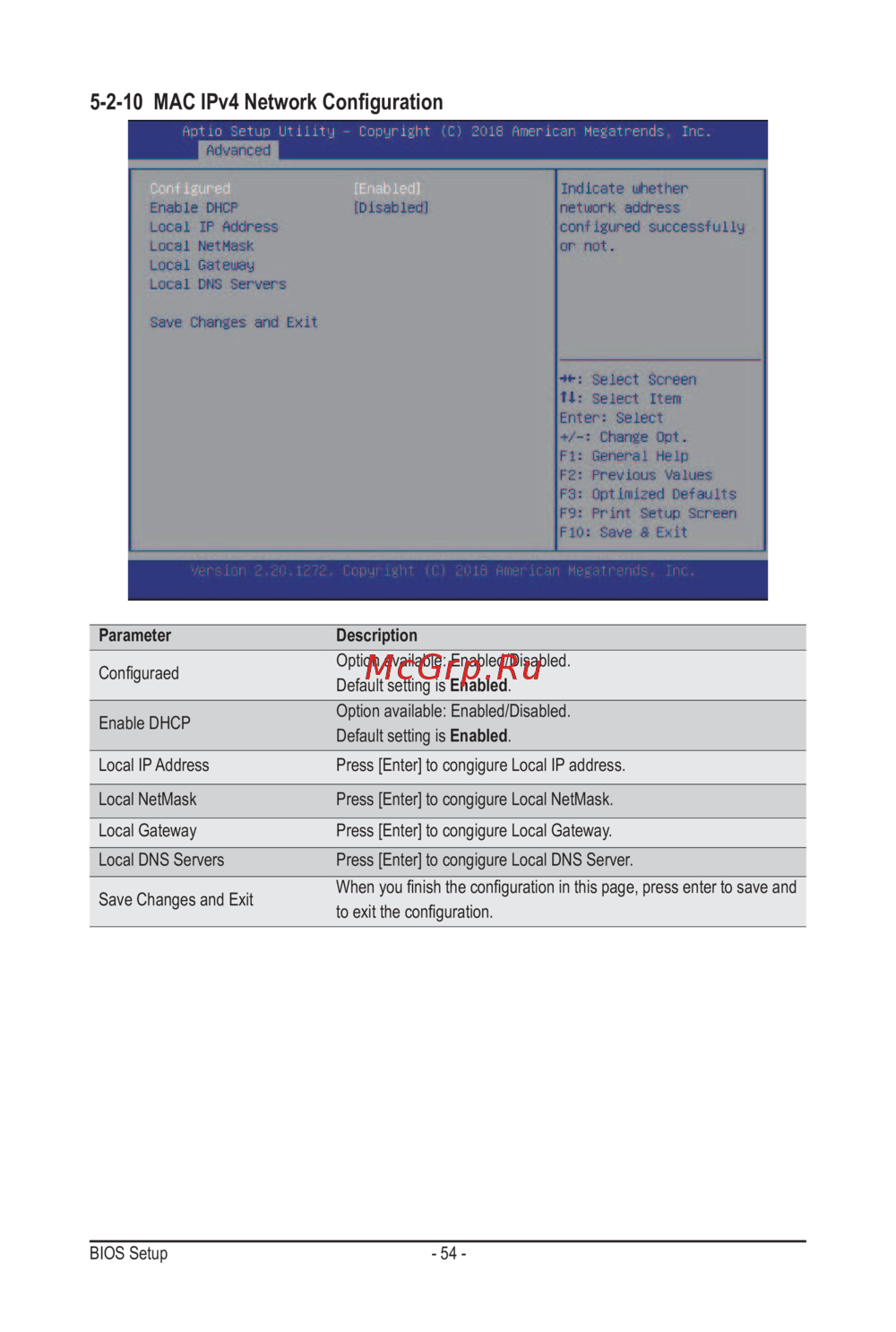

5-2-10 MAC IPv4 Network Conguration

Parameter Description

Conguraed

Option available: Enabled/Disabled.

Default setting is Enabled.

Enable DHCP

Option available: Enabled/Disabled.

Default setting is Enabled.

Local IP Address Press [Enter] to congigure Local IP address.

Local NetMask Press [Enter] to congigure Local NetMask.

Local Gateway Press [Enter] to congigure Local Gateway.

Local DNS Servers Press [Enter] to congigure Local DNS Server.

Save Changes and Exit

When you nish the conguration in this page, press enter to save and

to exit the conguration.
