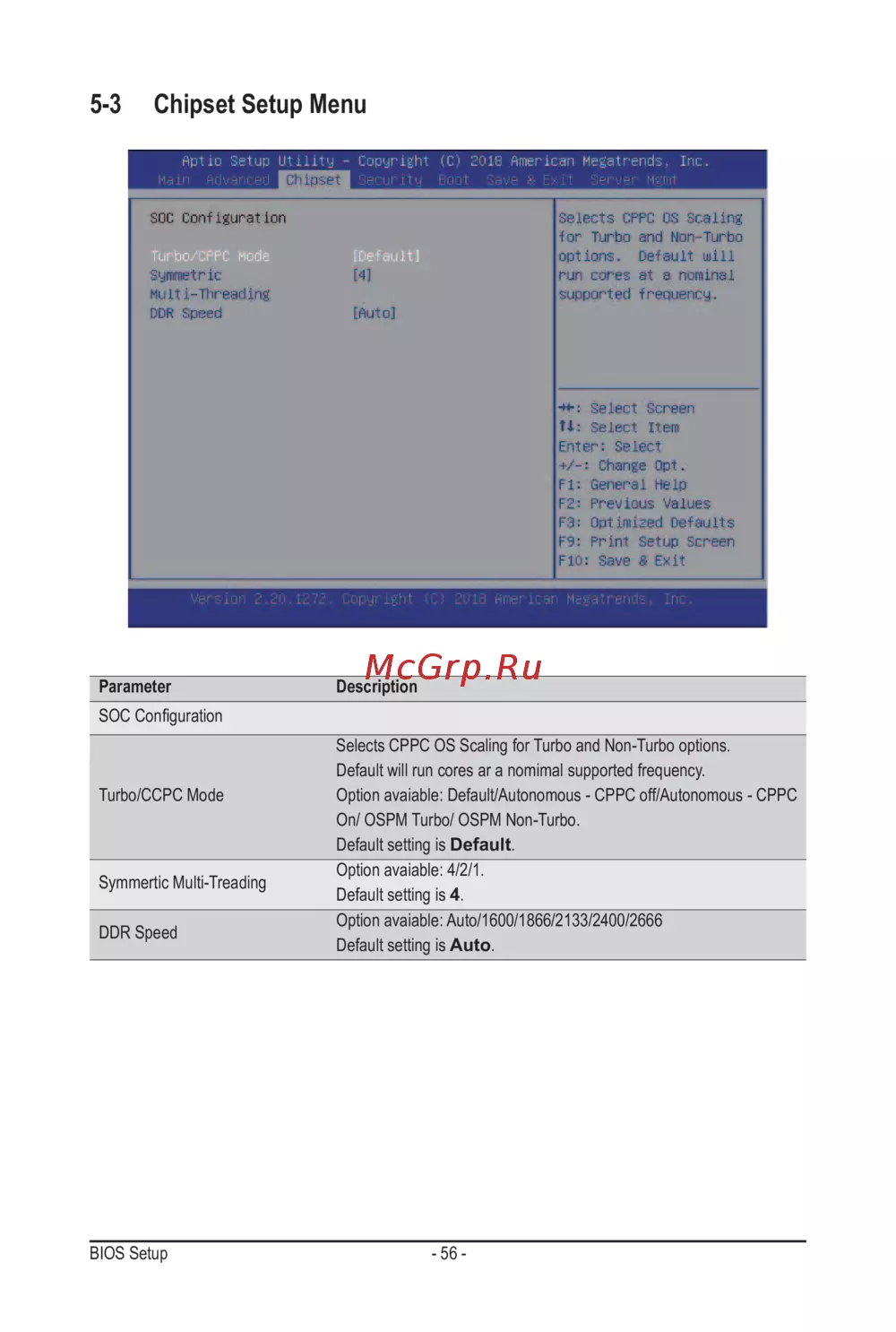

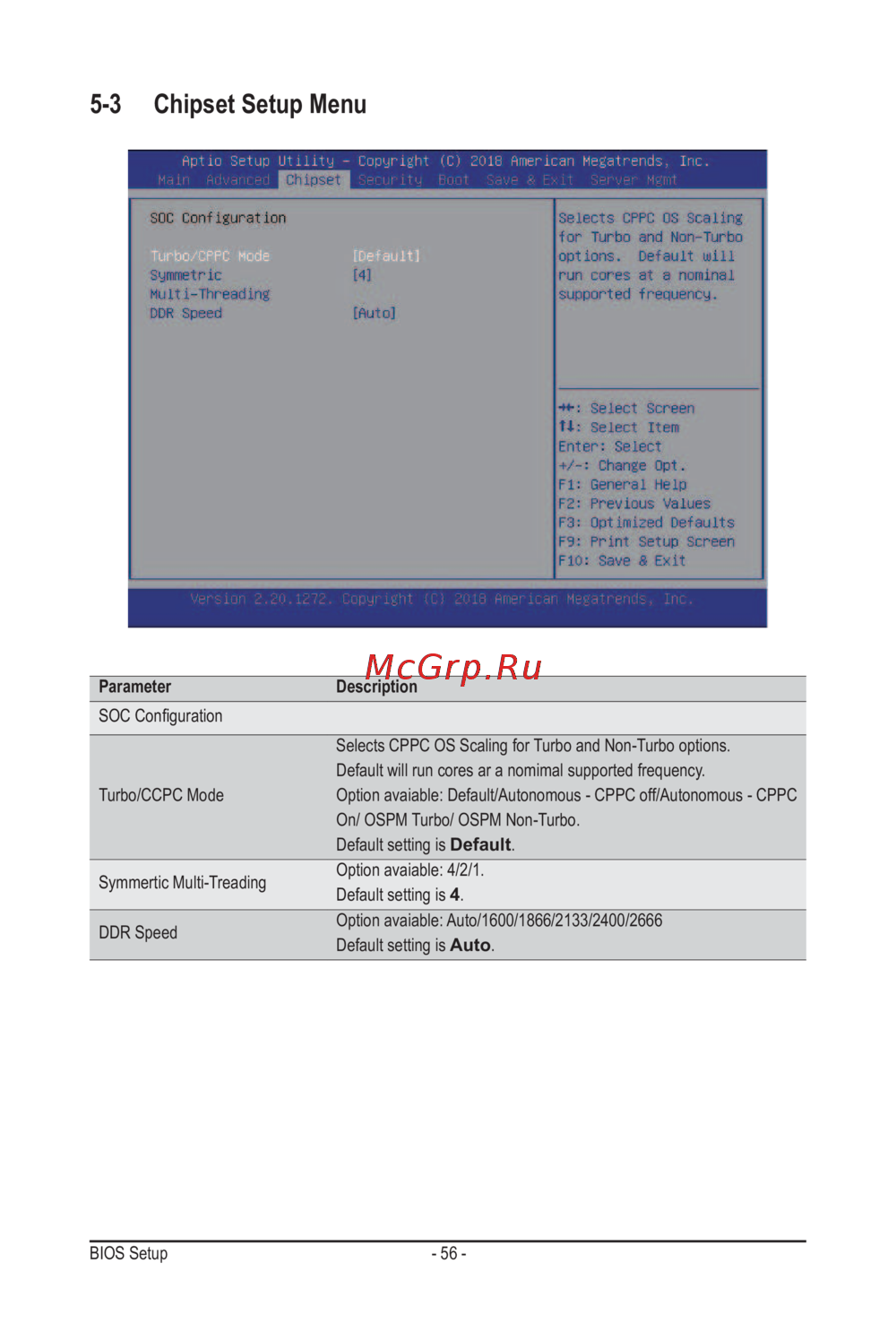

5-3 Chipset Setup Menu

Parameter Description

SOC Conguration

Turbo/CCPC Mode

Selects CPPC OS Scaling for Turbo and Non-Turbo options.

Default will run cores ar a nomimal supported frequency.

Option avaiable: Default/Autonomous - CPPC off/Autonomous - CPPC

On/ OSPM Turbo/ OSPM Non-Turbo.

Default setting is Default.

Symmertic Multi-Treading

Option avaiable: 4/2/1.

Default setting is 4.

DDR Speed

Option avaiable: Auto/1600/1866/2133/2400/2666

Default setting is Auto.
