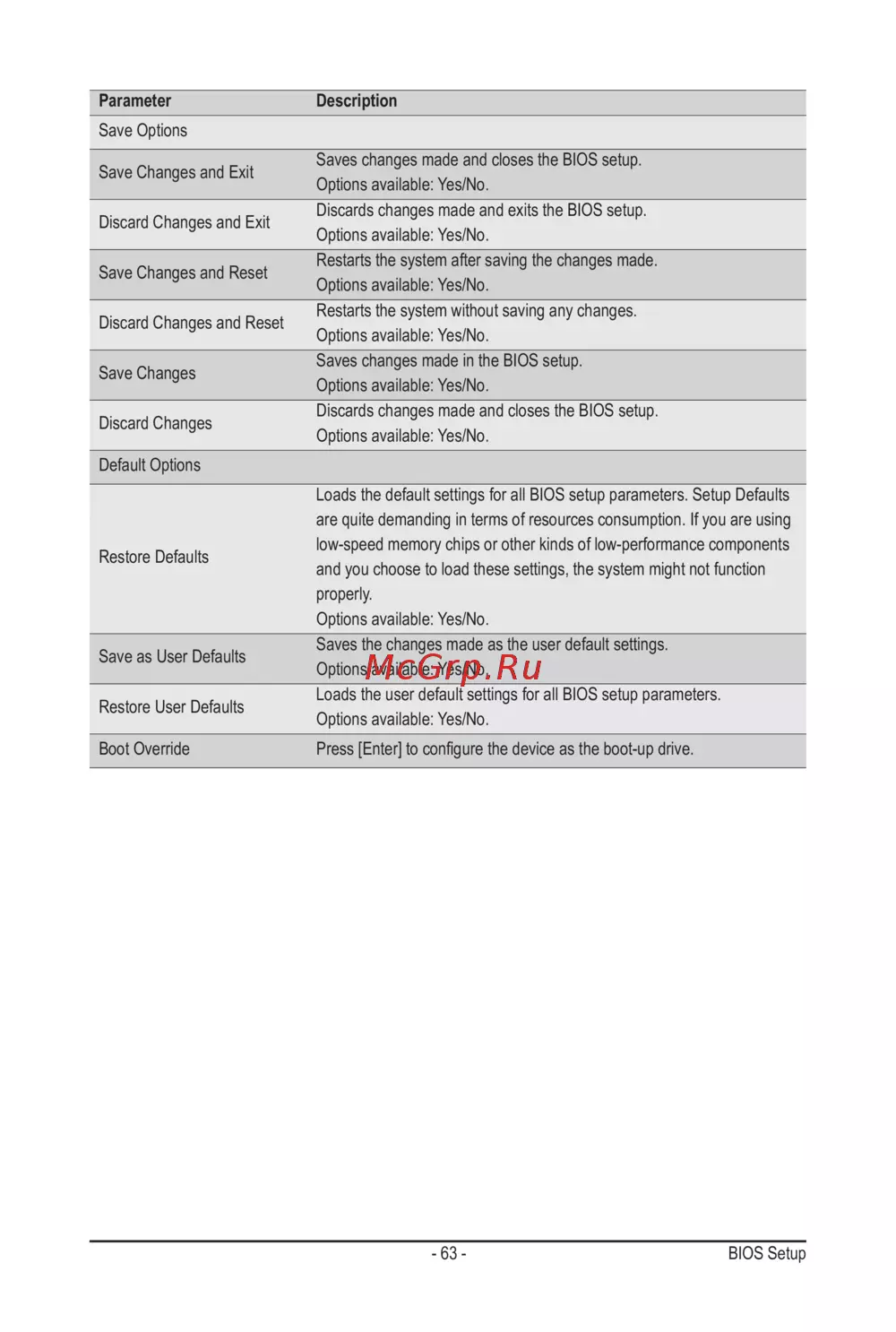

- 63 - BIOS Setup
Parameter Description
Save Options
Save Changes and Exit
Saves changes made and closes the BIOS setup.
Options available: Yes/No.
Discard Changes and Exit
Discards changes made and exits the BIOS setup.
Options available: Yes/No.
Save Changes and Reset
Restarts the system after saving the changes made.
Options available: Yes/No.
Discard Changes and Reset
Restarts the system without saving any changes.
Options available: Yes/No.
Save Changes
Saves changes made in the BIOS setup.
Options available: Yes/No.
Discard Changes
Discards changes made and closes the BIOS setup.
Options available: Yes/No.
Default Options
Restore Defaults
Loads the default settings for all BIOS setup parameters. Setup Defaults
are quite demanding in terms of resources consumption. If you are using
low-speed memory chips or other kinds of low-performance components
and you choose to load these settings, the system might not function
properly.
Options available: Yes/No.
Save as User Defaults
Saves the changes made as the user default settings.
Options available: Yes/No.
Restore User Defaults
Loads the user default settings for all BIOS setup parameters.
Options available: Yes/No.
Boot Override Press [Enter] to congure the device as the boot-up drive.
