Gigabyte R281-T94 (rev. 100) [64/68] 7 server management menu

BIOS Setup - 64 -

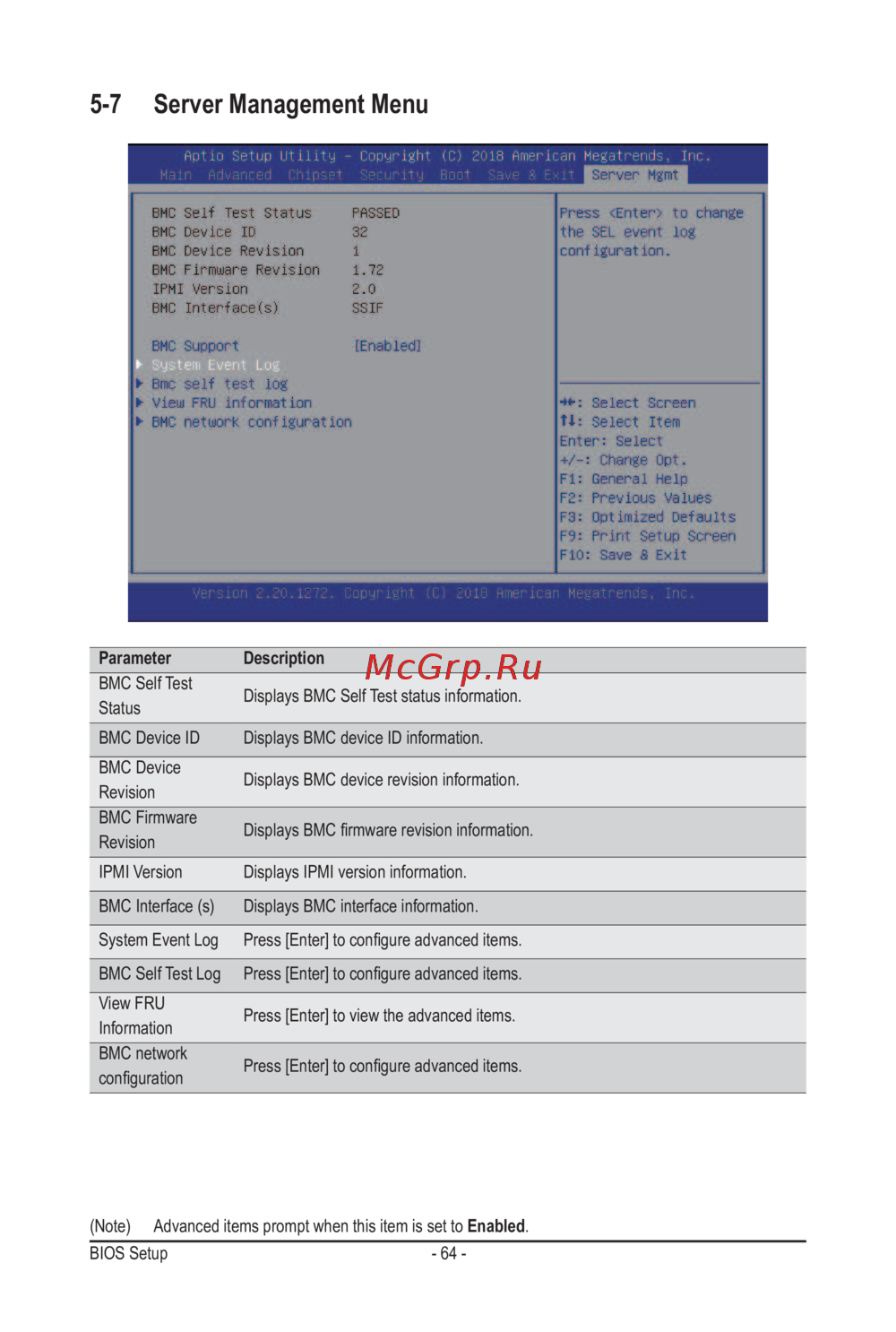

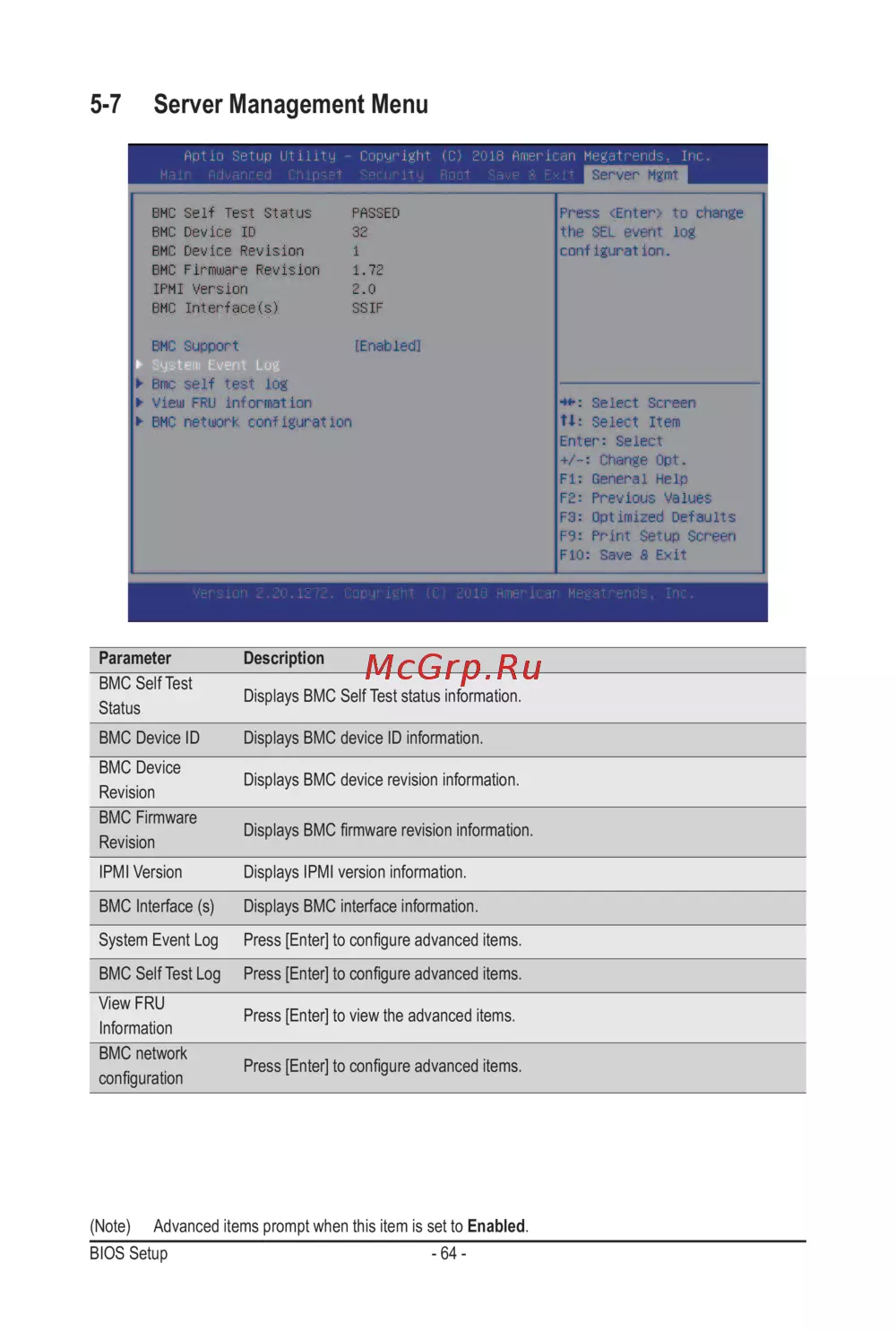

5-7 Server Management Menu

(Note) Advanced items prompt when this item is set to Enabled.

Parameter Description

BMC Self Test

Status

Displays BMC Self Test status information.

BMC Device ID Displays BMC device ID information.

BMC Device

Revision

Displays BMC device revision information.

BMC Firmware

Revision

Displays BMC rmware revision information.

IPMI Version Displays IPMI version information.

BMC Interface (s) Displays BMC interface information.

System Event Log Press [Enter] to congure advanced items.

BMC Self Test Log Press [Enter] to congure advanced items.

View FRU

Information

Press [Enter] to view the advanced items.

BMC network

conguration

Press [Enter] to congure advanced items.
